Load cells are essential components in various industries, from manufacturing to aerospace, playing a crucial role in measuring force and weight. Whether you're an engineer, a hobbyist, or simply curious about the inner workings of these devices, understanding how to build a load cell can provide valuable insights into force measurement technology. This comprehensive guide will walk you through the process of constructing a load cell, covering everything from materials and design to calibration and troubleshooting.
Before diving into the construction process, it's important to grasp what a load cell is and how it functions. A load cell is a transducer that converts a mechanical force into an electrical signal. This conversion is typically achieved through the use of strain gauges, which change their electrical resistance when subjected to force.Load cells come in various types, including:
1. Strain gauge load cells
2. Hydraulic load cells
3. Pneumatic load cells
4. Capacitive load cells
For this guide, we'll focus on building a strain gauge load cell, as it's the most common type used in industrial and commercial applications.
To build a basic strain gauge load cell, you'll need the following materials:
1. Metal beam or plate (e.g., aluminum or steel)
2. Strain gauges
3. Adhesive for strain gauges
4. Wires
5. Soldering iron and solder
6. Multimeter
7. Wheatstone bridge circuit components
8. Amplifier (e.g., HX711 module for Arduino projects)
9. Microcontroller (e.g., Arduino)
10. Protective coating (e.g., silicone sealant)
When selecting materials, consider the intended application of your load cell. For instance, aluminum is lightweight and suitable for lower capacity load cells, while steel is more robust and better suited for higher capacity applications.
The design of your load cell will significantly impact its performance. Key factors to consider include:
1. Load capacity: Determine the maximum force your load cell needs to measure.
2. Sensitivity: Consider the smallest force increment you need to detect.
3. Environmental factors: Account for temperature variations, humidity, and potential exposure to chemicals.
4. Mounting options: Design appropriate mounting points for your specific application.
A common design for DIY load cells is the bending beam type. This design involves attaching strain gauges to a metal beam that flexes under applied force.
1. Prepare the metal beam:
- Cut the metal to the desired size and shape.
- Clean the surface thoroughly to ensure proper adhesion of the strain gauges.
2. Attach the strain gauges:
- Mark the positions where the strain gauges will be placed.
- Apply a thin layer of adhesive to these positions.
- Carefully place the strain gauges and allow the adhesive to cure according to the manufacturer's instructions.
3. Wire the strain gauges:
- Solder wires to the strain gauge terminals.
- Arrange the strain gauges in a Wheatstone bridge configuration for temperature compensation and increased sensitivity.
4. Connect to the amplifier:
- If using an HX711 module, connect the Wheatstone bridge outputs to the module's inputs.
- Connect the HX711 module to your microcontroller (e.g., Arduino) following the manufacturer's pinout diagram.
5. Program the microcontroller:
- Write code to read the amplified signal from the HX711 module.
- Implement calibration routines to convert the raw signal into meaningful force or weight measurements.
6. Protect the load cell:
- Apply a protective coating over the strain gauges and wiring to shield them from environmental factors.

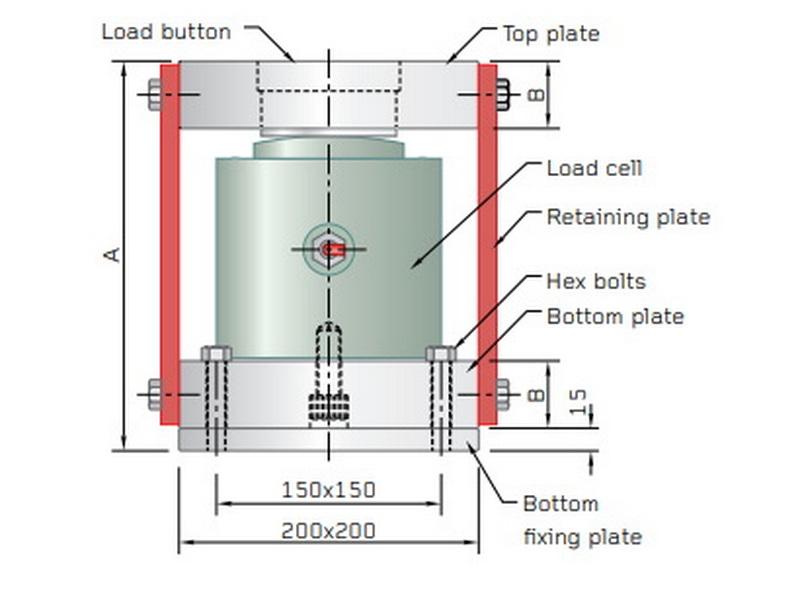

7. Mount the load cell:
- Secure the load cell in its intended application, ensuring proper alignment and force distribution.
Calibration is crucial for ensuring the accuracy of your load cell. Follow these steps to calibrate your DIY load cell:
1. Zero calibration:
- With no load applied, adjust your system to read zero.
2. Span calibration:
- Apply a known weight or force to the load cell.
- Adjust your system's gain to match the known weight.
3. Linearity check:
- Test the load cell with multiple known weights across its range.
- Verify that the output is linear and adjust if necessary.
4. Temperature compensation:
- If possible, test the load cell at different temperatures and implement software compensation if needed.
DIY load cells can be used in various applications, including:
1. Digital scales
2. Force measurement in robotics
3. Material testing equipment
4. Industrial process control
5. Agricultural equipment (e.g., grain hoppers)
The versatility of load cells makes them valuable in both professional and hobbyist projects.
Even with careful construction, you may encounter issues with your DIY load cell. Here are some common problems and their solutions:
1. Drift:
- Cause: Temperature changes or creep in materials.
- Solution: Implement temperature compensation and allow for warm-up time before use.
2. Nonlinearity:
- Cause: Poor strain gauge placement or overloading.
- Solution: Verify strain gauge positions and ensure the load cell is not used beyond its designed capacity.
3. Hysteresis:
- Cause: Material properties or mechanical design issues.
- Solution: Use higher quality materials and optimize the load cell's mechanical design.
4. Noise:
- Cause: Electrical interference or poor connections.
- Solution: Use shielded cables, improve grounding, and check all connections.
5. Sensitivity to off-axis loads:
- Cause: Improper mounting or design flaws.
- Solution: Ensure proper alignment and consider redesigning for better force isolation.
Building a load cell is a rewarding project that combines mechanical engineering, electronics, and signal processing. By following this guide, you can create a functional load cell for various applications. Remember that precision and attention to detail are key to achieving accurate and reliable force measurements. As you gain experience, you can refine your design and construction techniques to create more sophisticated load cells tailored to specific needs.
A: A strain gauge is a component used within a load cell. The strain gauge measures the deformation of the load cell's structure, while the load cell as a whole converts this deformation into a usable electrical signal representing force or weight.
A: While DIY load cells can be functional, they typically lack the certification and quality control required for commercial use. For commercial applications, it's best to use professionally manufactured and certified load cells to ensure accuracy and reliability.
A: To improve accuracy, focus on using high-quality materials, precise strain gauge placement, proper temperature compensation, and thorough calibration. Additionally, consider using multiple strain gauges in a full Wheatstone bridge configuration for better sensitivity and temperature stability.
A: DIY load cells may have lower accuracy, reduced long-term stability, and less resistance to environmental factors compared to commercial load cells. They also lack standardized testing and certification, which can be crucial in certain applications.
A: The calibration frequency depends on the application and environmental conditions. As a general rule, calibrate your DIY load cell at least once every few months or whenever you notice inconsistencies in measurements. For critical applications, more frequent calibration may be necessary.
