Digital load cells are essential components in modern measurement systems, providing precise and reliable data for various applications. They convert mechanical force into an electrical signal, which can be processed and displayed digitally. This article will guide you through the process of building a digital load cell platform, focusing on the necessary components, wiring, calibration, and applications.
A load cell is a transducer that converts force or weight into an electrical signal. The most common type is the strain gauge load cell, which measures the deformation of a material under load. Load cells are widely used in industrial applications, including weighing scales, force measurement, and material testing.
There are several types of load cells, including:

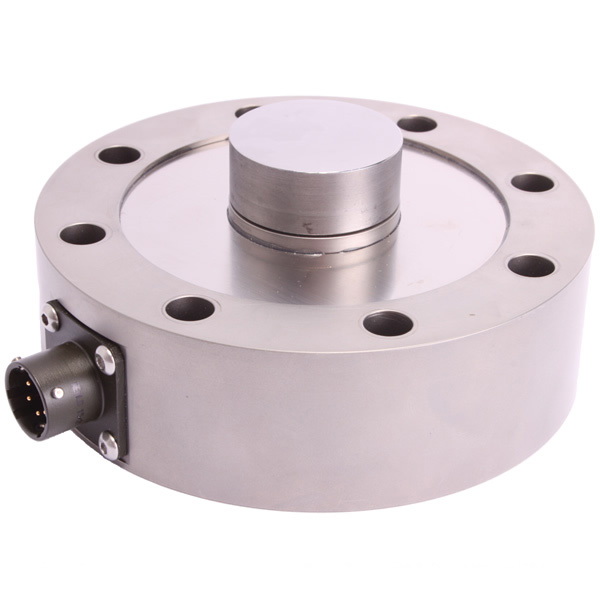

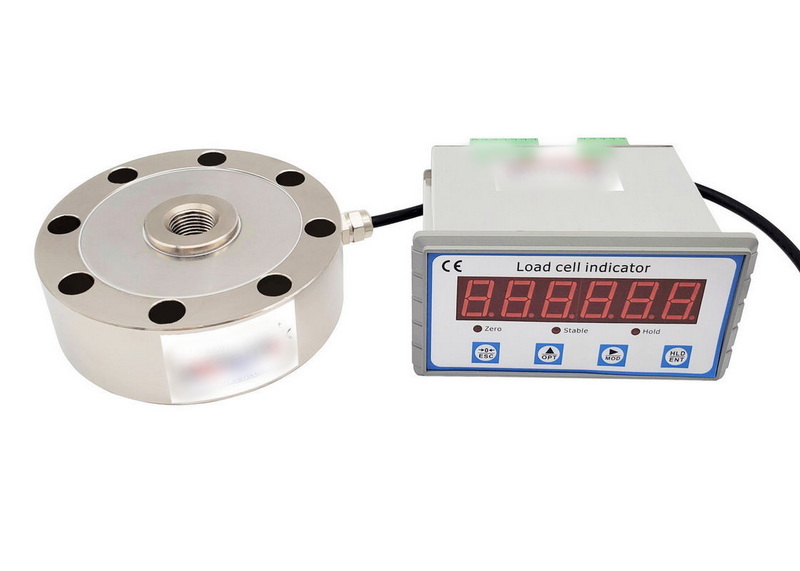

- Compression Load Cells: Used for measuring compressive forces.
- Tension Load Cells: Designed to measure tensile forces.
- Shear Beam Load Cells: Commonly used in platform scales.
To build a digital load cell platform, you will need the following components:
- Load Cell: The primary sensor for measuring weight.
- HX711 Amplifier: A precision analog-to-digital converter that amplifies the load cell's signal.
- Arduino Board: A microcontroller that processes the data from the HX711.
- Breadboard and Jumper Wires: For making connections between components.
- Power Supply: To power the Arduino and HX711.
Each component plays a crucial role in the system. The load cell detects the weight, the HX711 amplifies the signal, and the Arduino processes the data to provide a readable output.
Before starting, ensure you have a clean and organized workspace. Gather all the necessary components and tools, including a soldering iron, if needed.
1. Connect the load cell wires to the HX711 according to the color coding:
- Red: Excitation+
- Black: Excitation-
- White: Signal+
- Green: Signal-
2. Ensure all connections are secure to prevent signal loss.
1. Connect the HX711 to the Arduino using the following pins:
- VCC to 5V
- GND to Ground
- DT (Data) to a digital pin (e.g., D2)
- SCK (Clock) to another digital pin (e.g., D3)
1. Open the Arduino IDE and write the code to read data from the HX711. You can find sample codes online that demonstrate how to interface the HX711 with Arduino.
2. Upload the code to the Arduino board.
Calibration is crucial for ensuring accurate measurements. Follow these steps:
1. Place a known weight on the load cell.
2. Adjust the calibration factor in your code until the output matches the known weight.
3. Repeat the process with different weights to ensure accuracy across the range.
After calibration, test the setup with various known weights. If the readings are inconsistent, check the wiring and connections. Common issues include:
- Loose connections
- Incorrect calibration factor
- Faulty components
Digital load cells are used in various industries, including:
- Manufacturing: For quality control and material testing.
- Food Industry: In packaging and portion control.
- Healthcare: For weighing patients and medical supplies.
- Logistics: In weighing shipments and inventory management.
The benefits of using digital load cells include higher accuracy, faster data processing, and easier integration with digital systems.
Building a digital load cell platform is a rewarding project that enhances your understanding of measurement technology. By following the steps outlined in this article, you can create a reliable system for measuring weight and force, applicable in various fields.

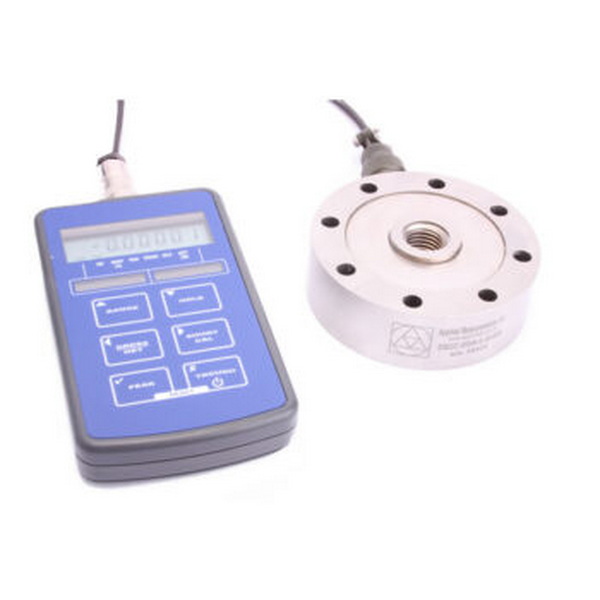

A digital load cell is an electronic sensor that converts mechanical force into a digital signal, providing precise weight measurements.
To calibrate a load cell, apply known weights and adjust the calibration factor in your code until the output matches the known values.
Load cells are commonly used in industrial weighing, material testing, packaging, and healthcare.
Yes, load cells can measure both weight and force, depending on the application.
Analog load cells output a continuous voltage signal, while digital load cells convert the signal to a digital format for easier processing and integration.
This article provides a comprehensive guide to building a digital load cell platform, ensuring you have the knowledge and resources to successfully complete your project.
