Load cell calibration is a critical process that ensures the accuracy and reliability of weight measurements in various applications. A load cell is a transducer that converts force into an electrical signal, and calibration is the process of adjusting the output of the load cell to match a known standard. This article will explore the methods, procedures, and best practices for load cell calibration, emphasizing its importance in maintaining measurement accuracy.

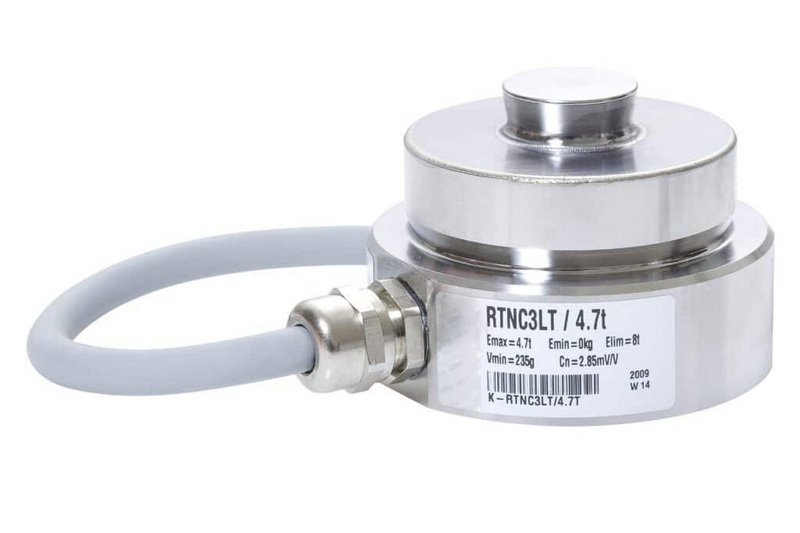

A load cell is a device used to measure weight or force. It operates on the principle of converting mechanical force into an electrical signal. Load cells are widely used in industrial applications, including weighing scales, material testing, and force measurement.
There are several types of load cells, including:
- Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation.
- Hydraulic Load Cells: These use fluid pressure to measure force.
- Pneumatic Load Cells: These operate on the principle of air pressure.
- Capacitive Load Cells: These measure changes in capacitance to determine force.
Calibration methods can vary based on the application and the type of load cell. The most common methods include deadweight calibration, zero calibration, and shunt calibration.
Deadweight calibration is considered the most accurate method. It involves applying known weights to the load cell and adjusting its output signal to match the applied force. This method is often used in laboratory settings where precision is paramount.
Zero calibration involves adjusting the load cell's output signal to zero when no force is applied. This step is crucial to ensure that the load cell provides accurate readings when measuring actual loads.
Shunt calibration is a method used primarily for strain gauge load cells. It involves using a precision resistor to simulate a known load, allowing for quick adjustments to the load cell's output.
1. Preparation: Gather all necessary tools, including weights, calibration software, and measurement devices.
2. Initial Setup: Install the load cell in a stable environment, ensuring it is free from vibrations and temperature fluctuations.
3. Zero Adjustment: Perform a zero calibration to ensure the load cell reads zero when no load is applied.
4. Apply Known Weights: Gradually apply known weights to the load cell, recording the output signal at each step.
5. Adjust Output: Compare the recorded output with the known weights and adjust the load cell's output signal accordingly.
6. Verification: After calibration, verify the accuracy by applying additional known weights and checking the output.
- Calibration weights
- Load cell indicator
- Calibration software
- Data acquisition system
Temperature, humidity, and vibrations can significantly affect load cell performance. It is essential to calibrate load cells in a controlled environment to minimize these effects.
Different load cells have varying specifications, including capacity, sensitivity, and linearity. Understanding these specifications is crucial for accurate calibration.
Establishing a routine calibration schedule is vital for maintaining accuracy. Depending on the application, load cells may need to be calibrated monthly, quarterly, or annually.
- Failing to perform zero calibration before applying loads.
- Using incorrect weights during calibration.
- Neglecting environmental factors that can affect readings.
Common signs of calibration errors include inconsistent readings, drift in output, and failure to return to zero. Regular checks can help identify these issues early.
- Re-calibrating the load cell if errors are detected.
- Ensuring that the load cell is installed correctly and free from mechanical stress.
- Regularly inspecting and maintaining calibration weights.
Load cell calibration is essential for ensuring accurate and reliable measurements in various applications. By understanding the methods and best practices for calibration, users can maintain the performance of their load cells and avoid costly errors. Regular calibration not only enhances measurement accuracy but also extends the lifespan of the equipment.
Load cell calibration ensures that the output signal from the load cell accurately reflects the applied force, allowing for reliable and consistent weight measurements.
The frequency of calibration depends on the application and usage. Generally, load cells should be calibrated at least once a year, but more frequent calibration may be necessary for critical applications.
Signs of a miscalibrated load cell include inconsistent readings, failure to return to zero, and significant deviations from expected measurements.
While it is possible to calibrate a load cell yourself, it is recommended to have it done by a professional to ensure accuracy and compliance with industry standards.
Failing to calibrate load cells can lead to inaccurate measurements, which can result in financial losses, safety hazards, and compromised product quality.
This article provides a comprehensive overview of load cell calibration, covering essential methods, procedures, and best practices to ensure accurate measurements.
