Load cells are essential components in various applications, particularly in weighing systems. They convert a force into an electrical signal, allowing for precise weight measurements. The HX711 is a popular 24-bit analog-to-digital converter (ADC) designed specifically for load cells, making it a go-to choice for hobbyists and professionals alike. Calibration is a crucial step in ensuring accurate measurements, as it aligns the output of the load cell with known weights.
A load cell is a transducer that converts mechanical force into an electrical signal. It is commonly used in scales and industrial applications to measure weight or force. Load cells come in various types, including strain gauge, hydraulic, and pneumatic, each suited for different applications.
◆ Strain Gauge Load Cells: The most common type, using strain gauges to measure deformation.
◆ Hydraulic Load Cells: Utilize fluid pressure to measure weight, suitable for heavy loads.
◆ Pneumatic Load Cells: Use air pressure, ideal for dynamic measurements.
Load cells operate on the principle of strain gauges, which change resistance when deformed. This change is converted into an electrical signal proportional to the applied force, allowing for accurate weight measurement.
The HX711 is a precision 24-bit ADC designed for weighing scales and industrial control applications. It features a low-noise amplifier and is capable of handling multiple load cells.
◆ 24-bit resolution: Provides high accuracy in weight measurements.
◆ Two differential inputs: Allows for connection of multiple load cells.
◆ Low power consumption: Ideal for battery-operated devices.
The HX711 is widely used in digital scales, industrial weighing systems, and DIY projects involving weight measurement.
◆ Load Cell
◆ HX711 Module
◆ Arduino Board
◆ Jumper Wires
◆ Breadboard (optional)

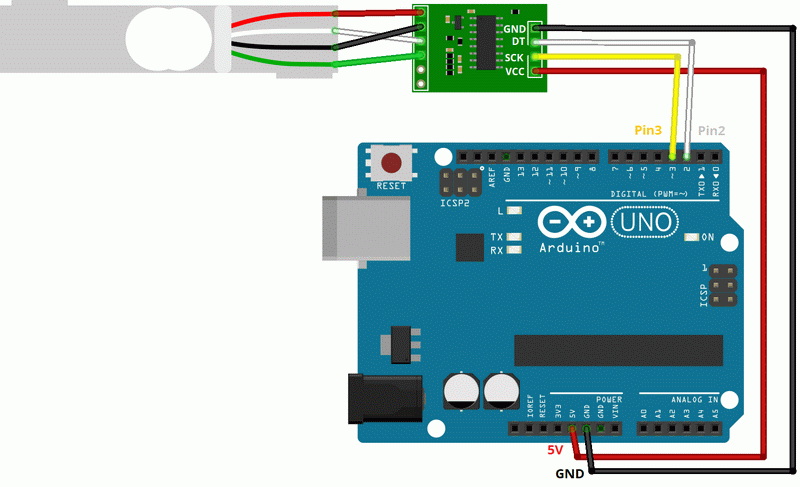

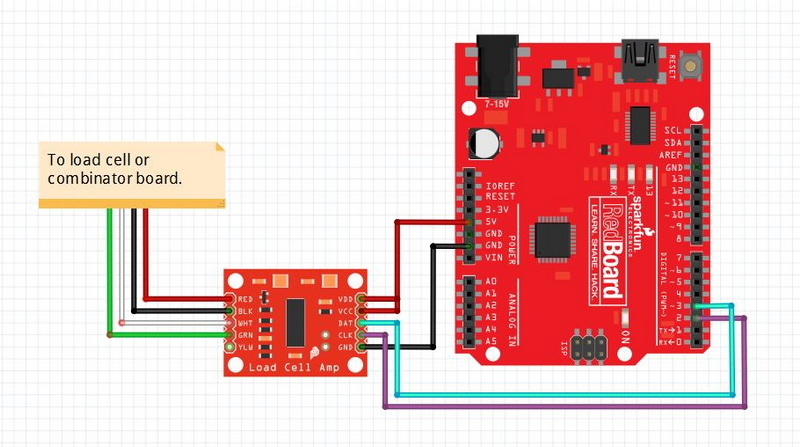

1. Connect the load cell to the HX711 module according to the wiring diagram.
2. Connect the HX711 to the Arduino using the appropriate pins (typically, DT and SCK).
Calibration ensures that the load cell provides accurate readings. Without calibration, the measurements may be off, leading to incorrect data.
1. Tare the Scale: Remove any weight from the load cell and set the reading to zero.
2. Apply a Known Weight: Place a weight of known value on the load cell.
3. Record the Reading: Note the output from the HX711.
4. Calculate the Calibration Factor: Use the formula:
5. Calibration Factor=Known WeightReading from HX711Calibration Factor=Reading from HX711Known Weight
6. Update the Code: Input the calibration factor into your Arduino code.
Using weights that are easy to measure (like 1 kg or 5 kg) can help ensure accuracy during the calibration process.
To interface the HX711 with Arduino, you will need the HX711 library. This can be installed via the Arduino Library Manager.
Once calibrated, the HX711 will provide accurate weight readings, which can be displayed on an LCD or sent to a computer for further analysis.
If the readings are not accurate, check the calibration factor and ensure that the load cell is properly connected.
Ensure all connections are secure and that the wiring matches the diagram.
Double-check the code for any syntax errors and ensure that the HX711 library is correctly installed.
Load cells are widely used in commercial and industrial scales, providing accurate weight measurements for various applications.
In manufacturing, load cells are used for quality control, ensuring that products meet weight specifications.
Hobbyists often use load cells in projects like smart scales, automated feeding systems, and more.
Calibrating a load cell with the HX711 module is a straightforward process that ensures accurate weight measurements. By understanding the components and following the calibration steps, you can create reliable weighing systems for various applications. As technology advances, the use of load cells will continue to grow, offering new possibilities in measurement and automation.
The maximum weight depends on the load cell's specifications. Common load cells can measure from a few grams to several tons.
Consider the weight range, accuracy, and application requirements when selecting a load cell.
Yes, the HX711 can be used with various microcontrollers, including ESP8266 and Raspberry Pi.
Common mistakes include not taring the scale, using incorrect weights, and not updating the calibration factor in the code.
Ensure proper calibration, minimize vibrations, and use high-quality components to enhance accuracy.
This article provides a comprehensive guide on calibrating a load cell with the HX711 module, ensuring you have the knowledge and resources to implement accurate weight measurement systems.
