Calibrating an OEM shaft tension sensor is crucial for ensuring accurate measurements in various industrial applications. This process involves adjusting the sensor to provide precise readings under different conditions. In this article, we will explore the steps and techniques required to calibrate an OEM shaft tension sensor effectively.

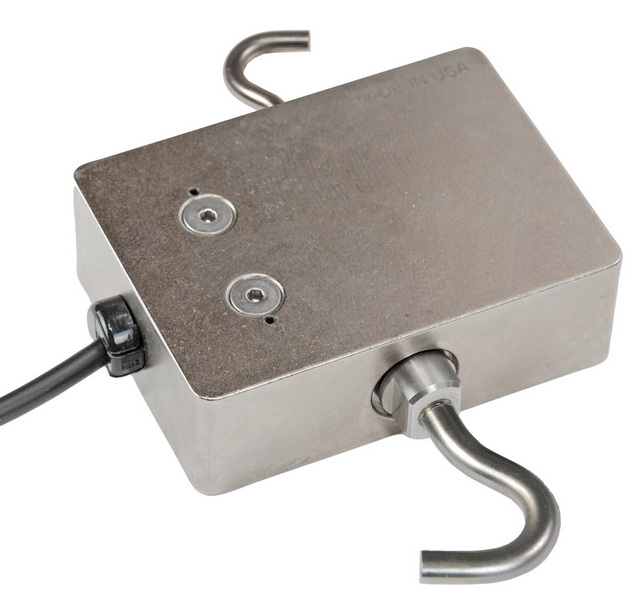

OEM shaft tension sensors are designed to measure the tension or torque in rotating shafts, which is essential for monitoring and controlling machinery performance. These sensors are often used in applications such as engine dynamometers, gearboxes, and conveyor systems. The accuracy of these sensors directly impacts the efficiency and reliability of the machinery.
Calibration is essential to ensure that the sensor provides accurate and reliable data. Without proper calibration, the sensor may produce incorrect readings, leading to potential machinery damage or inefficient operation. Calibration involves adjusting the sensor's output to match known reference values, ensuring that it operates within specified accuracy limits.

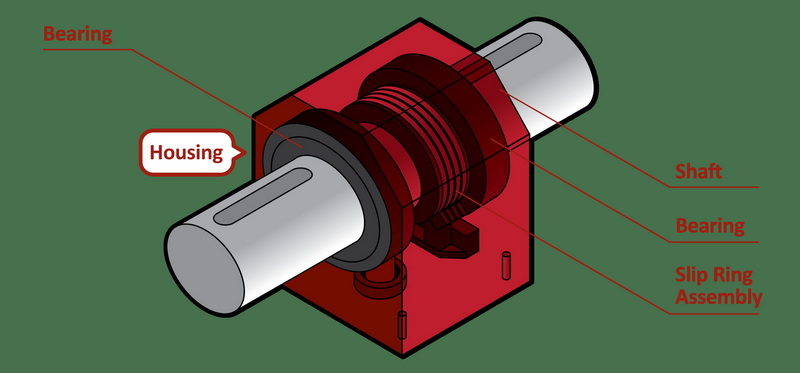

The calibration process typically involves several steps:
1. Preparation: Ensure the sensor is properly installed and connected to the necessary equipment, such as amplifiers and data acquisition systems.
2. Zero Point Adjustment: This involves setting the sensor's output to zero when no load is applied. This step is crucial for eliminating offset errors.
3. Gain Adjustment: After setting the zero point, the gain is adjusted to ensure that the sensor's output matches the expected voltage at full-scale load. This step corrects any sensitivity errors.
4. Mechanical Calibration: This involves applying known loads to the sensor and verifying that the output matches the expected values. Mechanical calibration often requires specialized equipment like lever arms and weights.
The TB2 reference torque transducer by HBM is an example of high-precision calibration equipment. It offers accuracy classes up to 0.03 and is suitable for laboratory and industrial applications.
- Procedure: Remove any covers to access the adjustment potentiometers. Use a digital multimeter to monitor the output voltage.
- Adjustment: Turn the zero point potentiometer until the output voltage reads exactly 0 V when the sensor is unloaded.
- Procedure: Apply a known load to the sensor, typically the full-scale load. Use a calibration device to ensure accuracy.
- Adjustment: Adjust the gain potentiometer until the output voltage matches the expected value, usually 10 V for full-scale load.
- Procedure: Use a lever arm and calibrated weights to apply known torques to the sensor. Record the output at each load point.
- Adjustment: Plot the calibration curve to verify linearity and adjust as necessary.
1. Use High-Quality Calibration Equipment: Ensure that all calibration tools are accurate and well-maintained.
2. Follow Manufacturer Guidelines: Always refer to the sensor manufacturer's calibration instructions for specific procedures.
3. Environmental Considerations: Perform calibration in a controlled environment to minimize temperature and vibration effects.
4. Regular Maintenance: Regularly check and recalibrate sensors to maintain accuracy over time.
- Vibration and Misalignment: Ensure proper mounting and alignment to avoid torsional vibrations and misalignment issues.
- Environmental Factors: Temperature changes can affect sensor accuracy. Use temperature compensation if necessary.
Multi-point calibration involves applying multiple known loads to the sensor and adjusting the output to match expected values at each point. This method provides a more detailed calibration curve, ensuring accuracy across the sensor's operating range.
Dynamic calibration involves testing the sensor under operational conditions, such as varying speeds or loads. This method ensures that the sensor performs accurately in real-world scenarios.
Modern calibration often involves the use of specialized software and tools. These tools can automate the calibration process, provide real-time data analysis, and generate detailed calibration reports. Examples include data acquisition systems with built-in calibration software.

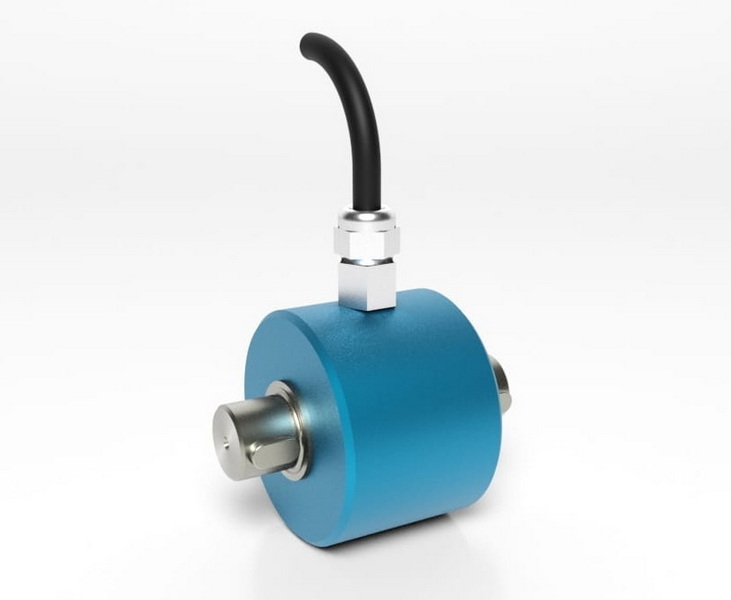

1. Mounting: Ensure the sensor is securely mounted to prevent movement or vibration during operation.
2. Cabling: Use high-quality cables and connectors to minimize signal noise and interference.
3. Environmental Protection: Protect the sensor from environmental factors such as moisture, dust, and extreme temperatures.
Calibrating an OEM shaft tension sensor is a critical process that requires careful attention to detail and adherence to established procedures. By following these guidelines and using appropriate calibration equipment, users can ensure that their sensors provide accurate and reliable data, optimizing machinery performance and safety.
The zero point adjustment ensures that the sensor's output is set to zero when no load is applied, eliminating offset errors and providing a baseline for accurate measurements.
Sensors should be recalibrated periodically, typically every year or when environmental conditions change significantly, to maintain accuracy and reliability.
Common calibration types include one-point, two-point, and multi-point calibrations. Two-point calibration is often recommended for correcting both offset and sensitivity errors.
Factors such as vibration, misalignment, temperature changes, and mechanical stress can affect sensor accuracy. Proper installation and regular maintenance are essential to mitigate these effects.
Mechanical calibration involves applying physical loads to verify sensor accuracy, while electrical calibration adjusts the sensor's electrical output to match expected values without physical loading.
