Load cells are essential components in various industries, providing accurate measurements of force and weight. Among the different types of load cells, button load cells are particularly valued for their compact design and high precision. However, to ensure that these devices function correctly, regular calibration is crucial. Calibration not only guarantees accuracy but also enhances the reliability of measurements, which is vital in applications ranging from industrial weighing to medical devices.
Button load cells are small, disc-shaped sensors designed to measure compressive forces. Their compact size makes them ideal for applications where space is limited, such as in medical devices, robotics, and industrial machinery. These load cells are known for their high accuracy and ability to withstand harsh environments. Understanding their characteristics is essential for effective calibration.
Calibrating a button load cell involves several steps to ensure that it provides accurate readings. The process typically includes:

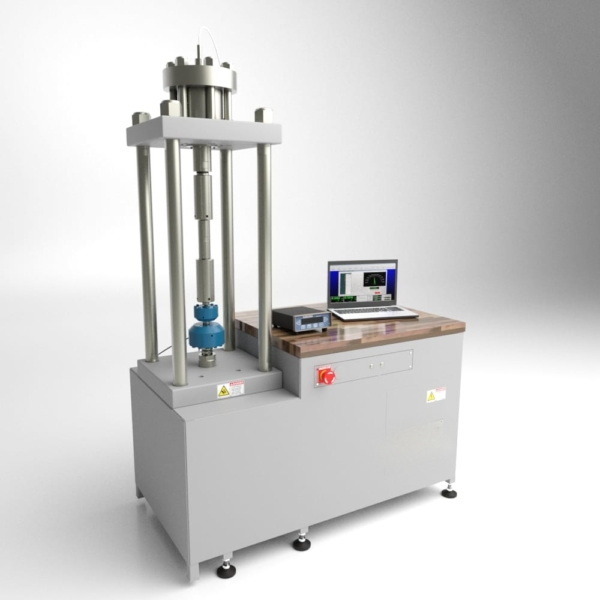

1. Preparation: Gather all necessary tools, including a calibration machine, weights, and alignment adapters.
2. Zeroing: Before applying any load, ensure that the load cell reads zero. This step is crucial for accurate measurements.
3. Applying Known Weights: Gradually apply known weights to the load cell and record the output. This data will help create a calibration curve.
4. Adjusting the Output: If the output does not match the expected values, adjustments must be made to align the readings with the known weights.
5. Verification: After adjustments, re-test the load cell with the known weights to verify accuracy.
There are several methods for calibrating load cells, each with its advantages and disadvantages:
- Deadweight Calibration: This method involves applying known weights to the load cell. It is considered the most accurate method but requires specialized equipment.
- Zero Calibration: This technique adjusts the load cell's output to zero when no load is applied. It is a simpler method but may not account for all inaccuracies.

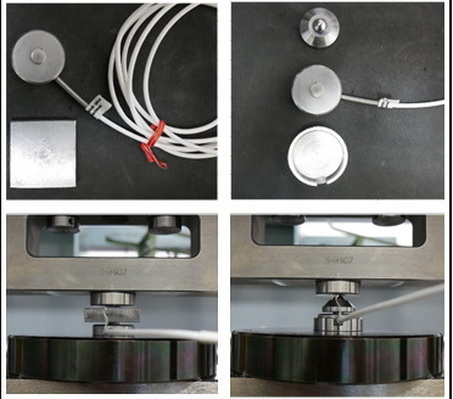

- Using Calibration Adapters: Special adapters can enhance alignment and improve calibration results, especially for button load cells.
To achieve the best results during calibration, consider the following best practices:
- Regular Calibration: Schedule regular calibration sessions to maintain accuracy.
- Environmental Control: Ensure that the calibration environment is stable, with minimal temperature and humidity fluctuations.
- Use Quality Equipment: Invest in high-quality calibration equipment to ensure reliable results.
- Document Calibration Results: Keep detailed records of calibration results for future reference and compliance.
Calibration can sometimes present challenges. Common issues include:
- Misalignment: If the load cell is not properly aligned, it can lead to inaccurate readings. Using alignment adapters can help mitigate this issue.
- Drift Over Time: Load cells may drift from their calibrated state due to wear and tear. Regular checks can help identify and correct this drift.
- Environmental Factors: Changes in temperature or humidity can affect load cell performance. Ensure that the calibration environment is controlled.
Proper calibration of button load cells is essential for ensuring accurate and reliable measurements. By following best practices and understanding the calibration process, users can maintain the performance of their load cells and avoid costly errors. Regular calibration not only enhances measurement accuracy but also extends the lifespan of the equipment.
A button load cell is a compact, disc-shaped sensor used to measure compressive forces in various applications.
Load cells should be calibrated regularly, typically every six months to a year, depending on usage and environmental conditions.
Signs include inconsistent readings, drift in measurements, and failure to return to zero when unloaded.
While it is possible to calibrate a load cell yourself, it is recommended to use professional services for the most accurate results.
Essential equipment includes a calibration machine, known weights, alignment adapters, and a computer interface for monitoring measurements.
This article provides a comprehensive overview of button load cell calibration, ensuring that users are well-equipped to maintain the accuracy and reliability of their measurements.
