Compression load cells are essential devices used to measure force or weight by converting mechanical force into an electrical signal. These devices are widely utilized in various industries, including manufacturing, aerospace, and automotive, where precise measurements are crucial. Calibration is a critical process that ensures the accuracy and reliability of these measurements. Without proper calibration, the data obtained from load cells can be misleading, leading to potential safety hazards and financial losses.

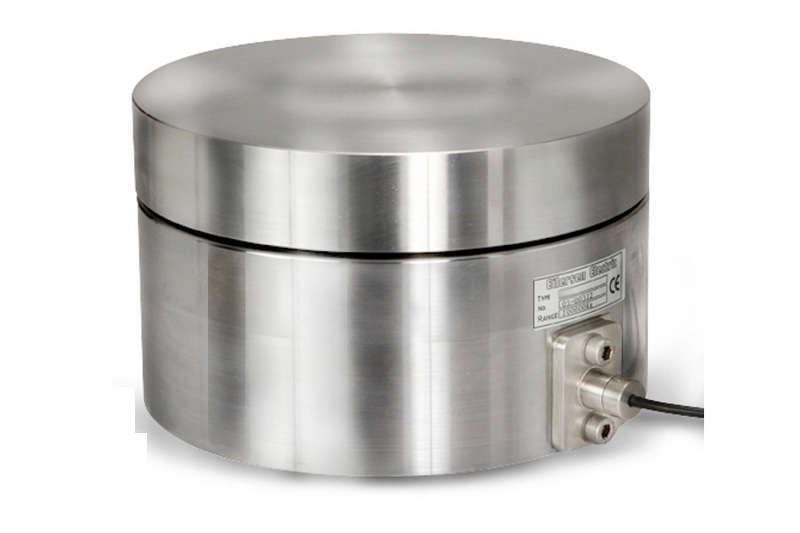

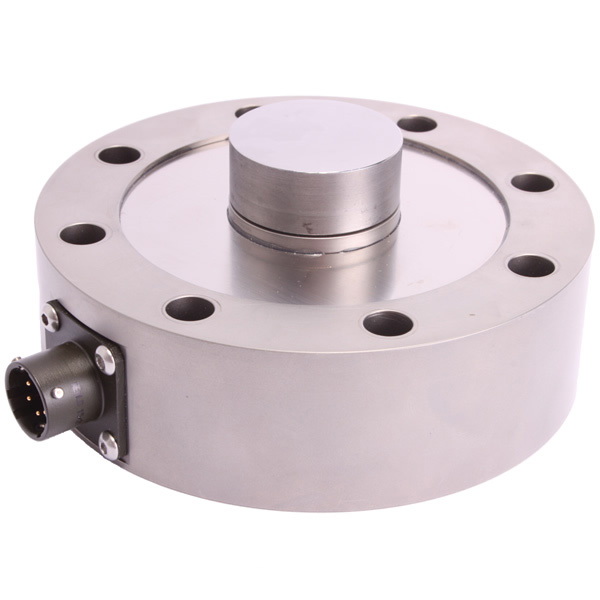

Compression load cells operate on the principle of converting the force applied to them into an electrical signal. When a load is applied, the internal strain gauges within the load cell deform, producing a change in resistance that is proportional to the force exerted. This change is then converted into a readable output signal, typically in volts or millivolts.
These load cells are used in various applications, such as weighing scales, industrial machinery, and structural testing. Their ability to provide accurate measurements makes them indispensable in quality control and safety assessments.
Calibration is the process of adjusting the output of a load cell to ensure it accurately reflects the applied load. This process typically involves comparing the load cell's output against a known standard or reference.
- Calibration weights: These are known weights used to apply a specific load to the load cell.

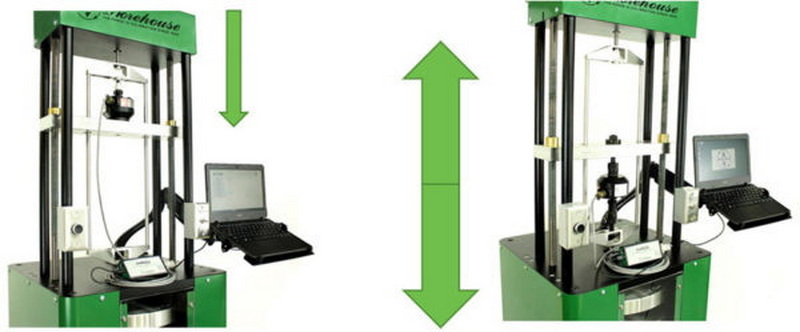

- A calibration machine or setup: This can be a universal testing machine or a dedicated load cell calibration system.

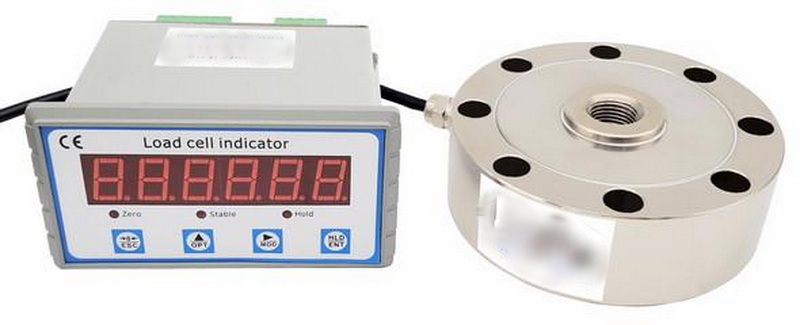

- Data acquisition system: This records the output from the load cell during the calibration process.
1. Setup: Place the load cell in a stable environment, ensuring it is free from vibrations and air currents.
2. Zeroing: Before applying any load, zero the load cell to eliminate any offset errors.
3. Apply Known Weights: Gradually apply known weights to the load cell, starting from zero and moving up to the maximum capacity.
4. Record Output: For each weight applied, record the output signal from the load cell.
5. Adjust Calibration: If the output does not match the expected values, adjust the calibration settings accordingly.
6. Repeat: Repeat the process to ensure accuracy and consistency.
There are several methods for calibrating compression load cells, each with its advantages and applications.
This method involves applying two known weights at different points within the load cell's range. It helps to correct both the slope (sensitivity) and offset (zero balance) errors.
This technique uses a resistor to simulate a known load, allowing for quick adjustments without the need for physical weights. It is particularly useful for load cells that are difficult to access.
This is considered the most accurate method, where calibrated weights are used to apply force directly to the load cell. This method is often used in laboratory settings.
To ensure accurate and reliable calibration results, consider the following best practices:
- Ensuring Proper Alignment: Misalignment can lead to measurement errors. Use appropriate adapters and fixtures to maintain alignment during calibration.
- Environmental Considerations: Perform calibrations in a controlled environment to minimize the effects of temperature, humidity, and vibrations.
- Regular Maintenance and Checks: Schedule regular calibration checks to maintain the accuracy of load cells over time.
Calibration issues can arise due to various factors, including equipment malfunction, environmental conditions, or operator error.
- Drift in Readings: This can occur due to temperature changes. Regularly check and recalibrate if necessary.
- Inconsistent Outputs: Ensure that the load cell is properly aligned and that the calibration weights are accurate.
Maintaining detailed records of calibration procedures, results, and any adjustments made is crucial for quality control and compliance with industry standards.
Calibrating compression load cells is vital for ensuring accurate measurements in various applications. By following proper calibration techniques and best practices, organizations can maintain the reliability of their load cells, ultimately leading to improved safety and efficiency in their operations. As technology advances, the methods and tools for load cell calibration will continue to evolve, making it essential for professionals to stay informed about the latest developments in the field.
Calibrating a load cell ensures that it provides accurate and reliable measurements, which is crucial for safety and quality control in various applications.
The frequency of calibration depends on the application and usage of the load cell. Generally, it is recommended to calibrate load cells at least once a year or after significant use.
Signs include inconsistent readings, drift in measurements, and discrepancies between expected and actual outputs.
While some basic calibrations can be performed by trained personnel, it is often best to have load cells calibrated by professionals to ensure accuracy.
Failure to calibrate load cells can lead to inaccurate measurements, which can result in safety hazards, financial losses, and compromised product quality.
This article provides a comprehensive overview of how to calibrate compression load cells, emphasizing the importance of accuracy and reliability in measurements.
