In the world of precision measurement and weight sensing, the HX711 load cell amplifier has become an indispensable tool for hobbyists, engineers, and researchers alike. This powerful chip, when paired with a load cell, opens up a world of possibilities for creating accurate digital scales, force measurement systems, and various weight-sensitive applications. However, to harness the full potential of this technology, one must master the art of calibration. In this comprehensive guide, we'll delve deep into the intricacies of HX711 load cell calibration, exploring the process step-by-step and providing you with the knowledge to create your own high-precision weighing systems.
Before we dive into the calibration process, it's crucial to understand the components we're working with. The HX711 is a precision 24-bit analog-to-digital converter (ADC) designed specifically for weigh scales and industrial control applications interfacing directly with a bridge sensor. Load cells, on the other hand, are transducers that convert force into electrical signals. When combined, these two components form the heart of a digital weighing system.
Calibration is the process of configuring an instrument to provide a result for a sample within an acceptable range. For HX711 load cell systems, calibration ensures that the raw data from the load cell is accurately converted into meaningful weight measurements. Without proper calibration, your weighing system may produce inconsistent or inaccurate results, rendering it useless for precise measurements.
Let's break down the calibration process into manageable steps:

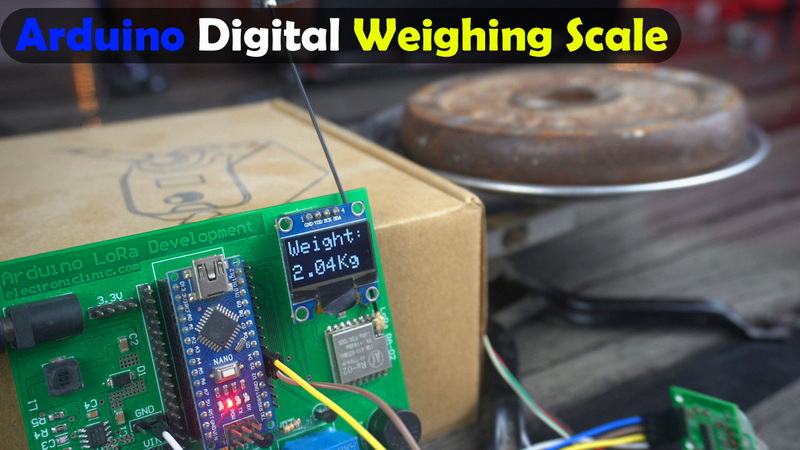

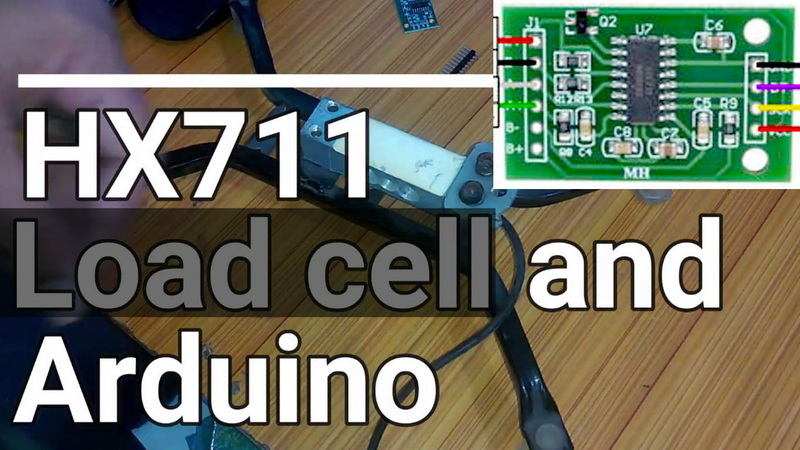

First, ensure that your load cell is correctly wired to the HX711 module. The typical color coding for load cell wires is:
- Red: Excitation+
- Black: Excitation-
- White: Signal+
- Green: Signal-Connect these to the corresponding pins on the HX711 module, then connect the HX711 to your microcontroller (e.g., Arduino) as follows:
- VCC to 5V
- GND to GND
- DT (data) to a digital pin (e.g., D2)
- SCK (clock) to a digital pin (e.g., D3)
To interface with the HX711, you'll need to install a library. For Arduino users, the "HX711_ADC" library by Olav Kallhovd is highly recommended. You can install it through the Arduino IDE's Library Manager.
Before calibration, it's essential to set the zero point. This process is called taring.
- Place a known weight on the load cell.
- Read the raw value from the HX711.
- Calculate the calibration factor.
- Set the calibration factor.
After setting the calibration factor, verify the accuracy by measuring known weights and adjusting the factor if necessary.
For even greater accuracy, consider these advanced techniques:
Instead of using a single weight for calibration, use multiple weights across the range of your scale. This helps account for any non-linearities in the load cell's response.
Load cells can be sensitive to temperature changes. Implement temperature compensation by using a temperature sensor and adjusting the calibration factor based on temperature readings.
To reduce noise and improve stability, implement averaging of multiple readings and digital filtering techniques.
Even with careful calibration, you may encounter some challenges:
1. **Drift**: If you notice the readings drifting over time, check for mechanical issues, ensure stable power supply, and consider implementing a regular auto-tare function.
2. **Inconsistent Readings**: This could be due to electrical noise. Ensure proper shielding and consider using a low-pass filter in your code.
3. **Non-linearity**: If accuracy varies across the weight range, implement a piece-wise linear calibration or consider using a higher-quality load cell.
Now that you've mastered HX711 load cell calibration, the possibilities are endless. Here are some exciting project ideas:
1. **Smart Kitchen Scale**: Create a Wi-Fi connected scale that can suggest recipes based on the weight of ingredients.
2. **Inventory Management System**: Build an automated system that tracks inventory levels in real-time using weight sensors.
3. **Fitness Tracker**: Develop a smart exercise equipment that measures force and repetitions for strength training.
4. **Industrial Process Control**: Implement precise material dosing in manufacturing processes.
5. **Agricultural Monitoring**: Create systems for monitoring livestock weight or crop yields.
Mastering HX711 load cell calibration is a crucial skill for anyone working with weight measurement systems. By following this comprehensive guide, you've gained the knowledge to create accurate and reliable weighing solutions.
Remember that calibration is an ongoing process, and regular checks and adjustments will ensure your system maintains its precision over time.As you embark on your weight measurement projects, continue to experiment, refine your techniques, and push the boundaries of what's possible with these remarkable sensors. The world of precision measurement awaits your innovations!
A1: The frequency of recalibration depends on various factors such as the environment, usage, and required accuracy. For general use, recalibrating every few months is often sufficient. However, for critical applications, consider recalibrating weekly or even daily.
A2: No, each load cell may have slightly different characteristics, even if they're the same model. It's best to calibrate each load cell individually for optimal accuracy.
A3: The maximum weight depends on the specific load cell you're using. Load cells come in various capacities, from a few grams to several tons. The HX711 itself can work with a wide range of load cells, so choose a load cell that matches your weight range requirements.
A4: To improve stability, ensure a stable power supply, use proper shielding for your wires, implement digital filtering in your code, and consider using a moving average of multiple readings.
A5: While it's possible to estimate calibration using objects of approximate known weight, using certified calibration weights will always provide the most accurate results. For DIY projects, household items with known weights (like water bottles or bags of rice) can be used as a starting point, but for precise applications, invest in proper calibration weights.
