Hydraulic load cells are essential devices used in various industries to measure force and weight accurately. These devices operate on the principle of fluid mechanics, converting applied force into hydraulic pressure. However, to ensure that these measurements are reliable, regular calibration is crucial. Calibration not only verifies the accuracy of the load cell but also maintains its performance over time.

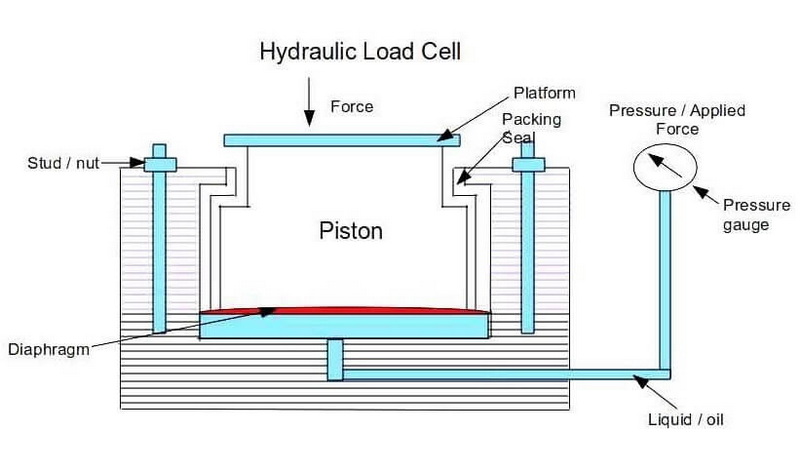

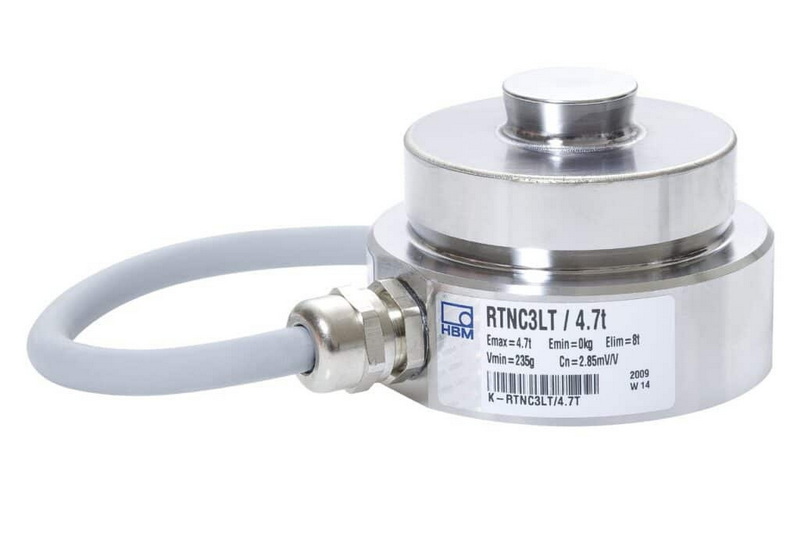

Hydraulic load cells consist of several key components, including a load piston, diaphragm, and pressure gauge. When a force is applied to the load piston, it generates pressure in the hydraulic fluid, which is then measured by the pressure gauge. This mechanism allows for precise weight measurements, making hydraulic load cells popular in industries such as manufacturing, aerospace, and construction.
Calibration is vital for ensuring that the output signal from the load cell accurately reflects the applied force. Without proper calibration, the measurements can be inaccurate, leading to potential safety hazards and financial losses. Industries often adhere to strict calibration standards to maintain quality and compliance.
There are several methods for calibrating hydraulic load cells, each with its advantages:
- Deadweight Calibration: This method involves applying known weights to the load cell and adjusting its output to match the applied force. It is considered the most accurate method.
- Comparison Calibration: This technique compares the load cell's output with a reference load cell to ensure accuracy.
- Zero Calibration: This method adjusts the load cell's output to zero when no force is applied, ensuring that any subsequent measurements are accurate.
- Dynamic Calibration: This involves testing the load cell under varying loads to assess its performance across a range of conditions.
1. Preparing for Calibration: Gather all necessary equipment, including calibration weights, a reference load cell, and a data acquisition system.
2. Setting Up the Calibration Equipment: Connect the hydraulic load cell to the data acquisition system and ensure that all connections are secure.
3. Performing the Calibration: Apply known weights incrementally, recording the output at each step. Adjust the load cell's output to match the applied force.
4. Recording and Analyzing Results: Document the calibration results and analyze them for any discrepancies. This data is crucial for maintaining accurate records.
To ensure the longevity and accuracy of hydraulic load cells, follow these best practices:
- Regular Maintenance: Schedule routine checks and maintenance to prevent issues before they arise.
- Environmental Considerations: Ensure that the load cell is used in an environment that minimizes temperature fluctuations and moisture, which can affect performance.
- Documentation and Traceability: Keep detailed records of all calibration activities, including dates, results, and any adjustments made.
Calibration can sometimes present challenges. Here are some common issues and their solutions:
- Calibration Errors: If the load cell readings are inconsistent, check for loose connections or damaged components.
- Environmental Factors: Ensure that the load cell is not exposed to extreme temperatures or humidity, which can affect readings.
- Professional Help: If calibration issues persist, consider consulting a professional calibration service to ensure accuracy.
Calibrating hydraulic load cells is essential for maintaining their accuracy and reliability. By following proper calibration methods and best practices, industries can ensure that their measurements are precise, leading to improved safety and efficiency. As technology advances, the methods and tools for calibration will continue to evolve, making it easier to maintain the integrity of these critical devices.
- The lifespan can vary based on usage and maintenance, but with proper care, they can last several years.
- It is recommended to calibrate them at least once a year or more frequently if used in critical applications.
- Inconsistent readings, sudden changes in output, or physical damage can indicate the need for calibration.
- While some basic calibrations can be done, it is advisable to use professional services for accurate results.
- Calibration weights, a reference load cell, a data acquisition system, and appropriate software are typically required.
This comprehensive guide provides a detailed overview of hydraulic load cell calibration, ensuring that users understand the importance and methods involved in maintaining accurate measurements.
