How To Calibrate Kistler Load Cell?

Content Menu

Introduction

Understanding Load Cells

>> Types of Kistler Load Cells

Importance of Calibration

>> Consequences of Uncalibrated Load Cells

Calibration Procedure for Kistler Load Cells

>> Required Tools and Equipment

>> Step-by-Step Calibration Process

>> Tips for Ensuring Accuracy During Calibration

Common Calibration Techniques

>> Static Calibration

>> Dynamic Calibration

>> Comparison Calibration

Maintaining Load Cell Accuracy

>> How to Identify When Recalibration is Necessary

Conclusion

Frequently Asked Questions

>> 1. What is the lifespan of a Kistler load cell?

>> 2. How often should load cells be calibrated?

>> 3. Can I calibrate a load cell myself?

>> 4. What are the signs of a faulty load cell?

>> 5. Where can I find calibration services for Kistler load cells?

Introduction

Load cells are essential devices used in various industries to measure force or weight. They convert mechanical force into an electrical signal, which can then be measured and recorded. Kistler load cells are renowned for their precision and reliability, making them a popular choice in applications ranging from industrial weighing to research and development. This article will guide you through the calibration process of Kistler load cells, emphasizing the importance of accurate measurements and the steps involved in ensuring your load cell operates at peak performance.

Understanding Load Cells

A load cell is a type of transducer that converts a force into an electrical signal. The most common types of load cells include strain gauge, hydraulic, and piezoelectric load cells. Kistler specializes in piezoelectric load cells, which utilize the piezoelectric effect to generate an electrical charge in response to applied force. This technology allows for high precision and fast response times, making Kistler load cells ideal for dynamic measurements.

Types of Kistler Load Cells

Kistler offers a variety of load cells, each designed for specific applications. Some popular models include:

- Type 9212: Known for its high sensitivity and accuracy, suitable for static and dynamic measurements.

- Type 9301C: A piezoelectric load cell designed for high-frequency applications.

- Type 9708A: Ideal for measuring compressive forces in various industrial settings.

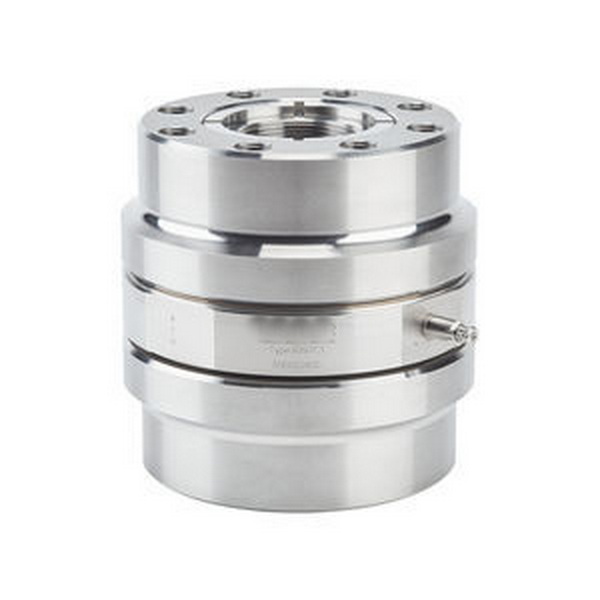

Calibrate Kistler Load Cell_1

Importance of Calibration

Calibration is the process of adjusting the accuracy of a measuring instrument. For load cells, calibration ensures that the output signal corresponds accurately to the applied force. Without proper calibration, load cells can produce erroneous readings, leading to significant errors in measurement and potential safety hazards.

Consequences of Uncalibrated Load Cells

Using uncalibrated load cells can result in:

- Inaccurate weight measurements, affecting product quality and compliance.

- Increased operational costs due to material wastage.

- Safety risks in applications where precise measurements are critical.

Calibration Procedure for Kistler Load Cells

To ensure accurate measurements, follow these steps for calibrating Kistler load cells:

Required Tools and Equipment

- Calibration weights (known mass)

- A calibration fixture or platform

- A digital multimeter or data acquisition system

- A computer with calibration software (if applicable)

Step-by-Step Calibration Process

1. Setup: Place the load cell on a stable surface and connect it to the data acquisition system.

2. Zeroing: Ensure the load cell is zeroed before applying any weights. This can be done by removing any load and adjusting the output to zero.

3. Applying Weights: Gradually apply known weights to the load cell, starting from the lowest to the highest capacity. Record the output signal for each weight.

4. Data Analysis: Compare the recorded output with the expected values. Plot the results to create a calibration curve.

5. Adjustment: If discrepancies are found, adjust the calibration settings in the software or hardware as necessary.

6. Documentation: Document the calibration results, including the calibration curve and any adjustments made.

Tips for Ensuring Accuracy During Calibration

- Ensure that the calibration weights are accurate and traceable to national standards.

- Perform the calibration in a controlled environment to minimize temperature and humidity effects.

- Regularly check the load cell for mechanical wear or damage.

Calibrate Kistler Load Cell_4

Common Calibration Techniques

There are several techniques for calibrating load cells, including:

Static Calibration

This method involves applying known weights to the load cell and recording the output. It is straightforward and commonly used for most applications.

Dynamic Calibration

Dynamic calibration involves applying varying loads over time to assess the load cell's response. This method is useful for applications where load conditions change rapidly.

Comparison Calibration

In this technique, the load cell is compared against a reference load cell that has been calibrated. This method is effective for verifying the accuracy of the load cell.

Maintaining Load Cell Accuracy

To ensure long-term accuracy, regular maintenance and checks are essential. Here are some best practices:

- Regular Calibration: Schedule periodic calibrations based on usage frequency and application requirements.

- Environmental Controls: Protect load cells from extreme temperatures, humidity, and mechanical shocks.

- Visual Inspections: Regularly inspect load cells for signs of wear, corrosion, or damage.

How to Identify When Recalibration is Necessary

- Significant changes in measurement results.

- After any physical alterations to the load cell or its mounting.

- Following any incidents that may have affected the load cell's integrity.

Conclusion

Calibrating Kistler load cells is crucial for maintaining measurement accuracy and reliability. By following the outlined procedures and best practices, users can ensure their load cells perform optimally, leading to better quality control and safety in their applications. Regular calibration and maintenance not only enhance the lifespan of the load cells but also contribute to the overall efficiency of the measurement systems.

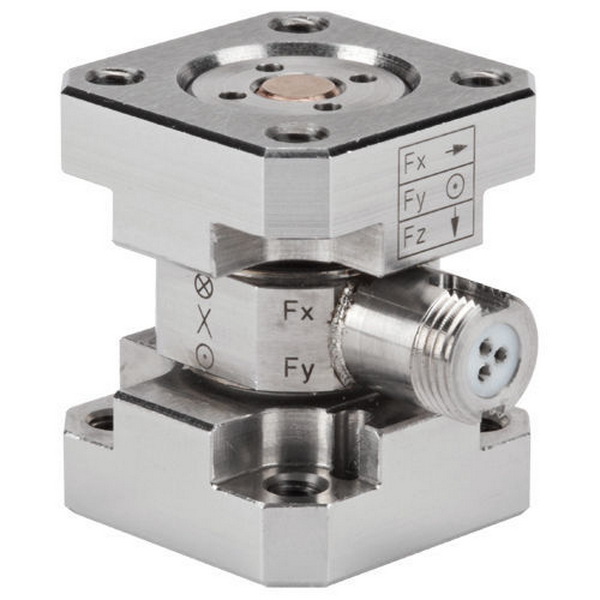

Calibrate Kistler Load Cell_3

Frequently Asked Questions

1. What is the lifespan of a Kistler load cell?

Kistler load cells are designed for durability and can last many years with proper care and maintenance. Regular calibration and inspections can extend their lifespan.

2. How often should load cells be calibrated?

The frequency of calibration depends on the application and usage. Generally, it is recommended to calibrate load cells at least once a year or after significant changes in their operating conditions.

3. Can I calibrate a load cell myself?

Yes, if you have the necessary tools and knowledge, you can calibrate a load cell yourself. However, for critical applications, it is advisable to seek professional calibration services.

4. What are the signs of a faulty load cell?

Signs of a faulty load cell include erratic readings, failure to return to zero, and physical damage. If you notice any of these issues, it is essential to inspect and possibly recalibrate the load cell.

5. Where can I find calibration services for Kistler load cells?

Kistler offers calibration services through their network of service centers. You can also find third-party calibration services that specialize in load cell calibration.
