Calibrating load cell scales is crucial for ensuring accurate weight measurements in various applications, from industrial settings to laboratory environments. This comprehensive guide will discuss the importance of calibration, provide a step-by-step process for calibrating load cell scales, and highlight common issues and troubleshooting tips. By following these guidelines, you can maximize the performance of your load cell scales, ensuring they deliver precise and reliable measurements.

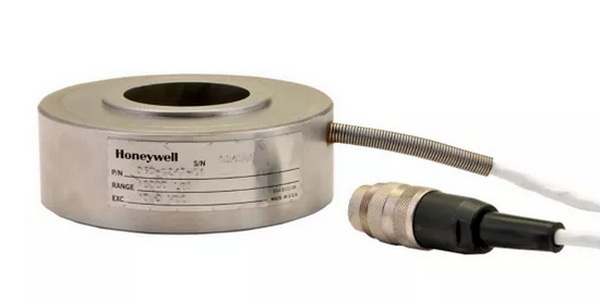

Calibration is the process of adjusting the output of a load cell to ensure that it accurately reflects the weight being measured. Here are some key reasons why calibration is vital:
- Accuracy: Over time, load cells can drift from their original calibration due to factors such as mechanical wear, environmental conditions, and frequent use. Regular calibration helps maintain accuracy.
- Safety: In industrial applications, inaccurate weight measurements can lead to safety hazards, including overloading equipment or improper handling of materials.
- Regulatory Compliance: Many industries require regular calibration of weighing instruments to comply with safety and quality standards. Failure to calibrate can result in legal issues and financial penalties.
- Quality Control: In manufacturing processes, precise weight measurements are critical for maintaining product quality. Calibration ensures that products meet specified weight criteria.

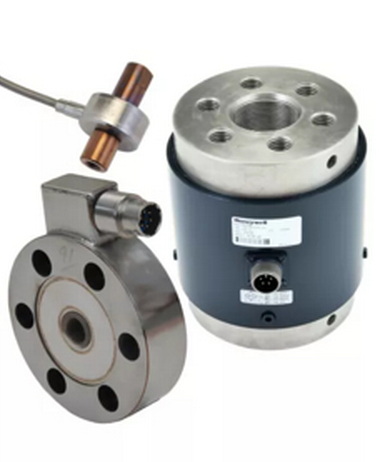

Calibrating load cell scales involves several key steps. Below is a detailed guide to help you through the process.
Before starting the calibration process, ensure you have the following tools:
- Calibration weights (certified)
- Digital indicator or data acquisition system
- A stable environment free from vibrations and temperature fluctuations
- A level surface for placing the load cell scale
- A calibration certificate for reference
Ensure that the load cell is properly connected to the indicator or data acquisition system. Verify all connections are secure to avoid errors during calibration. Check that the wiring is intact and that there are no loose connections which could affect performance.
Perform a zero calibration by ensuring that the load cell reads zero when no force is applied. This step is essential for accurate measurements. To do this:
- Remove any weights from the scale.
- Press the "Zero" or "Tare" button on your digital indicator.
This ensures that any residual weight or offset does not affect your measurements.
Gradually apply known weights to the load cell and record the output signal for each weight. It's best to start with a small weight and gradually increase it to full capacity. For example:
- Start with 10% of maximum capacity.
- Increase by increments (20%, 50%, 75%, and finally 100%).
Ensure that each weight is placed gently on the scale to avoid sudden shocks that could damage the load cell.
Using the recorded data, adjust the load cell's output to match the known weights applied. This adjustment may involve changing internal settings or recalibrating based on manufacturer instructions.
If your digital indicator allows it, input these adjustments directly into its settings menu. If not, you may need to physically adjust potentiometers or other components within the load cell assembly.
After making adjustments, verify the results by applying additional weights and checking if the output matches expected values. This step ensures that your calibration was successful:
- Apply each known weight again.
- Record output readings.
If discrepancies arise, repeat adjustments until accuracy is achieved.
Even with careful calibration, issues can arise that affect accuracy. Here are some common problems and their solutions:
- Inconsistent Readings: If readings fluctuate significantly, check for environmental factors such as vibrations or temperature changes that might affect performance. Consider isolating the scale from heavy machinery or using vibration dampening pads.
- Slow Response Times: Ensure that all connections are secure and that there are no obstructions affecting the load cell's operation. Inspect cables for wear or damage.
- Calibration Drift: Regularly scheduled calibrations can help mitigate drift caused by wear and tear or environmental influences. Implement a routine maintenance schedule based on usage frequency.
To ensure ongoing accuracy of your load cell scales, consider these best practices:
- Regular Calibration: Schedule calibrations based on usage frequency; many recommend every six months to a year.
- Environmental Control: Maintain a stable environment free from vibrations and temperature fluctuations during operation and calibration.
- Documentation: Keep detailed records of each calibration session, including dates, weights used, and any adjustments made. This documentation can be invaluable for troubleshooting future issues.
For those seeking higher precision in their measurements or working in specialized industries, advanced calibration techniques may be necessary:
- Multi-point Calibration: Instead of just using one point (like zero), apply multiple known weights across different ranges of capacity (e.g., low, mid-range, high). This method provides a more comprehensive understanding of how your load cell performs across its entire range.
- Temperature Compensation: Some advanced load cells come with built-in temperature sensors that allow for automatic compensation of temperature-induced errors during measurement.
- Software Calibration: Many modern digital indicators come equipped with software tools that facilitate easier calibration processes through graphical interfaces and automated adjustments based on input data.
While many users can perform basic calibrations themselves, professional calibration services offer several benefits:
- Expertise: Professionals have extensive knowledge about various types of load cells and their specific requirements.
- Advanced Equipment: Calibration labs often have access to high-end equipment that provides more precise measurements than standard tools available to most users.
- Traceability: Professional services often provide certificates of calibration traceable to national standards which may be required for regulatory compliance in certain industries.
Proper calibration of load cell scales is essential for achieving maximum performance in weight measurement applications. By following the outlined steps for calibration and addressing common issues proactively, you can ensure that your load cells operate accurately and reliably over time. Regular maintenance and documentation will further enhance their longevity and performance.
Investing time in understanding how to calibrate your load cells effectively will pay off in improved accuracy, safety, compliance with regulations, and overall operational efficiency in your business or research environment.
It is generally recommended to calibrate load cells every six months to a year, depending on usage frequency and industry standards.
You will need certified calibration weights, a digital indicator or data acquisition system, a stable environment free from vibrations, a level surface for placing the scale, and a calibration certificate for reference.
Yes, with proper knowledge and tools, you can calibrate a load cell yourself; however, professional services are recommended for high-precision applications.
Signs include inconsistent readings, significant deviations from expected values, slow response times, or failure to return to zero when unloaded.
Common methods include deadweight calibration (using known weights), electronic calibration (simulating weights), multi-point calibration (using various weights across capacity), and comparison calibration (comparing with another calibrated scale).
