S Beam Load Cells are essential devices used in various industries for measuring weight and force. Their unique design allows them to accurately measure both tension and compression, making them versatile tools in applications ranging from industrial weighing systems to laboratory testing. However, to ensure their accuracy and reliability, regular calibration is crucial. This article will guide you through the process of calibrating S Beam Load Cells, highlighting the importance of this practice and providing a detailed step-by-step procedure.

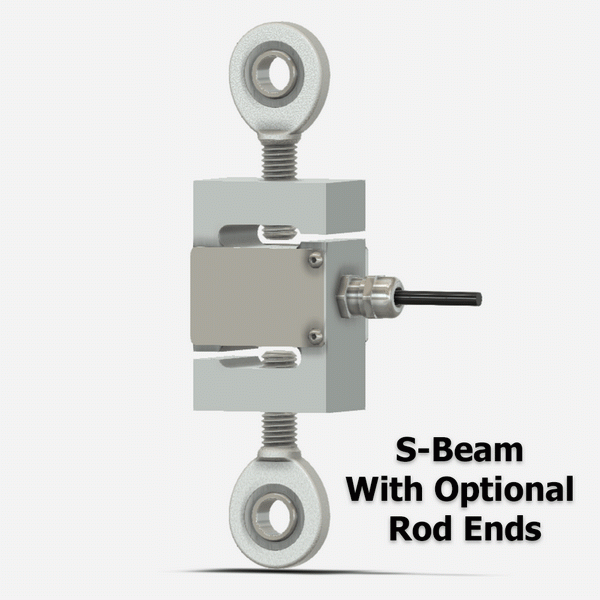

An S Beam Load Cell, also known as an S Type Load Cell, is a transducer that converts a force into an electrical signal. The "S" shape of the load cell allows it to handle both tension and compression forces effectively. This design is particularly beneficial in applications where the load may vary in direction.
S Beam Load Cells are widely used in various applications, including:
- Weighing scales in industrial settings
- Force measurement in testing machines
- Load monitoring in cranes and hoists
- Material testing in laboratories
The advantages of S Beam Load Cells include:
- High accuracy and precision
- Ability to measure both tension and compression
- Compact design suitable for various applications
- Robust construction for durability
Calibration is the process of adjusting and verifying the accuracy of a measuring instrument by comparing it against a standard. For load cells, this involves applying known weights and adjusting the output to match these weights.
Accurate calibration is vital for ensuring that the measurements taken by the load cell are reliable. Inaccurate readings can lead to significant errors in weight measurement, affecting product quality and safety.
To calibrate an S Beam Load Cell, you will need:
- A calibrated weight set
- A digital readout or indicator
- A calibration machine or setup
- Tools for adjusting the load cell (if necessary)
Before starting the calibration process, ensure that the load cell is clean and free from any debris. Check the connections and ensure that the load cell is properly mounted.
Create a stable environment for calibration. This includes:
- Ensuring the load cell is level
- Minimizing vibrations and disturbances
- Maintaining a controlled temperature
1. Tension Calibration
- Attach the load cell to a calibration machine.
- Gradually apply known weights, starting from zero and increasing to the maximum capacity of the load cell.
- Record the output readings for each weight applied.
2. Compression Calibration
- Reverse the setup to apply compression forces.
- Repeat the process of applying known weights and recording the output.
3. Recording and Analyzing Data
- Compare the recorded output with the known weights.
- Adjust the load cell settings if necessary to ensure accuracy.
One of the most common issues during calibration is misalignment. Even slight misalignment can lead to significant errors in readings. Ensure that the load cell is properly aligned with the load application point.
Temperature and humidity can affect the performance of load cells. It is essential to calibrate in a controlled environment to minimize these effects.
After calibration, analyze the results to determine if the load cell is functioning within acceptable limits. If discrepancies are found, further adjustments may be necessary.
Calibrating S Beam Load Cells is a critical process that ensures accurate and reliable measurements. By following the outlined steps and addressing common issues, you can maintain the performance of your load cells and ensure the integrity of your measurements. Regular calibration not only enhances accuracy but also extends the lifespan of the load cells, making it a worthwhile investment for any operation relying on precise weight measurements.
The lifespan of an S Beam Load Cell can vary based on usage and environmental conditions, but with proper care and regular calibration, they can last many years.
It is recommended to calibrate load cells at least once a year, or more frequently if they are used in critical applications or subjected to harsh conditions.
Signs of a miscalibrated load cell include inconsistent readings, significant deviations from known weights, and physical damage to the load cell.
Yes, with the right tools and knowledge, you can calibrate a load cell yourself. However, for critical applications, it may be best to have it done by a professional.
Failing to calibrate load cells can lead to inaccurate measurements, which can affect product quality, safety, and compliance with industry standards.
This comprehensive guide provides a detailed understanding of how to calibrate S Beam Load Cells effectively, ensuring accuracy and reliability in your measurements.
