Load cells are crucial components in various weighing systems, from industrial scales to precision laboratory equipment. Ensuring their proper functionality is essential for accurate measurements and reliable operations. One of the most accessible and cost-effective methods to check a load cell is by using a multimeter. This comprehensive guide will walk you through the process of checking a load cell using a multimeter, providing valuable insights into load cell testing, troubleshooting, and maintenance.

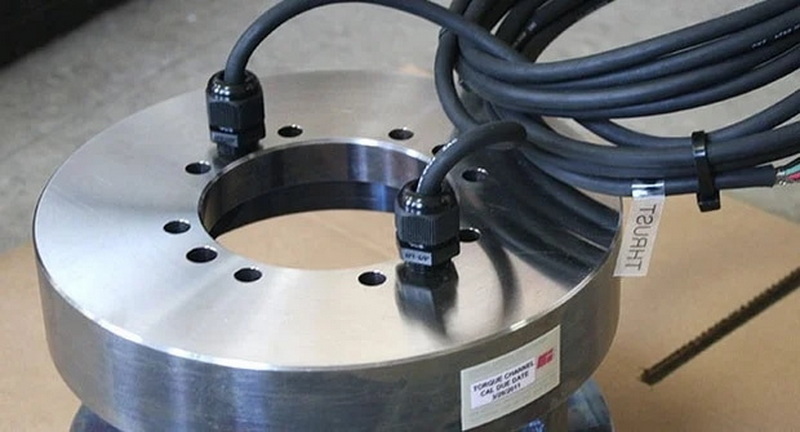

Before diving into the testing process, it's important to understand what a load cell is and how it works. A load cell is a transducer that converts force into a measurable electrical output. It typically consists of a metal body with strain gauges attached. When a force is applied, the metal body deforms slightly, causing a change in the electrical resistance of the strain gauges. This change in resistance is then converted into a voltage output that can be measured and interpreted.
There are several types of load cells, including:
1. Strain gauge load cells
2. Hydraulic load cells
3. Pneumatic load cells
4. Capacitive load cells
This guide will focus primarily on strain gauge load cells, as they are the most common type used in various applications.
A multimeter is an invaluable tool for checking load cells due to its versatility and accessibility. Here are some reasons why using a multimeter is beneficial:
1. Cost-effective: Multimeters are relatively inexpensive compared to specialized load cell testing equipment.
2. Portable: Most multimeters are compact and easy to carry, making them ideal for on-site testing.
3. Versatile: Multimeters can measure various electrical properties, including voltage, resistance, and current.
4. User-friendly: With some basic knowledge, anyone can use a multimeter to perform load cell checks.
Follow these steps to properly check your load cell using a multimeter:
Before using the multimeter, perform a thorough visual inspection of the load cell:
- Check for any visible damage, such as cracks, dents, or corrosion.
- Examine the cable connections for any signs of wear or looseness.
- Ensure the load cell is properly mounted and aligned.
1. Select a digital multimeter with sufficient sensitivity (ideally capable of measuring in millivolts).
2. Set the multimeter to the DC voltage mode.
3. Choose the appropriate range for measuring millivolts (mV).
1. Identify the load cell's wiring configuration (typically four or six wires).
2. Connect the multimeter's positive (red) lead to the load cell's positive output wire.
3. Connect the multimeter's negative (black) lead to the load cell's negative output wire.
1. Connect a stable power supply to the load cell's excitation wires.
2. Set the excitation voltage according to the load cell's specifications (usually between 5-12V DC).
1. Record the multimeter reading with no load applied (zero load).
2. Apply a known weight to the load cell.
3. Record the new multimeter reading.
4. Calculate the difference between the loaded and unloaded readings.
1. Compare the measured output to the load cell's specifications.
2. Check if the output is within the expected range (typically 2-3 mV/V).
3. Verify that the output changes linearly with applied weight.
If you encounter issues during the testing process, consider the following troubleshooting tips:
1. No output signal:
- Check all wire connections for proper contact.
- Verify that the excitation voltage is correctly applied.
- Inspect the load cell for physical damage.
2. Unstable or fluctuating readings:
- Ensure the load cell is properly grounded.
- Check for electromagnetic interference in the surrounding area.
- Verify that the multimeter's sensitivity is appropriate for the load cell's output.
3. Non-linear output:
- Inspect the load cell for signs of overloading or physical damage.
- Check if the applied load is within the cell's rated capacity.
- Verify that the load is applied evenly and in the correct direction.
4. Drift in readings:
- Allow sufficient warm-up time for the load cell and measuring equipment.
- Check for temperature fluctuations in the testing environment.
- Ensure the load cell is not subjected to constant stress when unloaded.
Avoid these common mistakes to ensure accurate load cell testing:
1. Using an inadequate multimeter: Ensure your multimeter has sufficient sensitivity and accuracy for load cell measurements.
2. Incorrect wiring connections: Double-check all wire connections before applying power or taking measurements.
3. Ignoring environmental factors: Temperature, humidity, and vibrations can affect load cell performance.
4. Overloading the load cell: Never exceed the rated capacity of the load cell during testing.
5. Neglecting proper calibration: Regularly calibrate your multimeter and use certified weights for testing.
6. Misinterpreting specifications: Understand the load cell's specifications, including sensitivity and rated output.
7. Rushing the testing process: Allow sufficient time for the load cell to stabilize between measurements.
Load cell testing is crucial in various industries and applications, including:
1. Industrial weighing systems
2. Automotive and aerospace testing
3. Material testing and quality control
4. Medical equipment calibration
5. Agricultural and livestock management
6. Robotics and automation
7. Shipping and logistics
8. Construction and structural engineering
When testing load cells with a multimeter, observe these safety precautions:
1. Always follow proper electrical safety procedures.
2. Use insulated tools and wear appropriate personal protective equipment (PPE).
3. Ensure the testing area is clean, dry, and free from potential hazards.
4. Never exceed the load cell's rated capacity or the multimeter's measurement limits.
5. Be cautious when handling heavy weights during testing.
6. Disconnect power sources before making any wiring changes.
7. Keep detailed records of all tests and measurements for future reference.
For more comprehensive load cell testing, consider these advanced techniques:
1. Shunt calibration: Use a precision resistor to simulate a known load and verify the load cell's output.
2. Creep testing: Apply a constant load over an extended period to assess the load cell's stability.
3. Temperature compensation testing: Evaluate the load cell's performance across a range of temperatures.
4. Hysteresis testing: Measure the load cell's output during loading and unloading cycles to assess consistency.
5. Eccentric load testing: Apply off-center loads to verify the load cell's performance under non-ideal conditions.
To ensure long-term accuracy and reliability of your load cells:
1. Implement a regular testing and calibration schedule.
2. Keep load cells clean and protected from environmental factors.
3. Use proper mounting techniques to prevent uneven stress distribution.
4. Monitor for signs of wear or damage and replace load cells when necessary.
5. Train personnel in proper handling and testing procedures.
6. Store load cells in appropriate conditions when not in use.
Checking a load cell with a multimeter is an essential skill for anyone working with weighing systems or force measurement applications. By following this comprehensive guide, you can effectively test, troubleshoot, and maintain your load cells, ensuring accurate and reliable measurements across various industries and applications.
Remember that while multimeter testing is a valuable diagnostic tool, it may not replace the need for professional calibration services in certain high-precision applications. Always consult the load cell manufacturer's guidelines and industry standards for specific testing and maintenance requirements.
A1: The frequency of load cell checks depends on the application and usage. For critical systems, daily or weekly checks may be necessary. For less demanding applications, monthly or quarterly checks may suffice. Always follow manufacturer recommendations and industry standards for your specific use case.
A2: While it's possible to use an analog multimeter, digital multimeters are generally preferred for load cell testing due to their higher accuracy and ability to measure small voltage changes. Digital multimeters also often have additional features that can be helpful in diagnostics.
A3: If a load cell fails the multimeter test, first recheck all connections and repeat the test to rule out any procedural errors. If the problem persists, consult the manufacturer's troubleshooting guide or contact their technical support. In some cases, the load cell may need to be repaired or replaced by a qualified technician.
A4: While multimeter testing is useful for basic functionality checks, it may not detect all potential issues with a load cell. Some limitations include the inability to perform dynamic testing or assess the cell's performance under varying environmental conditions. For critical applications, more comprehensive testing methods may be required.
A5: Testing multiple load cells simultaneously with a single multimeter is not recommended, as it may lead to inaccurate results. Each load cell should be tested individually to ensure precise measurements and proper diagnosis of any issues.
