Load cells are essential components in various industries, providing accurate weight measurements for applications ranging from manufacturing to healthcare. Calibration is a critical process that ensures these devices function correctly, delivering precise readings. This article explores the significance of load cell calibration, the methods used, and the steps to check and maintain calibration effectively.

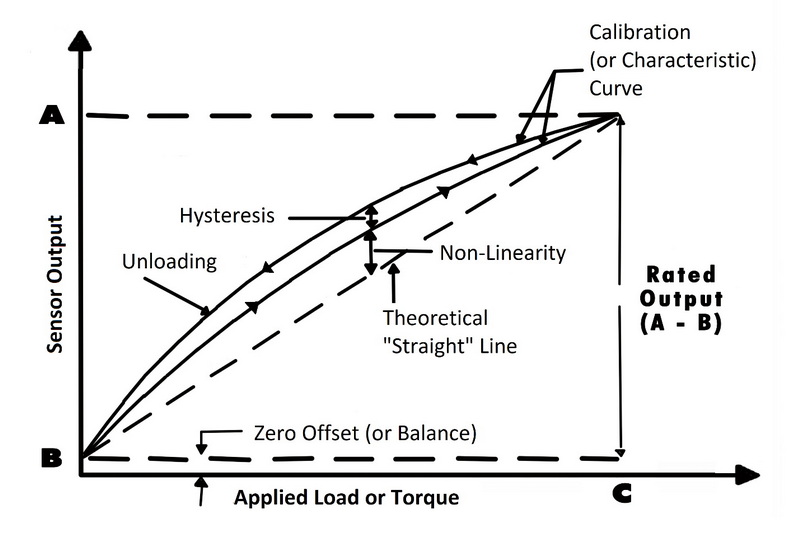

Load cell calibration is the process of adjusting the output of a load cell to ensure it accurately reflects the applied force. This involves comparing the load cell's output to a known standard or reference weight. Calibration is vital for maintaining the integrity of measurements, especially in industries where precision is paramount.
Calibration is necessary to ensure that load cells provide reliable and consistent measurements. Over time, factors such as temperature changes, mechanical stress, and wear can affect a load cell's accuracy. Regular calibration helps identify and correct these issues, ensuring that the load cell operates within specified tolerances.
Deadweight calibration is considered the most accurate method. It involves applying known weights to the load cell and adjusting its output to match the applied force. This method is highly reliable and is often used in laboratory settings.
Zero calibration involves adjusting the load cell's output to zero when no force is applied. This step is crucial to eliminate any offset that may affect measurement accuracy. It is typically performed before any other calibration methods.
Shunt calibration is a method used primarily for strain gauge load cells. It involves applying a known resistance to the load cell's output circuit, allowing for adjustments to be made without the need for physical weights. This method is efficient and can be performed quickly.
Before starting the calibration process, ensure that the load cell is clean and free from any debris. Gather all necessary equipment, including calibration weights, a digital multimeter, and any software required for data logging.
1. Connect the Load Cell: Ensure the load cell is properly connected to the measurement system.
2. Zero the Load Cell: Apply zero calibration to eliminate any offset.
3. Apply Calibration Weights: Gradually apply known weights to the load cell, recording the output at each step.
4. Adjust the Output: If the output does not match the expected values, make the necessary adjustments to the load cell's settings.
After completing the calibration, verify the results by comparing the load cell's output to the known weights. If discrepancies are found, repeat the calibration process or consult a professional for assistance.
Several factors can impact the accuracy of load cell calibration, including environmental conditions, mechanical stress, and electrical interference. It is essential to control these variables to ensure reliable measurements.
If calibration errors occur, check the following:
- Ensure that the calibration weights are accurate and properly calibrated.
- Verify that the load cell is functioning correctly and has not been damaged.
- Check for any electrical issues, such as loose connections or faulty wiring.
Regular maintenance of load cells is crucial for ensuring long-term accuracy. Schedule routine checks and calibrations to prevent issues from arising.
Always use certified calibration weights to ensure the accuracy of your calibration process. These weights are tested and verified to meet industry standards.
Keep detailed records of all calibration activities, including dates, results, and any adjustments made. This documentation is essential for quality control and compliance with industry regulations.
In conclusion, load cell calibration is a vital process that ensures accurate and reliable measurements in various applications. By understanding the methods and steps involved in calibration, users can maintain the integrity of their load cells and ensure optimal performance. Regular calibration not only enhances measurement accuracy but also extends the lifespan of load cell systems.
The best method for load cell calibration is deadweight calibration, as it provides the highest accuracy by using known weights.
Load cells should be calibrated at least once a year, or more frequently if they are used in critical applications or subjected to harsh conditions.
Signs of a miscalibrated load cell include inconsistent readings, failure to return to zero, and discrepancies between expected and actual measurements.
While it is possible to calibrate a load cell yourself, it is recommended to consult a professional for accurate results, especially for critical applications.
Essential equipment for load cell calibration includes calibration weights, a digital multimeter, and any necessary software for data logging and analysis.
This comprehensive guide provides a detailed overview of load cell calibration, ensuring that users can maintain the accuracy and reliability of their measurement systems.
