Load cell amplifiers are essential components in various measurement systems, converting the low-level signals from load cells into usable outputs. These devices play a crucial role in ensuring accurate and reliable measurements across multiple industries, including manufacturing, healthcare, and aerospace. Understanding how to choose the right load cell amplifier can significantly impact the performance of your measurement systems.

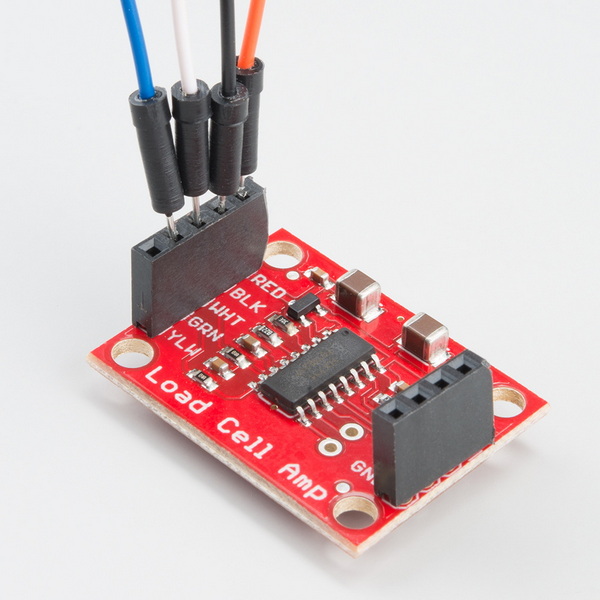

A load cell amplifier is a device that enhances the signal produced by a load cell, which measures weight or force. When a load is applied to a load cell, it generates a small electrical signal proportional to the force exerted. However, this signal is often too weak for direct use in data acquisition systems. Load cell amplifiers amplify this signal, making it suitable for further processing and analysis.
The basic operation of a load cell amplifier involves filtering noise, amplifying the signal, and converting it from analog to digital if necessary. This process ensures that the data collected is accurate and reliable, which is critical in applications where precision is paramount.
Load cell amplifiers find applications in various fields:
- Industrial Applications: In manufacturing, load cell amplifiers are used in weighing systems, material testing, and process control. They help monitor the weight of raw materials and finished products, ensuring quality control and compliance with industry standards.
- Medical and Aerospace Uses: In the medical field, load cell amplifiers are crucial for devices that require precise weight measurements, such as scales for patients. In aerospace, they are used in testing equipment to measure forces during flight simulations.
- Consumer Electronics: Load cell amplifiers are also found in household scales and fitness devices, providing users with accurate weight readings.
When choosing a load cell amplifier, several key factors should be considered:
- Key Features: Look for amplifiers that offer features such as adjustable gain, multiple output options (analog and digital), and built-in calibration capabilities. These features enhance the versatility and usability of the amplifier.
- Compatibility with Load Cells: Ensure that the amplifier is compatible with the type of load cell you are using. Different load cells may require specific excitation voltages and signal conditioning methods.

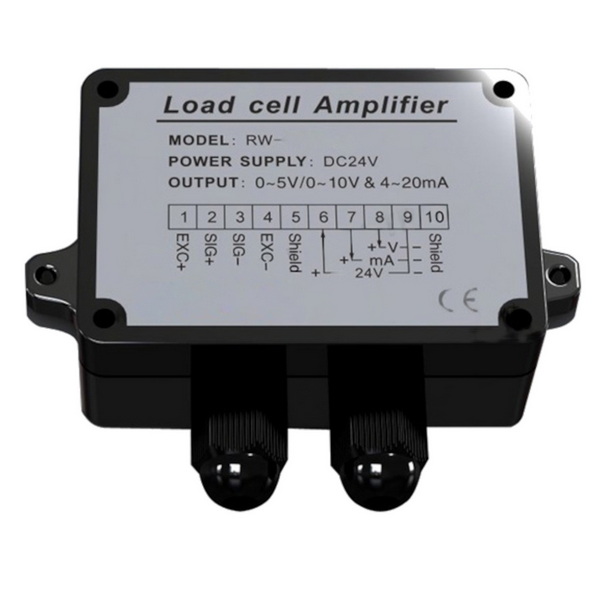

- Output Types and Signal Conditioning: Consider the output types you need for your application. Common outputs include 0-10V, 4-20mA, and digital signals. The amplifier should also provide adequate signal conditioning to minimize noise and improve accuracy.
Several brands are recognized for their high-quality load cell amplifiers:
- FUTEK: Known for its precision and reliability, FUTEK offers a range of amplifiers suitable for various applications, including medical and industrial uses.
- Tacuna Systems: This brand provides customizable solutions and is known for its innovative designs that enhance load cell performance.
- ANYLOAD: ANYLOAD amplifiers are popular for their durability and ease of use, making them suitable for both industrial and consumer applications.
- Carotron: Offers a variety of load cell amplifiers that are widely used in motor control and industrial applications.
Understanding the technical specifications of load cell amplifiers is crucial for making an informed choice:
- Input and Output Specifications: Check the input range and output types. Most amplifiers support a range of input signals, typically in millivolts, and provide various output options.
- Calibration and Accuracy: Calibration is essential for ensuring accurate measurements. Look for amplifiers that offer easy calibration procedures and maintain accuracy over time.
- Environmental Considerations: Consider the operating environment of the amplifier. Some models are designed to withstand harsh conditions, making them suitable for industrial applications.
Choosing the right load cell amplifier is critical for achieving accurate and reliable measurements in various applications. By understanding the key features, applications, and specifications of load cell amplifiers, you can make an informed decision that enhances the performance of your measurement systems. As technology advances, we can expect further innovations in load cell amplifiers, improving their functionality and versatility.
A load cell amplifier is a device that amplifies the electrical signal produced by a load cell, making it suitable for data acquisition and analysis.
Consider factors such as compatibility with your load cell, required output types, key features, and environmental conditions when selecting an amplifier.
Load cell amplifiers are used in industrial weighing systems, medical devices, aerospace testing, and consumer electronics.
Popular brands include FUTEK, Tacuna Systems, ANYLOAD, and Carotron, known for their quality and reliability.
Calibration procedures vary by model, but most amplifiers come with guidelines for easy calibration to ensure accurate measurements.
This comprehensive guide provides a detailed overview of load cell amplifiers, their applications, selection criteria, and popular brands, ensuring you have the necessary information to make an informed decision.
