Choosing the right load cell for your application can be a daunting task, especially given the variety of types, sizes, and specifications available. Load cells are critical components in various industries, providing accurate measurements of force or weight. This article will guide you through the essential factors to consider when selecting a load cell, ensuring it meets your specific needs.
A load cell is a transducer that converts a force into an electrical signal. The strength of the output signal is proportional to the force applied. Load cells are widely used in weighing systems, industrial applications, and testing environments.
There are several types of load cells, each designed for specific applications:

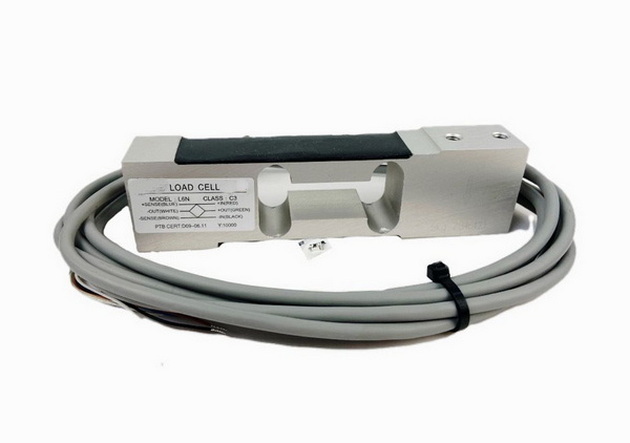

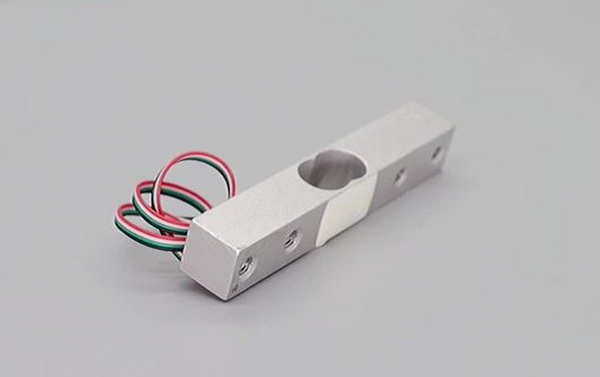

- Strain Gauge Load Cells: These are the most common type. They use strain gauges to measure deformation caused by an applied load. They are known for their accuracy and reliability and are suitable for a wide range of applications.
- Hydraulic Load Cells: These convert a load into hydraulic pressure and are often used in heavy-duty applications such as truck scales or large industrial scales. They can handle large loads and provide excellent overload protection.
- Pneumatic Load Cells: These operate on air pressure and are suitable for dynamic measurements. They are often used in applications where weight changes rapidly or where high-speed measurements are required.
- Capacitive Load Cells: These measure changes in capacitance caused by an applied load. They are less common but can be useful in specific applications where high sensitivity is required.
Understanding the differences between these types will help you choose the right one for your application.
When selecting a load cell, consider the following factors:
Determine the maximum weight or force that needs to be measured. It's advisable to select a load cell with a capacity slightly higher than your maximum expected load to ensure accuracy and longevity. For instance, if you expect to measure loads up to 1,000 kg, consider a load cell rated for at least 1,200 kg.
Identify whether your application involves tension, compression, or both. Different load cells are designed specifically for these conditions. For example, if you need to measure tension (pulling forces), a tension load cell is appropriate, while compression load cells are suitable for measuring pushing forces.
Consider the environment where the load cell will be used:
- Temperature extremes: Some load cells can operate effectively only within certain temperature ranges.
- Humidity levels: High humidity can affect performance; look for waterproof or moisture-resistant options if necessary.
- Exposure to chemicals or moisture: If your application involves harsh chemicals or wet conditions, choose a load cell with appropriate protective coatings.
Choose a load cell that can withstand these conditions, possibly opting for hermetically sealed options if necessary.
Define the level of accuracy needed for your application. Different load cells offer varying degrees of precision, so select one that meets your specific accuracy requirements. For example, industrial applications may require accuracy within ±0.1%, while laboratory settings may demand even tighter tolerances.
Evaluate the physical size and mounting requirements of the load cell. Ensure it fits within your installation space and can be easily mounted as needed. Some applications may require compact designs or specific mounting configurations (e.g., flange-mounted vs. threaded).
Some applications may require regular calibration to maintain accuracy. Consider whether you have the resources to perform this maintenance. Many manufacturers provide calibration services or guidelines on how to calibrate their products effectively.

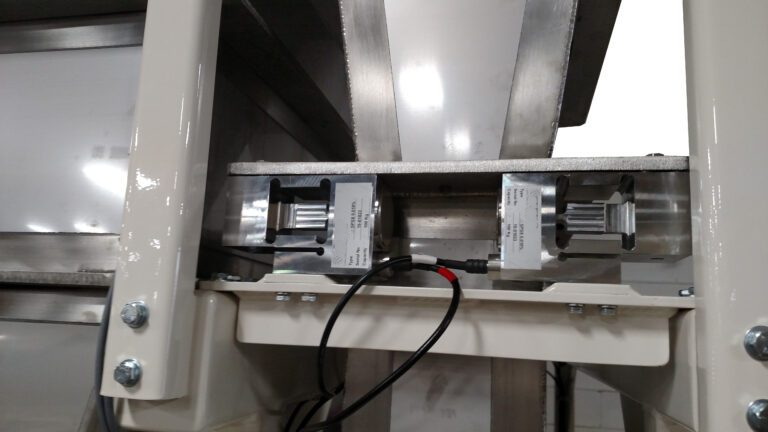

Once you've selected a suitable load cell, proper installation is crucial for accurate measurements. Follow these steps:
1. Mounting: Ensure that the load cell is mounted securely according to manufacturer specifications. Improper mounting can lead to inaccurate readings or damage to the device.
2. Wiring: Connect the load cell to its display or controller correctly, following wiring diagrams provided by the manufacturer. Pay attention to polarity and ensure secure connections to avoid signal loss or interference.
3. Calibration: Calibrate the system before use to ensure accurate readings. This process often involves applying known weights and adjusting the output signal accordingly.
4. Testing: After installation and calibration, conduct tests under normal operating conditions to verify performance and accuracy.
Load cells find applications across various industries due to their versatility:
- Manufacturing: Used in production lines for quality control and product weight verification.
- Food Industry: Essential for weighing ingredients accurately during food processing.
- Transportation: Used in truck scales and weighbridges to ensure compliance with weight regulations.
- Medical Equipment: Employed in devices like patient scales or laboratory balances where precision is critical.
- Research and Development: Utilized in testing materials under stress or measuring forces in experimental setups.
Understanding potential issues with load cells can help maintain their performance:
- Drift in Readings: This may indicate temperature changes affecting calibration; recalibrate if necessary.
- Inconsistent Readings: Check connections and ensure no mechanical interference is affecting measurements.
- Overload Damage: If a load cell is subjected to loads beyond its capacity, it may become damaged; always adhere to specified limits.
Choosing the best load cell involves understanding your specific application requirements, including capacity, type of load, environmental conditions, accuracy needs, size constraints, and installation considerations. By carefully evaluating these factors and following best practices during installation and maintenance, you can ensure that you select a load cell that meets your needs effectively.
A load cell is a device that converts force or weight into an electrical signal for measurement purposes.
Calculate your maximum expected load and choose a load cell with a capacity slightly higher than this value to ensure accuracy.
While some load cells are versatile, it's best to choose one specifically designed for your application's requirements (e.g., tension vs compression).
Calibration frequency depends on usage and application conditions; however, regular checks (annually or bi-annually) are recommended for optimal performance.
Consider temperature extremes, humidity levels, and exposure to chemicals or moisture when selecting a suitable load cell for your environment.
