Load cell amplifiers play a crucial role in accurately measuring and interpreting force and weight data in various industrial and scientific applications. Selecting the appropriate load cell amplifier for your specific needs can significantly impact the performance and reliability of your measurement system. This comprehensive guide will walk you through the key factors to consider when choosing a load cell amplifier, helping you make an informed decision for your application.

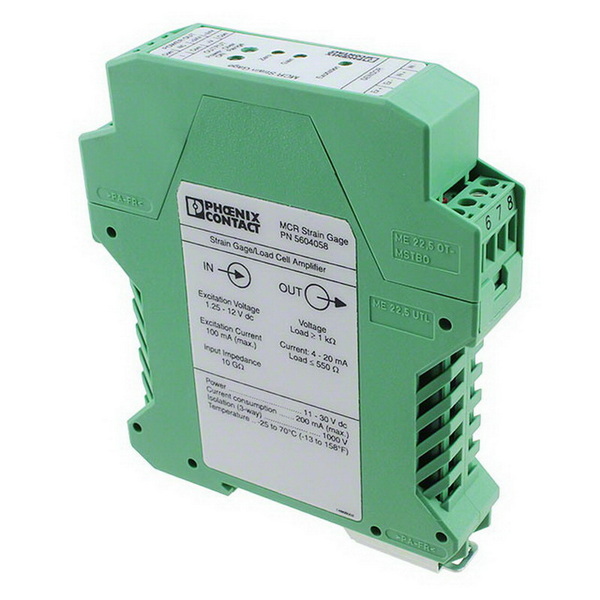

Load cell amplifiers are essential components that convert the small electrical signals produced by load cells into stronger, more usable signals. These devices take the millivolt-level output from load cells and amplify it to a standardized output range, such as 0-10V or 4-20mA, which can be easily read by data acquisition systems or controllers.
The first consideration when selecting a load cell amplifier is the type of input signal it can accept. Most load cells produce a millivolt-level output, typically in the range of 1-3 mV/V. Ensure that the amplifier you choose is compatible with the output range of your load cell.
Load cell amplifiers can provide various output signal types, including:
- Voltage output (e.g., 0-5V, 0-10V, ±10V)
- Current output (e.g., 4-20mA)
- Digital output (e.g., RS232, RS485, USB)
Choose an output type that is compatible with your data acquisition system or controller.
The excitation voltage is the power supplied to the load cell by the amplifier. Common excitation voltages are 5V, 10V, and 15V. Ensure that the amplifier's excitation voltage matches the requirements of your load cell.
Consider the required accuracy and resolution for your application. High-precision applications may require amplifiers with better linearity, lower noise, and higher resolution.
Look for amplifiers that offer easy calibration options, such as zero and span adjustments. Some advanced amplifiers provide digital calibration features for more precise setup.
If your application involves harsh environments, choose an amplifier with appropriate ingress protection (IP) ratings and operating temperature ranges.
Analog amplifiers provide a continuous output signal proportional to the input. They are simple, cost-effective, and suitable for many applications.
Digital amplifiers convert the analog signal to digital format, offering benefits such as improved noise immunity and easier integration with digital systems.
These versatile amplifiers can work with various strain gauge-based sensors, including load cells.
For industrial weighing applications, consider amplifiers with features like:
- High accuracy and stability
- Multiple channel inputs for multi-load cell systems
- Robust construction for harsh environments
In laboratory settings, prioritize:
- High precision and resolution
- Low noise performance
- Flexibility in calibration and configuration
For applications involving dynamic forces:
- Choose amplifiers with high sampling rates
- Consider amplifiers with built-in filters for noise reduction
Proper installation and setup of your load cell amplifier are crucial for optimal performance. Here are some key steps:
1. Ensure proper wiring connections between the load cell and amplifier
2. Configure the amplifier settings according to your load cell specifications
3. Perform initial calibration using known weights or a calibration device
4. Verify the system's accuracy across the full measurement range
When working with load cell amplifiers, you may encounter some common issues:
1. Drift in measurements
2. Nonlinearity in output
3. Noise in the signal
4. Temperature-related errors
To address these issues:
- Check all connections and wiring
- Verify proper grounding and shielding
- Ensure the amplifier is properly calibrated
- Consider environmental factors like temperature and vibration
Some advanced load cell amplifiers offer built-in temperature compensation, which can improve accuracy in environments with fluctuating temperatures.
For applications requiring high accuracy across a wide range, consider amplifiers that support multi-point calibration.
Some modern load cell amplifiers include built-in data logging capabilities and advanced communication protocols like Modbus or Ethernet/IP.
A manufacturing plant needed to upgrade its weighing system for raw material handling. They chose a digital load cell amplifier with multiple channel inputs, allowing them to connect four load cells for a single platform scale. The amplifier's Modbus output enabled easy integration with their existing PLC system, improving process efficiency and accuracy.
A research laboratory required high-precision force measurements for material testing. They selected a high-resolution strain gauge amplifier with USB output. This allowed for direct connection to a computer for data acquisition and analysis, providing the accuracy and flexibility needed for their experiments.
The field of load cell amplifiers is continuously evolving. Some emerging trends include:
1. Increased integration of IoT capabilities for remote monitoring and control
2. Advanced signal processing techniques for improved accuracy and noise reduction
3. Miniaturization of amplifiers for space-constrained applications
4. Development of wireless load cell systems with integrated amplifiers
Choosing the right load cell amplifier is crucial for ensuring accurate and reliable force or weight measurements in your application. By considering factors such as signal input and output types, accuracy requirements, environmental conditions, and specific application needs, you can select an amplifier that will provide optimal performance for your measurement system. Remember to also consider future needs and emerging technologies when making your decision.
A load cell is a transducer that converts force or weight into an electrical signal, while a load cell amplifier is a device that amplifies and conditions this signal for use in measurement systems. The amplifier takes the small output from the load cell (typically in millivolts) and converts it into a stronger, standardized signal that can be easily read by data acquisition systems or controllers.
Calibrating a load cell amplifier typically involves the following steps:
1. Connect the load cell to the amplifier and power up the system
2. Apply a known zero load (usually the empty scale or unloaded sensor)
3. Adjust the amplifier's zero setting to match this zero load
4. Apply a known weight or force (ideally near the full scale of the load cell)
5. Adjust the amplifier's span or gain setting to match this known weight
6. Verify the calibration by testing with different weights across the measurement range
Some advanced amplifiers may offer digital calibration options or multi-point calibration for improved accuracy.
Not all load cell amplifiers are compatible with all load cells. You need to consider several factors:
- Input signal range: The amplifier must be able to handle the output range of your load cell
- Excitation voltage: The amplifier should provide the correct excitation voltage for your load cell
- Number of wires: Ensure the amplifier supports the number of wires in your load cell (e.g., 4-wire, 6-wire)
- Sensitivity: The amplifier should be able to work with the sensitivity of your load cell
Always check the specifications of both the load cell and the amplifier to ensure compatibility.
Digital load cell amplifiers offer several advantages over analog amplifiers:
- Better noise immunity: Digital signals are less susceptible to electromagnetic interference
- Easier integration with digital systems: Direct communication with computers or PLCs
- Advanced features: Many digital amplifiers offer built-in filtering, temperature compensation, and data logging
- Flexibility: Digital amplifiers often allow for software-based configuration and calibration
- Long-distance transmission: Digital signals can be transmitted over longer distances without signal degradation
However, analog amplifiers may still be preferred in some applications due to their simplicity, lower cost, and faster response times.
Environmental factors can significantly impact the performance of load cell amplifiers:
- Temperature: Changes in temperature can affect the amplifier's gain and offset, leading to measurement errors
- Humidity: High humidity can cause corrosion or short circuits in the amplifier circuitry
- Electromagnetic interference (EMI): Strong electromagnetic fields can induce noise in the amplifier's signal
- Vibration: Excessive vibration can cause mechanical stress on components and affect measurements
- Dust and contaminants: These can interfere with electrical connections and component performance
To mitigate these effects, choose amplifiers with appropriate environmental ratings (e.g., IP67 for dust and water resistance) and consider using shielded cables and proper grounding techniques. Some advanced amplifiers also offer built-in temperature compensation and EMI filtering.
