Load cells are essential components in various applications, from industrial weighing systems to medical devices. They convert mechanical force into an electrical signal, allowing for precise measurements. However, the raw output from a load cell is often too weak to be useful, which is where load cell amplifiers come into play. This article will guide you through the process of connecting a load cell amplifier, specifically the popular HX711 model, and provide insights into calibration and troubleshooting.
A load cell is a transducer that converts force or weight into an electrical signal. The most common type is the strain gauge load cell, which uses the principle of strain gauge technology to measure deformation. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change is then converted into a measurable signal.
Load cells are widely used in various industries, including:
- Manufacturing: For weighing raw materials and finished products.
- Transportation: In truck scales and weighbridges.
- Healthcare: In medical scales and patient monitoring systems.
A load cell amplifier, such as the HX711, is designed to amplify the small electrical signals produced by load cells. This amplification is crucial for accurate measurements, as it enhances the signal to a level that can be processed by microcontrollers or other devices. The HX711 is particularly popular due to its ease of use and compatibility with Arduino platforms.
- Load cell
- HX711 load cell amplifier
- Arduino (or similar microcontroller)
- Jumper wires
- Breadboard (optional)
1. Identify the Load Cell Wires: Most load cells have four or six wires, typically color-coded as follows:
- Red: Excitation+
- Black: Excitation-
- Green: Signal+
- White: Signal-
- Yellow (if present): Sense

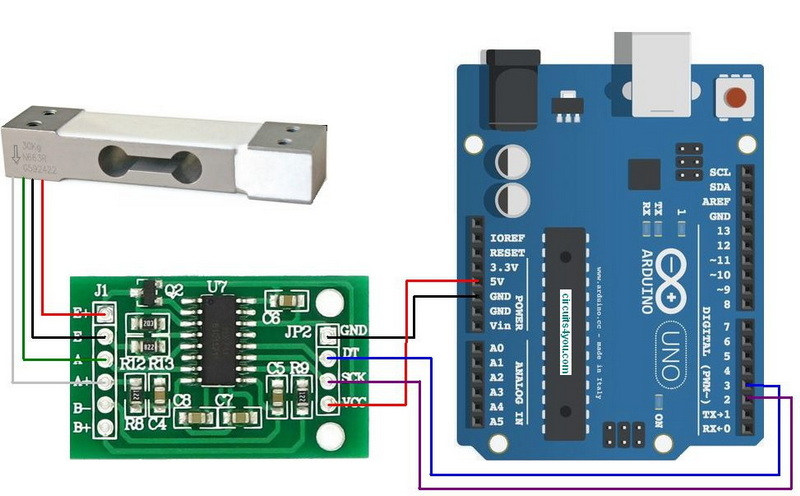

2. Connect the Load Cell to the HX711:
- For a 4-wire load cell:
- Connect the red wire to E+ on the HX711.
- Connect the black wire to E-.
- Connect the green wire to A+.
- Connect the white wire to A-.
- For a 6-wire load cell, connect the sense wires as per the manufacturer's instructions.
3. Connect the HX711 to the Arduino:
- Connect the VCC pin of the HX711 to the 5V pin on the Arduino.
- Connect the GND pin to the Arduino's ground.
- Connect the DT (data) pin to a digital pin on the Arduino (e.g., D2).
- Connect the SCK (clock) pin to another digital pin (e.g., D3).
- 4-Wire Configuration: Most common for basic applications.
- 6-Wire Configuration: Provides better accuracy by compensating for resistance in the wires.
Calibration is crucial for ensuring accurate measurements. Here's how to calibrate your load cell system:
1. Set Up the System: Ensure all connections are secure and the load cell is mounted properly.
2. Upload Calibration Code: Use a sample Arduino sketch that includes calibration factors. This code will help you read the raw data from the load cell.
3. Apply Known Weights: Place known weights on the load cell and record the readings. Adjust the calibration factor in your code until the readings match the known weights.
4. Test the System: After calibration, test the system with various weights to ensure accuracy.
Creating a digital weighing scale using a load cell and HX711 is a rewarding project. This section will guide you through the process.
- Load cell (e.g., 5kg)
- HX711 amplifier
- Arduino
- LCD display (optional)
- Power supply
1. Connect the Load Cell: Follow the wiring instructions provided earlier.
2. Set Up the Arduino: Install the HX711 library in your Arduino IDE.
3. Write the Code: Use sample code to read data from the load cell and display it on the LCD.
4. Test the Scale: Place weights on the scale and verify the readings.
- Inaccurate Readings: Ensure the load cell is calibrated correctly and that there are no mechanical interferences.
- No Output Signal: Check all connections and ensure the HX711 is powered correctly.
- Fluctuating Readings: This may be due to electrical noise. Ensure proper grounding and consider using shielded cables.
Connecting a load cell amplifier is a straightforward process that significantly enhances the functionality of load cells. By following the steps outlined in this article, you can successfully set up a load cell system for various applications. As technology advances, load cells and amplifiers will continue to play a crucial role in accurate measurement systems.
A load cell measures force or weight and produces a small electrical signal, while a load cell amplifier enhances this signal to make it usable for further processing.
Consider factors such as the maximum load capacity, accuracy, and environmental conditions when selecting a load cell.
Yes, you can connect multiple load cells to a single amplifier, but ensure they are properly configured to avoid inaccuracies.
Common mistakes include incorrect wiring, poor grounding, and failing to calibrate the system.
Regular calibration, proper installation, and minimizing electrical noise are key to maintaining measurement accuracy.
