In the world of electronics and automation, accurate weight measurement is crucial for various applications, from industrial scales to DIY projects. The combination of a load cell and the HX711 amplifier provides a reliable solution for measuring weight. This article will guide you through the process of connecting an HX711 to a load cell, programming an Arduino to read the values, and building a digital scale.
A load cell is a type of transducer that converts a force into an electrical signal. It is widely used in weighing applications. Load cells are essential components in scales and balances, providing accurate weight measurements.
There are several types of load cells, including:
- Strain Gauge Load Cells: The most common type, which uses strain gauges to measure deformation.
- Hydraulic Load Cells: These use fluid pressure to measure weight.
- Pneumatic Load Cells: These measure weight based on air pressure.
Load cells operate on the principle of strain gauges, which change resistance when subjected to force. This change in resistance is converted into an electrical signal, which can be measured and interpreted.
The HX711 is a precision 24-bit analog-to-digital converter (ADC) designed for weigh scales and industrial control applications. It is commonly used with load cells to amplify and convert the analog signal into a digital format that can be read by microcontrollers like Arduino.
- High precision with 24-bit resolution.
- Built-in low-noise amplifier.
- Two differential inputs for load cells.
- Simple interface with microcontrollers.
HX711 is used in various applications, including:
- Digital weighing scales.
- Industrial weighing systems.
- Load monitoring in construction.
To connect an HX711 to a load cell, you will need:
- Load cell (e.g., 5kg or 50kg).
- HX711 module.
- Arduino board (e.g., Arduino Uno).
- Jumper wires.
- Breadboard (optional).

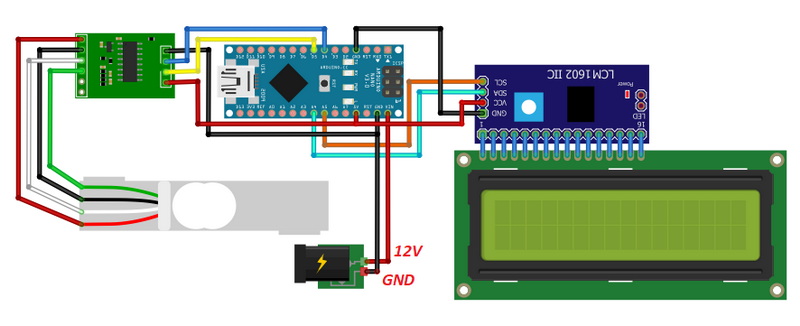

1. Connect the Load Cell to HX711:
- Connect the red wire (A+) of the load cell to the E+ pin on the HX711.
- Connect the black wire (A-) to the E- pin.
- Connect the white wire (B+) to the A+ pin.
- Connect the green wire (B-) to the A- pin.
2. Connect HX711 to Arduino:
- Connect the VCC pin of HX711 to the 5V pin on Arduino.
- Connect the GND pin to the GND on Arduino.
- Connect the DT pin to a digital pin (e.g., D2).
- Connect the SCK pin to another digital pin (e.g., D3).
To program the Arduino, you need to install the HX711 library. You can do this through the Arduino Library Manager.
- The code initializes the HX711 and sets the scale to zero.
- It continuously reads the weight and prints it to the Serial Monitor.
Calibration is essential to ensure accurate weight measurements. It involves adjusting the scale to account for any discrepancies.
1. Place a known weight on the load cell.
2. Use the `set_scale()` function to set the calibration factor based on the known weight.
3. Repeat the process until the readings are accurate.
- Use weights that are close to the maximum capacity of the load cell.
- Ensure the load cell is stable and not subjected to vibrations during calibration.
- Load cell.
- HX711 module.
- Arduino board.
- LCD display (optional).
- Power supply.
1. Follow the wiring instructions to connect the components.
2. Upload the Arduino code.
3. If using an LCD, modify the code to display the weight on the screen.
Once assembled, test the scale by placing known weights on it and verifying the readings.
- Ensure all connections are secure.
- Check for loose wires or incorrect pin connections.
- If the readings are inconsistent, recalibrate the scale.
- Ensure the load cell is not overloaded.
- Use shielded cables to reduce noise.
- Keep the setup away from electromagnetic interference sources.
Connecting an HX711 to a load cell is a straightforward process that enables accurate weight measurement for various applications. By following the steps outlined in this article, you can build your own digital scale and explore the possibilities of load cell technology.
The maximum weight a load cell can measure depends on its specifications. Common load cells can measure from a few grams to several tons.
Yes, HX711 can be used with various microcontrollers, including Raspberry Pi and ESP32.
If the load cell consistently provides incorrect readings or shows no response when weight is applied, it may be faulty.
Load cells are commonly used in industrial scales, medical devices, and automation systems.
To improve accuracy, ensure proper calibration, use high-quality components, and minimize environmental interference.
This comprehensive guide provides a solid foundation for anyone looking to connect an HX711 to a load cell and build a digital scale. With the right components and careful assembly, you can achieve precise weight measurements for your projects.
