Load cells are essential components in various measurement systems, converting mechanical force into electrical signals. They are widely used in industries ranging from manufacturing to healthcare for applications such as weighing scales and force measurement. On the other hand, PIC microcontrollers are versatile devices that can process data from sensors, making them ideal for interfacing with load cells. This article will guide you through the process of connecting a load cell to a PIC microcontroller, ensuring accurate weight measurements.
A load cell is a type of transducer that converts force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation caused by applied weight. When a load is applied, the strain gauge deforms, changing its electrical resistance, which can be measured and converted into a weight reading.
Load cells come in various types, including:
◆ Strain Gauge Load Cells: Most common, used in scales and industrial applications.
◆ Hydraulic Load Cells: Use fluid pressure to measure weight, suitable for heavy loads.
◆ Pneumatic Load Cells: Use air pressure, ideal for dynamic measurements.
These devices find applications in various fields, including industrial weighing, medical devices, and automotive testing.
To connect a load cell to a PIC microcontroller, you will need the following components:
◆ Load Cell: The sensor that measures weight.
◆ PIC Microcontroller: The processing unit that reads the data from the load cell.
◆ HX711 Module: An amplifier and analog-to-digital converter specifically designed for load cells.
◆ Connecting Wires: For making the necessary connections.
◆ Power Supply: To power the load cell and the microcontroller.
Each component plays a crucial role in ensuring accurate data acquisition and processing.
The wiring configuration of a load cell is critical for its operation. Load cells typically come in 4-wire or 6-wire configurations.

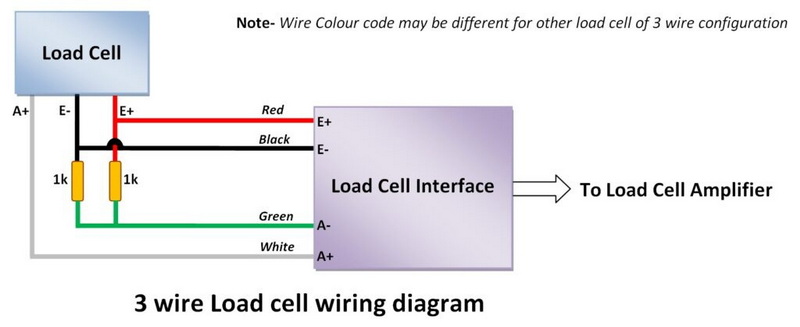

◆ 4-Wire Load Cell: This configuration includes two wires for excitation voltage and two for the output signal. The wiring diagram is as follows:
◆ 6-Wire Load Cell: This configuration adds two additional wires for sense connections, improving accuracy by compensating for wire resistance. The wiring diagram is shown below:
Correct wiring is essential for accurate measurements, as improper connections can lead to erroneous readings.
To connect a load cell to a PIC microcontroller, follow these steps:
1. Connect the Load Cell to the HX711 Module:
◆ Connect the red wire (E+) of the load cell to the E+ terminal of the HX711.
◆ Connect the black wire (E-) to the E- terminal.
◆ Connect the green wire (A+) to the A+ terminal and the white wire (A-) to the A- terminal.

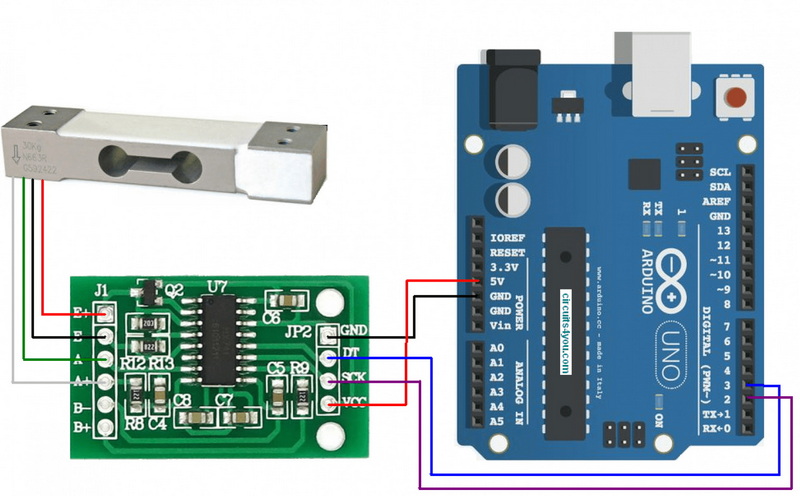

2. Connect the HX711 to the PIC Microcontroller:
◆ Connect the DT (data) pin of the HX711 to a digital input pin on the PIC.
◆ Connect the SCK (clock) pin to another digital pin on the PIC.
◆ Ensure the HX711 is powered appropriately.
3. Programming the PIC:
◆ Use a suitable programming language (like C) to write a program that initializes the HX711 and reads the data.
◆ Implement functions to convert the raw data into weight measurements.
Calibration is crucial for ensuring accurate weight measurements. To calibrate a load cell:
1. Set Up the Load Cell: Connect it to the PIC and ensure it is properly wired.
2. Apply Known Weights: Place known weights on the load cell and record the readings.
3. Calculate Calibration Factor: Use the formula:
Calibration Factor=Known WeightRaw ReadingCalibration Factor=Raw ReadingKnown Weight
4. Update the Code: Incorporate the calibration factor into your code to convert raw readings into accurate weight measurements.
Common pitfalls during calibration include not allowing the load cell to stabilize before taking readings and not using a range of weights for better accuracy.
Once the load cell is connected and calibrated, the next step is to process the signals. The HX711 outputs a digital signal that represents the weight. This signal must be interpreted correctly to display meaningful measurements.
1. Reading Data: Use the HX711 library functions to read the data.
2. Converting Data: Convert the raw data into weight using the calibration factor.
3. Displaying Data: Use an LCD or serial monitor to display the weight.
When connecting load cells to PIC microcontrollers, you may encounter several common issues:
◆ Incorrect Readings: Check the wiring and ensure that the load cell is calibrated correctly.
◆ No Output: Verify that the HX711 is powered and connected properly to the PIC.
◆ Fluctuating Readings: Ensure that the load cell is stable and not subjected to vibrations.
Connecting a load cell to a PIC microcontroller is a straightforward process that involves understanding the components, wiring configurations, and programming. With the right setup, you can achieve accurate weight measurements for various applications. As technology advances, load cells will continue to play a vital role in measurement systems across industries.
