Load cells are essential components in various industries, providing accurate measurements of weight and force. They are widely used in applications ranging from industrial scales to medical devices. However, the accuracy of load cells can be compromised if they are not properly calibrated. Calibration is the process of adjusting the output of a load cell to ensure that it accurately reflects the applied force. This article will explore the importance of load cell calibration, the methods used, and best practices to maintain accuracy.
Load cells are transducers that convert a force into an electrical signal. They are typically made of strain gauges, which change resistance when subjected to stress. There are several types of load cells, including:
- Compression Load Cells: Used to measure compressive forces.
- Tension Load Cells: Designed to measure tensile forces.
- Bending Beam Load Cells: Commonly used in scales and balances.
Each type of load cell has specific applications, and understanding these can help in selecting the right one for your needs.
Calibration is crucial for ensuring that load cells provide accurate measurements. Without proper calibration, the readings can be significantly off, leading to errors in weight measurement and potentially costly mistakes in industrial processes. For instance, in manufacturing, inaccurate weight measurements can result in product defects or safety hazards.
- Financial Loss: Inaccurate measurements can lead to over or undercharging customers.
- Safety Risks: In industries like construction, incorrect weight measurements can lead to equipment failures or accidents.
- Regulatory Issues: Many industries are required to adhere to strict measurement standards, and failure to calibrate can result in non-compliance.
There are several methods for calibrating load cells, each with its advantages and disadvantages. Here are some of the most common methods:
- Deadweight Calibration: This is the most accurate method, involving the application of known weights to the load cell. The output signal is adjusted to match the applied force. This method is often used in laboratory settings.

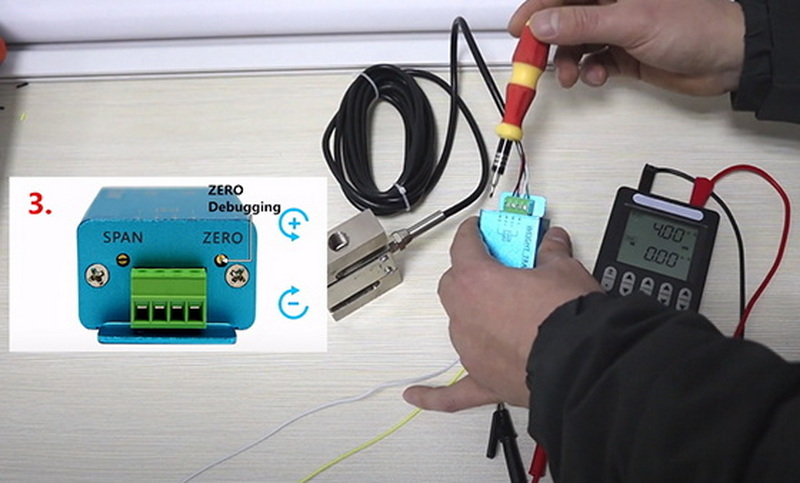

- Zero Calibration: This method involves adjusting the load cell's output signal to zero when no force is applied. It is a simple yet effective way to ensure that the load cell starts from a known baseline.
- Span Calibration: This method adjusts the output signal to match a known weight at a specific point in the load cell's range. It is essential for ensuring that the load cell provides accurate readings across its entire range.
1. Prepare the Load Cell: Ensure that the load cell is properly installed and free from any obstructions.
2. Apply Known Weights: Use certified weights to apply known forces to the load cell.
3. Record the Output: Measure the output signal from the load cell and compare it to the known weights.
4. Adjust the Calibration: If there are discrepancies, adjust the calibration settings until the output matches the known weights.
Several factors can affect the calibration of load cells, including:
- Environmental Conditions: Temperature and humidity can impact the performance of load cells. It is essential to calibrate load cells in a controlled environment to minimize these effects.
- Mechanical Factors: The installation of the load cell can also affect its performance. Ensure that the load cell is installed correctly and that there are no mechanical stresses applied to it during operation.
- Load Cell Type: Different types of load cells may require different calibration methods. Understanding the specific requirements of your load cell is crucial for accurate calibration.
To ensure accurate and reliable measurements, consider the following best practices for load cell calibration:
- Regular Maintenance: Schedule regular checks and maintenance for your load cells to ensure they remain in good working condition.
- Use Certified Equipment: Always use certified calibration weights and equipment to ensure accuracy.
- Document Calibration Procedures: Keep detailed records of calibration procedures and results to track performance over time.
- Train Personnel: Ensure that personnel responsible for calibration are adequately trained in the procedures and understand the importance of accuracy.
Even with proper procedures, issues can arise during calibration. Here are some common problems and their solutions:
- Inconsistent Readings: If the load cell provides inconsistent readings, check for mechanical issues such as misalignment or obstructions.
- Drift in Measurements: If measurements drift over time, consider environmental factors such as temperature changes or electrical interference.
- Calibration Failure: If the load cell fails to calibrate, inspect the equipment for damage or wear and consider consulting a professional for assistance.
Proper calibration of load cells is essential for ensuring accurate measurements in various applications. By understanding the importance of calibration, the methods available, and best practices, you can maintain the reliability and accuracy of your load cells. Regular checks and adherence to calibration standards will help prevent costly errors and ensure compliance with industry regulations.
- Load cells can be classified into compression, tension, and bending beam types, each serving different applications.
- Calibration frequency depends on usage and industry standards, but regular checks are recommended to maintain accuracy.
- Signs include inconsistent readings, drift in measurements, and failure to meet accuracy standards.
- Yes, but it is recommended to use certified equipment and follow proper procedures to ensure accuracy.
- Essential equipment includes certified weights, a calibration device, and a data acquisition system for recording measurements.
