Load cells are essential components in various applications, from industrial weighing systems to medical devices. They convert mechanical force into an electrical signal, allowing for precise measurements of weight or force. Proper installation and connection of load cells are crucial for ensuring accurate readings and reliable performance. This article will guide you through the process of hooking up a load cell, including wiring, integration with amplifiers, and calibration.
A load cell is a transducer that converts force into an electrical signal. The most common type is the strain gauge load cell, which uses the principle of strain gauges to measure deformation caused by applied force. Load cells are widely used in industries such as manufacturing, transportation, and healthcare for applications like weighing scales, force measurement, and load monitoring.
There are several types of load cells, including:
- Strain Gauge Load Cells: These are the most common and use strain gauges to measure deformation.
- Hydraulic Load Cells: These use fluid pressure to measure force and are often used in heavy-duty applications.
- Pneumatic Load Cells: These measure force through air pressure and are typically used in applications requiring high precision.
To successfully hook up a load cell, you will need the following components:
- Load Cell: The primary sensor that measures force.
- Amplifier: Such as the HX711, which amplifies the signal from the load cell for better accuracy.
- Microcontroller: An Arduino or Raspberry Pi to process the amplified signal and perform calculations.
- Wires and Connectors: For making the necessary electrical connections.

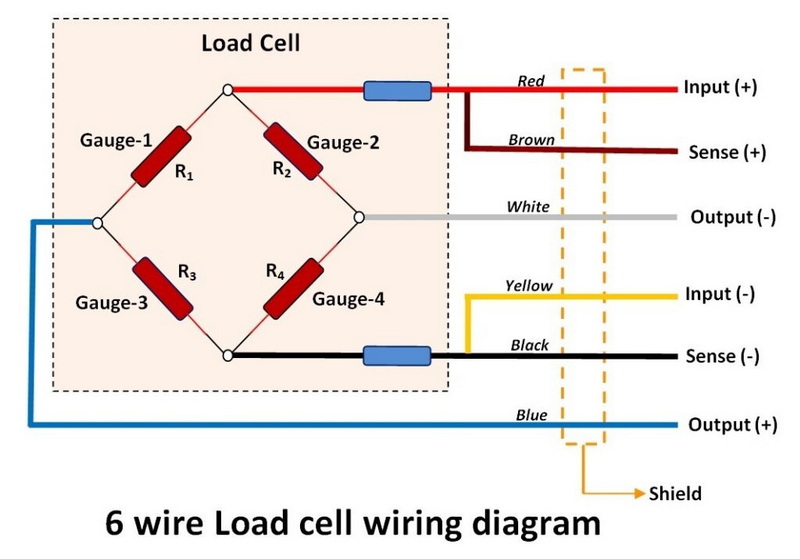

Wiring a load cell correctly is vital for its operation. Load cells typically come with four or six wires, depending on the configuration. The most common configurations are 3-wire and 4-wire setups.
- Red: Excitation + (power supply)
- Black: Excitation - (ground)
- Green: Signal + (output)
- White: Signal - (output)
Ensure that you follow the color coding and connect the wires to the appropriate terminals on the amplifier.
Once the load cell is wired, the next step is to connect it to an amplifier like the HX711. This amplifier is designed specifically for load cells and provides the necessary gain to the small signals generated by the load cell.
1. Connect the load cell wires to the HX711 according to the color coding.
2. Power the HX711 with a suitable voltage (usually 5V).
3. Use jumper wires to connect the HX711 to your microcontroller.
Calibration is essential for ensuring that your load cell provides accurate measurements. The process involves applying a known weight to the load cell and adjusting the output to match the expected value.
1. Place a known weight on the load cell.
2. Record the output reading from the microcontroller.
3. Adjust the calibration factor in your code until the output matches the known weight.
While working with load cells, you may encounter several common issues, such as:
- Non-responsive Load Cell: Check the wiring and connections.
- Inaccurate Readings: Ensure proper calibration and check for mechanical interference.
- Noise in Signal: Use shielded cables and proper grounding to minimize electromagnetic interference.
Properly hooking up a load cell is crucial for achieving accurate and reliable measurements. By following the guidelines outlined in this article, you can ensure that your load cell installation is successful. Remember to pay attention to wiring, calibration, and troubleshooting to maintain optimal performance.
A 3-wire load cell uses three wires for excitation and signal, while a 4-wire load cell has separate wires for excitation and signal, providing better accuracy.
To calibrate a load cell, apply a known weight, record the output, and adjust the calibration factor in your code until the output matches the known weight.
Yes, you can use a load cell with a Raspberry Pi by connecting it to an appropriate amplifier like the HX711 and using Python to read the data.
Load cells are commonly used in weighing scales, force measurement systems, and load monitoring in various industries.
Check the wiring connections, ensure the power supply is adequate, and verify that the load cell is not mechanically obstructed.
