How To Install A Load Cell for Optimal Performance?

Content Menu

Understanding Load Cells

>> Types of Load Cells

Preparing for Installation

>> Tools and Materials Needed

>> Site Assessment

Step-by-Step Installation Process

>> Step 1: Mounting the Load Cell

>> Step 2: Wiring the Load Cell

>> Step 3: Calibration

Best Practices for Load Cell Installation

Common Issues and Troubleshooting

>> Problem: Inaccurate Readings

>> Problem: Electrical Noise Interference

>> Problem: Load Cell Drift

Conclusion

Frequently Asked Questions

>> 1.What is a load cell?

>> 2.How do I choose the right load cell?

>> 3.What are the common types of load cells?

>> 4.How often should I calibrate my load cell?

>> 5.What should I do if my load cell is giving inaccurate readings?

Understanding Load Cells

Before diving into the installation process, it’s important to understand what a load cell is. A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and interpreted by a display or control system. Load cells are used in various applications, including weighing scales, industrial automation, and material testing.

Types of Load Cells

There are several types of load cells, including:

◆ Strain Gauge Load Cells: The most common type, which uses strain gauges to measure deformation.

◆ Hydraulic Load Cells: These use fluid pressure to measure weight.

◆ Pneumatic Load Cells: Similar to hydraulic cells but use air pressure.

◆ S-Type Load Cells: Ideal for tension and compression applications.

Understanding the type of load cell you are working with is essential for proper installation.

Preparing for Installation

Tools and Materials Needed

Before starting the installation, gather the following tools and materials:

◆ Load cell

◆ Mounting hardware (brackets, bolts, etc.)

◆ Wrench set

◆ Torque wrench

◆ Electrical wiring tools

◆ Multimeter for testing

◆ Leveling tools

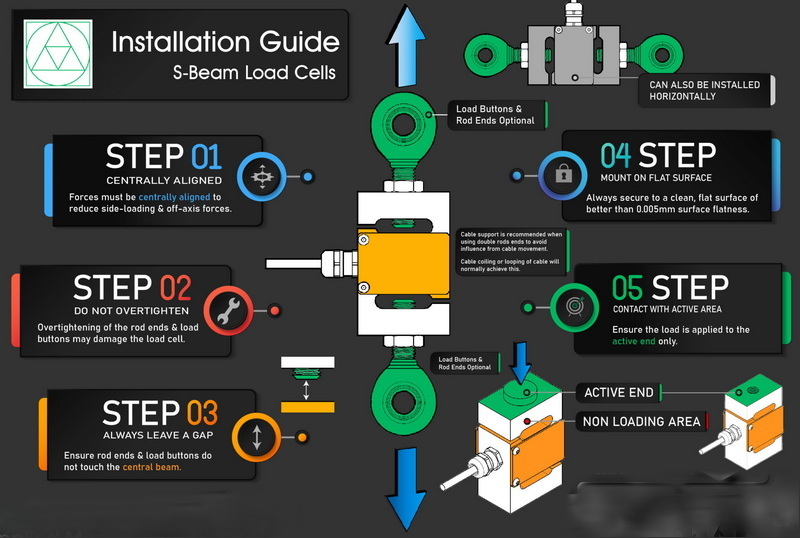

install a load cell2

Site Assessment

Conduct a thorough assessment of the installation site. Ensure that the area is clean and free from debris. The surface where the load cell will be mounted should be stable and capable of supporting the load without flexing or moving.

Step-by-Step Installation Process

Step 1: Mounting the Load Cell

1. Select the Mounting Location: Choose a location that minimizes the effects of external forces and vibrations. The load cell should be aligned with the load direction.

2. Prepare the Mounting Surface: Ensure the surface is flat and clean. If necessary, use shims to level the surface.

3. Install the Mounting Bracket: Secure the mounting bracket to the surface using appropriate bolts. Ensure that the bracket is aligned correctly to avoid misalignment of the load cell.

4. Attach the Load Cell: Place the load cell into the mounting bracket. Use the provided hardware to secure it in place. Ensure that the load cell is not subjected to any side loads.

Step 2: Wiring the Load Cell

1. Identify the Wires: Load cells typically have four or six wires. The most common configuration includes two for excitation voltage and two for the output signal.

2. Connect the Wires: Follow the manufacturer’s wiring diagram to connect the load cell to the signal conditioner or display. Ensure that connections are secure and insulated to prevent short circuits.

3. Test the Connections: Use a multimeter to check the continuity of the connections. Ensure that there are no shorts or open circuits.

Step 3: Calibration

1. Initial Calibration: After installation, perform an initial calibration of the load cell. This involves applying known weights and adjusting the output signal accordingly.

2. Zeroing the Load Cell: Ensure that the load cell reads zero when no load is applied. This step is crucial for accurate measurements.

3. Regular Calibration: Schedule regular calibration checks to maintain accuracy over time. Environmental factors and mechanical stress can affect the load cell’s performance.

Best Practices for Load Cell Installation

◆ Avoid Side Loads: Ensure that the load cell is aligned with the load direction to prevent side loads, which can lead to inaccurate readings.

◆ Use Proper Mounting Hardware: Always use the recommended mounting hardware to ensure stability and reliability.

◆ Minimize Environmental Interference: Protect the load cell from environmental factors such as moisture, dust, and extreme temperatures.

◆ Regular Maintenance: Conduct regular inspections and maintenance to ensure the load cell remains in optimal condition.

measure a load cell3

Common Issues and Troubleshooting

Problem: Inaccurate Readings

Solution: Check for misalignment and ensure that the load cell is not subjected to side loads. Recalibrate the load cell if necessary.

Problem: Electrical Noise Interference

Solution: Use shielded cables and ensure proper grounding to minimize electrical noise.

Problem: Load Cell Drift

Solution: Regularly calibrate the load cell to account for drift over time.

Conclusion

Installing a load cell correctly is vital for achieving optimal performance and accurate measurements. By following the steps outlined in this guide and adhering to best practices, you can ensure that your load cell operates effectively in its intended application.

set up a load cell4

Frequently Asked Questions

1.What is a load cell?

A load cell is a transducer that converts a force into an electrical signal, commonly used in weighing applications.

2.How do I choose the right load cell?

Consider factors such as the type of load (tension or compression), capacity, and environmental conditions when selecting a load cell.

3.What are the common types of load cells?

The most common types include strain gauge, hydraulic, pneumatic, and S-type load cells.

4.How often should I calibrate my load cell?

It is recommended to calibrate load cells regularly, especially if they are used in critical applications.

5.What should I do if my load cell is giving inaccurate readings?

Check for misalignment, ensure proper wiring, and recalibrate the load cell as needed.

By following these guidelines, you can ensure that your load cell installation is successful and that it provides accurate and reliable measurements for your applications.
