Load cells are crucial components in various industries, from manufacturing and aerospace to agriculture and healthcare. These precision instruments measure force and weight, providing accurate data for countless applications. Whether you're a seasoned engineer or a curious beginner, understanding how to install a load cell properly is essential for achieving optimal performance and reliability in your force measurement systems.In this comprehensive guide, we'll walk you through the process of installing a load cell, explore different types of load cells, discuss best practices for setup and calibration, and provide troubleshooting tips for common issues. By the end of this article, you'll have a solid foundation in load cell technology and be well-equipped to tackle your next force measurement project.
Before diving into the installation process, it's important to understand what load cells are and how they work. A load cell is a transducer that converts mechanical force into an electrical signal. This conversion is typically achieved through the use of strain gauges, which change their electrical resistance when subjected to force.
Load cells come in various shapes and sizes, each designed for specific applications and force ranges. Some common types include:
1. S-Beam load cells
2. Single point load cells
3. Compression load cells
4. Tension load cells
5. Button load cells
6. Canister load cells
Each type has its own unique characteristics and is suited for different applications. For example, S-Beam load cells are versatile and can measure both tension and compression forces, while single point load cells are ideal for platform scales and small hoppers.
Selecting the appropriate load cell for your application is crucial for accurate measurements and long-term reliability. Consider the following factors when choosing a load cell:
1. Capacity: Ensure the load cell can handle the maximum force you expect to measure, with some margin for safety.
2. Accuracy: Determine the level of precision required for your application.
3. Environmental conditions: Consider factors such as temperature, humidity, and exposure to chemicals or vibrations.
4. Mounting options: Choose a load cell that can be easily integrated into your existing setup.
5. Output signal: Select a load cell with an output signal compatible with your data acquisition system.
6. Budget: Balance performance requirements with cost constraints.
By carefully evaluating these factors, you can select a load cell that meets your specific needs and ensures optimal performance in your application.

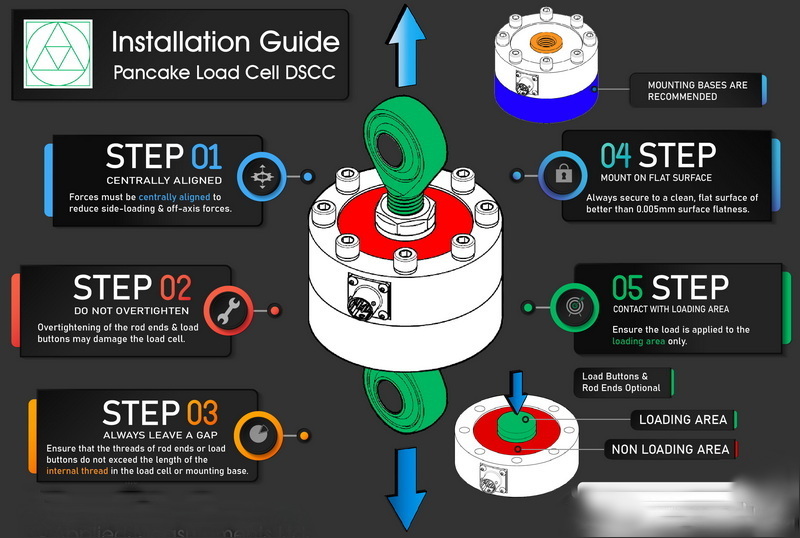

Now that you've chosen the right load cell, it's time to install it. Follow these steps for a successful installation:
Ensure that the mounting surface is clean, flat, and rigid. Any unevenness or debris can affect the load cell's performance and accuracy. Use a level to check the surface and make any necessary adjustments.
Proper alignment is crucial for accurate measurements. Most load cells have alignment marks or arrows indicating the direction of force application. Ensure that the load cell is oriented correctly according to these indicators.

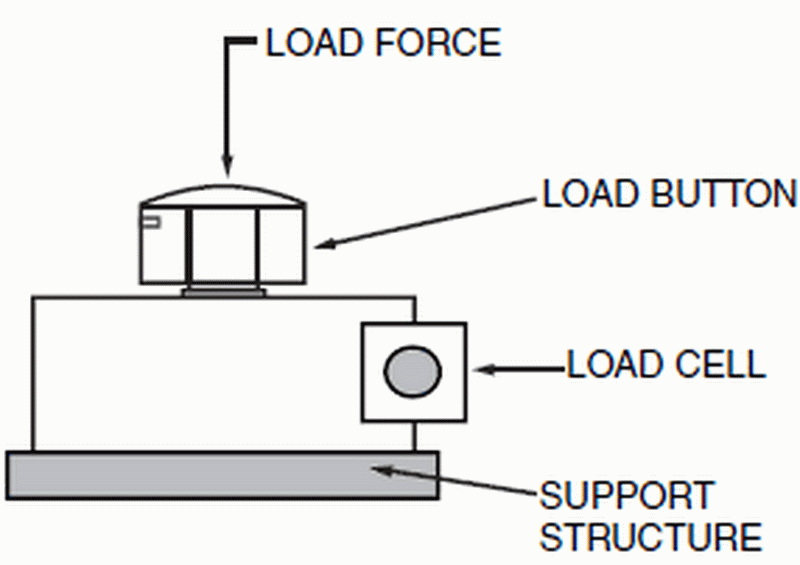

Use appropriate mounting hardware to secure the load cell in place. Be careful not to overtighten the bolts, as this can introduce pre-stress and affect the cell's performance. Follow the manufacturer's recommendations for torque specifications.
Depending on your application, you may need to install additional components such as load buttons, mounting plates, or rod end bearings. Ensure that these accessories are compatible with your load cell and installed according to the manufacturer's instructions.
Carefully connect the load cell to your data acquisition system or indicator. Most load cells use a four-wire or six-wire configuration. Refer to the load cell wiring diagram provided by the manufacturer to ensure proper connections.
Install any necessary protective covers or shields to guard the load cell against environmental factors such as moisture, dust, or physical damage.
After installation, calibration is essential to ensure accurate measurements. The calibration process typically involves the following steps:
1. Zero balance: Adjust the system to read zero when no load is applied.
2. Span calibration: Apply known weights to the load cell and adjust the system to display the correct values.
3. Linearity check: Verify that the load cell responds linearly across its entire range.
4. Repeatability test: Ensure consistent readings when the same load is applied multiple times.
It's recommended to perform calibration periodically or whenever the system is moved or modified. Some applications may require more frequent calibration to maintain accuracy.
To maximize the performance and longevity of your load cell, consider these best practices:
1. Avoid overloading: Never exceed the rated capacity of the load cell, even momentarily.
2. Minimize side loading: Ensure that forces are applied in the intended direction to prevent damage and inaccurate readings.
3. Use proper cabling: Use shielded cables and proper grounding techniques to minimize electrical noise.
4. Consider temperature compensation: If operating in environments with significant temperature fluctuations, use load cells with built-in temperature compensation or implement software corrections.
5. Regular maintenance: Inspect the load cell and its connections periodically for signs of wear, corrosion, or damage.
6. Keep records: Maintain detailed records of calibration, maintenance, and any issues encountered for future reference and troubleshooting.
Load cells find applications in a wide range of industries, including:
1. Manufacturing: Quality control, material testing, and process automation.
2. Transportation: Vehicle weighing, aircraft weight and balance systems.
3. Agriculture: Grain storage, livestock weighing, and yield monitoring.
4. Healthcare: Patient monitoring, pharmaceutical production.
5. Aerospace: Thrust measurement, structural testing.
6. Energy: Cable tension monitoring, wind turbine testing.
7. Construction: Crane load monitoring, structural health monitoring.
The versatility of load cells makes them indispensable in many fields where precise force or weight measurement is required.
Even with proper installation and maintenance, you may encounter issues with your load cell system. Here are some common problems and potential solutions:
1. Inconsistent readings:
- Check for loose connections or damaged cables.
- Verify that the load cell is properly aligned and not subject to side loading.
- Ensure that the mounting surface is stable and free from vibrations.
2. Drift or creep:
- Check for temperature fluctuations and consider implementing temperature compensation.
- Verify that the load cell is not overloaded or subject to constant stress.
3. Non-linearity:
- Recalibrate the system across its entire range.
- Check for mechanical interference or binding.
4. Zero balance issues:
- Verify that there is no residual load on the cell.
- Check for damage to the load cell or mounting hardware.
5. Electrical noise:
- Improve shielding and grounding of cables and equipment.
- Move potential sources of electromagnetic interference away from the load cell system.
By systematically addressing these issues, you can maintain the accuracy and reliability of your load cell system.
To get the most out of your load cell installation, consider these optimization techniques:
1. Use high-quality signal conditioning: Employ precision amplifiers and analog-to-digital converters to maximize the resolution and accuracy of your measurements.
2. Implement digital filtering: Use software algorithms to reduce noise and improve the stability of readings.
3. Consider multi-cell systems: For large-scale applications, using multiple load cells can improve accuracy and provide redundancy.
4. Utilize advanced calibration techniques: Employ methods such as multipoint calibration or in-situ calibration to account for non-linearities and system-specific characteristics.
5. Integrate with data analysis software: Use sophisticated software tools to process and analyze load cell data in real-time, enabling advanced applications such as predictive maintenance or process optimization.
6. Implement environmental controls: Where possible, control temperature, humidity, and other environmental factors to minimize their impact on load cell performance.
By implementing these optimization strategies, you can push the boundaries of what's possible with load cell technology and achieve even greater precision and reliability in your force measurement applications.
Installing and optimizing a load cell system requires careful consideration of various factors, from selecting the right type of load cell to implementing best practices in mounting, calibration, and maintenance. By following the guidelines outlined in this article, you'll be well-equipped to tackle load cell installations with confidence and achieve accurate, reliable force measurements in your applications.
Remember that load cell technology is continually evolving, with new innovations in materials, designs, and signal processing techniques. Stay informed about the latest developments in the field to ensure that your force measurement systems remain at the cutting edge of performance and reliability.
A1: The frequency of calibration depends on various factors, including the application, environmental conditions, and regulatory requirements. As a general rule, it's recommended to calibrate load cells at least once a year. However, some critical applications may require more frequent calibration, such as monthly or even weekly. Always follow the manufacturer's recommendations and any industry-specific guidelines.
A2: It's not recommended to use a load cell outside its specified temperature range. Doing so can lead to inaccurate measurements and potentially damage the load cell. If you need to operate in extreme temperatures, look for load cells specifically designed for those conditions or implement temperature control measures to keep the load cell within its rated range.
A3: Tension load cells are designed to measure pulling forces, while compression load cells measure pushing forces. The main difference lies in their construction and how they're mounted. Some load cells, like S-beam types, can measure both tension and compression forces. Always choose a load cell that matches the type of force you need to measure in your application.
A4: To protect your load cell from overloading, consider the following measures:
1. Choose a load cell with a capacity higher than your maximum expected load.
2. Install mechanical stops to prevent excessive force application.
3. Use electronic overload protection circuits or software limits in your data acquisition system.
4. Implement proper training for operators to avoid accidental overloading.
5. Consider using load cells with built-in overload protection features.
A5: It's generally not recommended to attempt repairing a load cell yourself. Load cells are precision instruments, and any repairs require specialized knowledge, tools, and calibration equipment. Improper repairs can lead to inaccurate measurements and potentially unsafe conditions. If you suspect your load cell is damaged, contact the manufacturer or a certified repair service for assessment and repair options. In many cases, replacing the load cell may be more cost-effective than attempting repairs.
