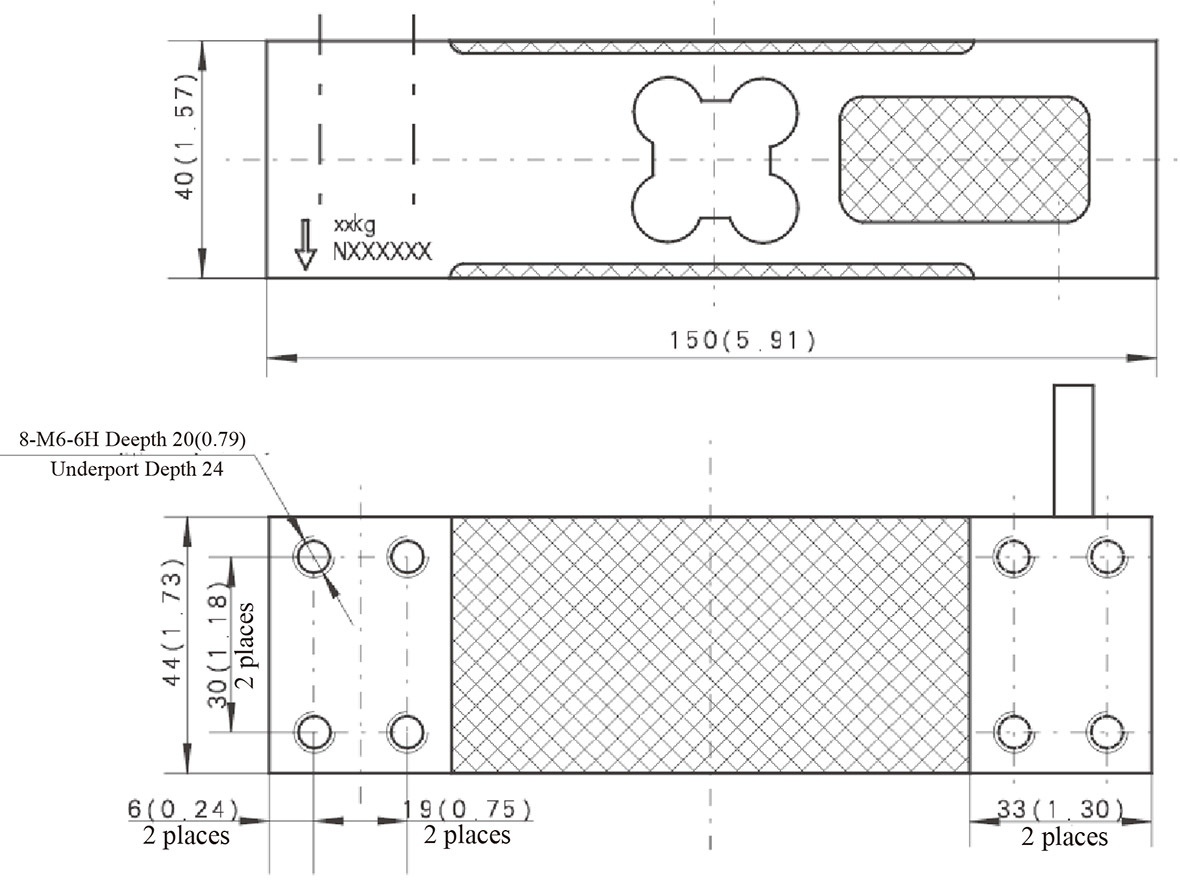

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
| Load Direction | Recommended selection model |
|
|

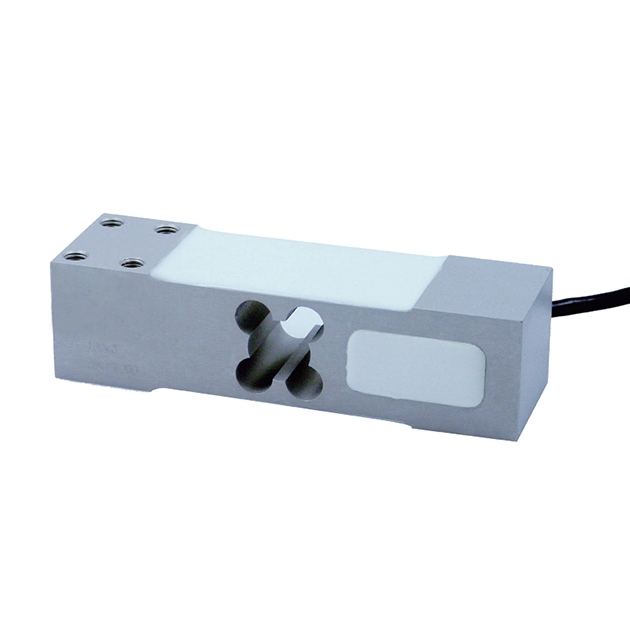

▶ Aluminium-alloy IP65 single point load cell. ▶Colourless anodized ▶Suitable for pricing scales, bench scales, etc. ▶Maximum platform size: 450 x 450 mm ▶ Certificate no. 11-062 ▶Test certificate no. TC7836 Revision 1 C of C no R60/2000-NL 1-10.34 |
| Specifications |
| Specfications | Technique | ||
| Maximum capacity (Emax) | 50/80/100/150/200/250/300/350/400/500kg | ||
| Output sensitivity (=FS) | 2.0 ± 0.2mV/V | ||
| Accuracy class | C3 | C4 | C5 |
| Combined error | ±0.02%FS | ±0.015%FS | ±0.01%FS |
| Creep | ±0.0167%FS/30min | ±0.0125%FS/30min | ±0.01%FS/30min |
| Temperature effect on sensitivity | ±0.0175%FS/10℃ | ±0.0131%FS/10℃ | ±0.01%FS/10℃ |
| Temperature effect on zero | ±0.02%FS/10℃ | ±0.012%FS/10℃ | ±0.009%FS/10℃ |
| Zero balance | ±2%FS | ||
| Compensated temperature | -10 ~ 40℃ | ||
| Operating temperature | -35 ~ 65℃ | ||
| Input resistance | 406 ± 6Ω | ||
| Output resistance | 350 ± 3Ω | ||
| Insulation resistance | ≥ 5000 (50VDC)MΩ | ||
| Excitation, recommended voltage | 5 ~ 12VDC | ||
| Excitation maximum | 18VDC | ||
| Safe overload | 120%FS | ||
| Ultimate overload | 150%FS | ||
| Protection Class | IP65 | ||
| Cable Specifications | Φ5.3MM | ||
| Cable Length | 2m | ||
| Recommended installation size | 600x600mm | ||
| Corner Length | 0.02% load value/100mm | ||
| Recommended torque on fixation | 20N.m | ||

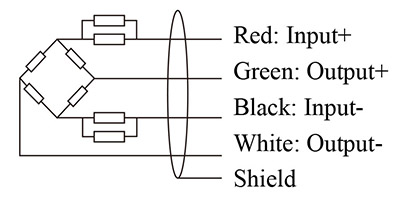

| Wiring | Red: Input+, Blue：Sense+，Green: Output+, Shield: Transparent, Black: Input-,Brown：Sense-，White: Output- | ||

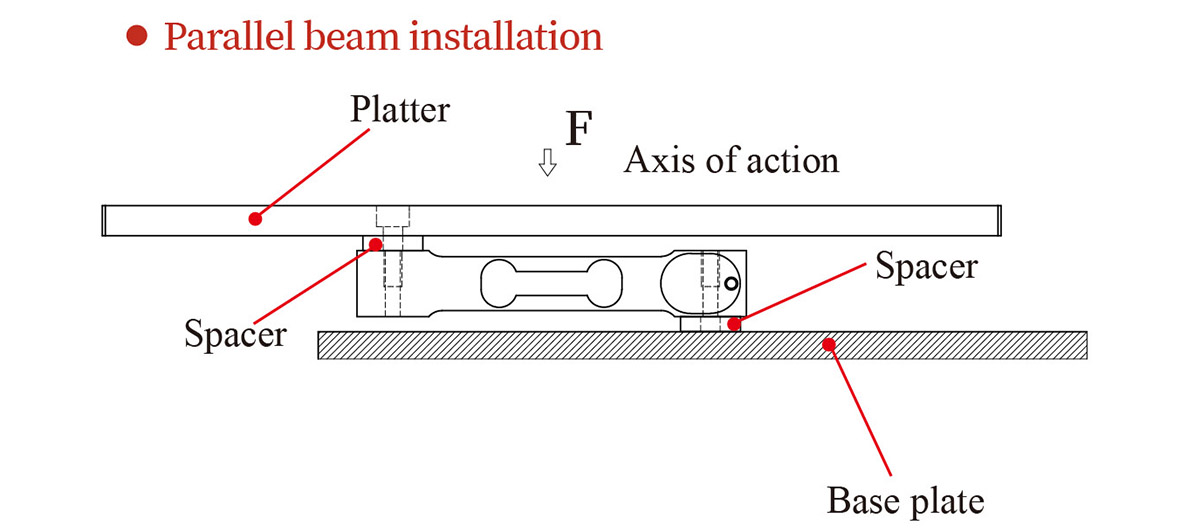

| Installation |
| Delivery Configurations |
