In the realm of electronics and IoT, the ability to measure weight accurately is crucial for various applications, from industrial scales to smart home devices. Load cells, which convert force into an electrical signal, are essential components in these systems. When combined with the NodeMCU, a popular microcontroller based on the ESP8266 Wi-Fi module, users can create innovative and connected weighing solutions. This article will guide you through the process of interfacing a load cell with NodeMCU, providing insights into the necessary components, wiring, programming, and calibration.
A load cell is a transducer that converts a force or weight into an electrical signal. It is widely used in weighing applications due to its accuracy and reliability. Load cells come in various types, including strain gauge, hydraulic, and pneumatic, with strain gauge load cells being the most common in electronic applications.
1. Strain Gauge Load Cells: These are the most prevalent type, utilizing strain gauges to measure deformation.
2. Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications.
3. Pneumatic Load Cells: These measure weight based on air pressure and are less common but useful in specific scenarios.
Load cells operate on the principle of converting mechanical force into an electrical signal. When weight is applied, the load cell deforms slightly, causing a change in resistance in the strain gauges. This change is then converted into a digital signal by an amplifier, such as the HX711, which can be read by a microcontroller like NodeMCU.
NodeMCU is an open-source IoT platform based on the ESP8266 Wi-Fi module. It allows developers to create connected devices easily, making it a popular choice for hobbyists and professionals alike.
- Wi-Fi Connectivity: Enables remote monitoring and control.
- Ease of Use: Supports Lua and Arduino programming languages.
- Cost-Effective: Affordable and widely available.
NodeMCU is used in various IoT applications, including smart home devices, environmental monitoring, and industrial automation. Its ability to connect to the internet makes it ideal for projects requiring remote data access.
To successfully interface a load cell with NodeMCU, you will need the following components:
- Load Cell: The sensor for measuring weight.
- HX711 Amplifier: Converts the load cell's analog signal to a digital signal.
- NodeMCU: The microcontroller for processing data.
- Breadboard and Jumper Wires: For making connections.
- Power Supply: To power the components.

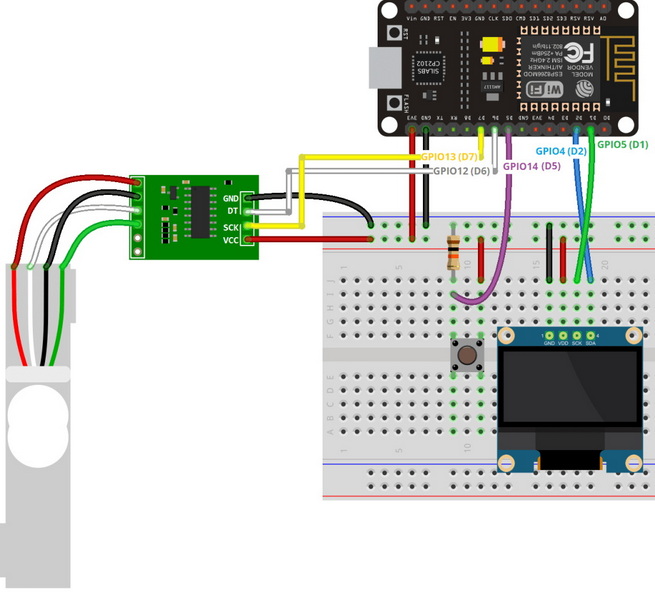

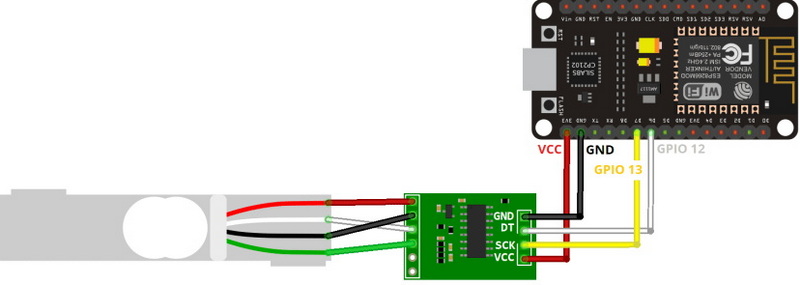

1. Connect the load cell to the HX711 amplifier. The load cell typically has four wires: red (VCC), black (GND), white (DATA), and green (SCK).
2. Connect the HX711 to the NodeMCU:
- VCC to 3.3V
- GND to GND
- DATA to a digital pin (e.g., D2)
- SCK to another digital pin (e.g., D1)
To program the NodeMCU, you will need the Arduino IDE installed on your computer. Ensure you have the ESP8266 board package added to your IDE.
- The `HX711` library is included to facilitate communication with the amplifier.
- The `scale.begin()` function initializes the data and clock pins.
- The `scale.get_units()` function retrieves the weight in units, averaging over ten readings for accuracy.
Calibration is essential to ensure accurate weight measurements. Without proper calibration, the readings may be incorrect, leading to unreliable data.
1. Place a known weight on the load cell.
2. Record the reading from the NodeMCU.
3. Adjust the calibration factor in the code until the reading matches the known weight.

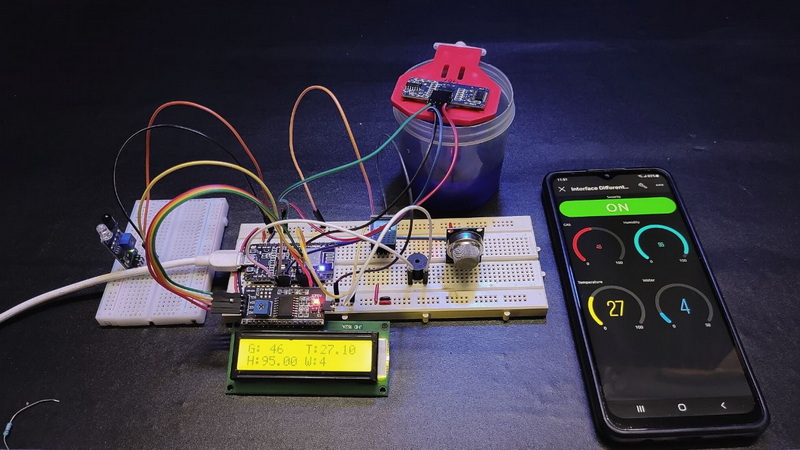

Once the load cell is interfaced and calibrated, you can integrate it with IoT platforms like Blynk or ThingSpeak to monitor weight remotely.
You can create a simple web server on the NodeMCU to display the weight readings in real-time. This allows users to access the data from any device connected to the internet.
- Inaccurate Readings: Ensure the load cell is calibrated correctly and check for any mechanical issues.
- Connection Issues: Verify all wiring connections and ensure the NodeMCU is powered properly.
Interfacing a load cell with NodeMCU opens up a world of possibilities for creating smart weighing solutions. By following the steps outlined in this article, you can build an accurate and reliable IoT weighing scale. The integration of load cells with microcontrollers like NodeMCU not only enhances measurement capabilities but also allows for remote monitoring and data analysis, paving the way for innovative applications in various fields.
The maximum weight a load cell can measure depends on its specifications. Common load cells can measure anywhere from a few grams to several tons.
Yes, as long as the load cell is compatible with the HX711 amplifier, it can be used with NodeMCU.
To calibrate your load cell, place a known weight on it, record the reading, and adjust the calibration factor in your code until the reading matches the known weight.
Load cells are used in various applications, including industrial scales, retail scales, medical devices, and smart home systems.
You can connect your load cell to a smartphone by integrating the NodeMCU with an IoT platform that supports mobile applications, allowing you to view weight data remotely.
This comprehensive guide provides a solid foundation for anyone looking to interface a load cell with NodeMCU, enabling the creation of innovative and connected weighing solutions.
