A load cell is a crucial component in various applications, from industrial scales to consumer electronics. It converts mechanical force into an electrical signal, allowing for precise weight measurements. This article will guide you through the process of making a 5 kg load cell, detailing the materials needed, the assembly process, and calibration techniques.
Load cells come in various types, including strain gauge, hydraulic, and pneumatic. The most common type used in electronic scales is the strain gauge load cell. These devices work by measuring the deformation of a material when a load is applied. The key components of a load cell include the strain gauge, which detects the deformation, and the Wheatstone bridge circuit, which converts the mechanical strain into an electrical signal.

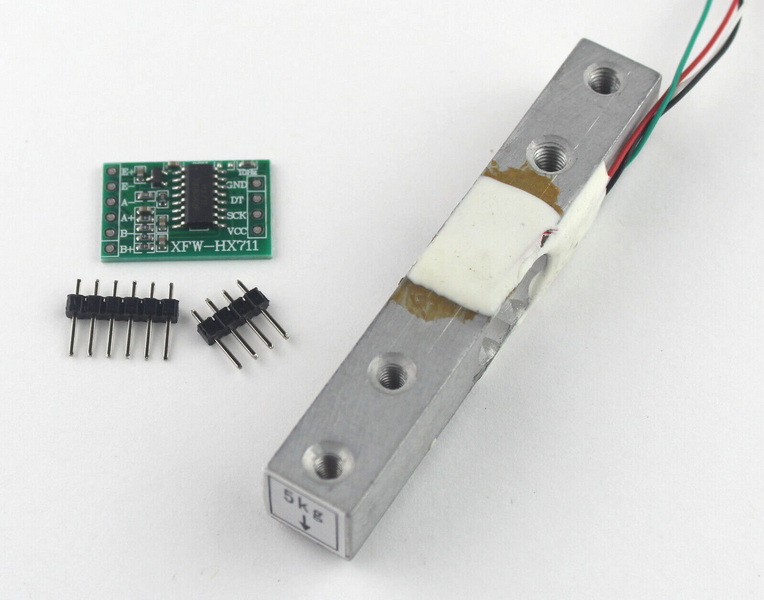

To create a 5 kg load cell, you will need the following materials:
- Strain Gauge: The primary sensor that detects weight.
- Load Cell Body: Typically made of aluminum or steel, this provides the structural integrity.
- HX711 Amplifier: This module amplifies the signal from the load cell for accurate readings.
- Arduino Microcontroller: Used to process the signals and display the weight.
- Wires and Connectors: For making electrical connections.
- Epoxy or Adhesive: To secure the strain gauge to the load cell body.
Start by gathering all the materials listed above. Ensure that your workspace is clean and organized to facilitate the assembly process.
1. Attach the Strain Gauge: Use epoxy to securely attach the strain gauge to the load cell body. Ensure it is positioned correctly to measure the deformation accurately.
2. Connect the Wires: The strain gauge will have four wires (typically red, black, green, and white). Connect these to the HX711 amplifier according to the color coding:
- Red to E+
- Black to E-
- Green to A+
- White to A-
1. Connect the HX711 to the Arduino using jumper wires. The typical connections are:
- VCC to 5V
- GND to Ground
- DT (Data) to a digital pin (e.g., D2)
- SCK (Clock) to another digital pin (e.g., D3)
Upload the appropriate code to the Arduino to read the data from the HX711. This code will include calibration factors to ensure accurate weight readings.
Calibration is essential for ensuring that your load cell provides accurate measurements. Follow these steps:
1. Tare the Scale: Remove any weight from the load cell and set the reading to zero.
2. Apply a Known Weight: Place a known weight on the load cell and record the reading.
3. Adjust the Calibration Factor: Modify the calibration factor in your Arduino code until the reading matches the known weight.
- Inconsistent Readings: Ensure that the load cell is securely mounted and that there are no loose connections.
- Zero Offset: If the scale does not read zero when unloaded, re-tare the scale.
Load cells are used in various fields, including:
- Industrial Applications: In manufacturing and logistics for weighing products.
- Consumer Electronics: In digital scales for home use.
- Research and Development: In laboratories for precise measurements.
- No Output Signal: Check all connections and ensure the HX711 is powered.
- Erratic Readings: Ensure the load cell is stable and not subjected to vibrations.
- Regularly check the calibration of your load cell.
- Use shielded cables to reduce electrical noise.
Building a 5 kg load cell is a rewarding project that enhances your understanding of electronics and measurement technology. With the right materials and careful assembly, you can create a functional load cell for various applications. As technology advances, load cells will continue to play a vital role in precision measurement.
A load cell is a transducer that converts mechanical force into an electrical signal, allowing for weight measurement.
Calibrate a load cell by taring it to zero, applying a known weight, and adjusting the calibration factor in your code until the reading matches.
The main types of load cells include strain gauge, hydraulic, and pneumatic load cells.
Yes, load cells can measure both weight and force, depending on the application.
The HX711 amplifier is used to amplify the low voltage output from a load cell, making it suitable for processing by a microcontroller like Arduino.
This article provides a comprehensive guide to making a 5 kg load cell, ensuring you have the knowledge and resources to successfully complete your project.
