Hydraulic load cells are essential devices used to measure force or weight by converting mechanical force into hydraulic pressure. These devices are widely utilized in various industries, including construction, manufacturing, and research, due to their high accuracy and reliability. This article will guide you through the process of building a hydraulic load cell, explaining its components, working principles, and applications.

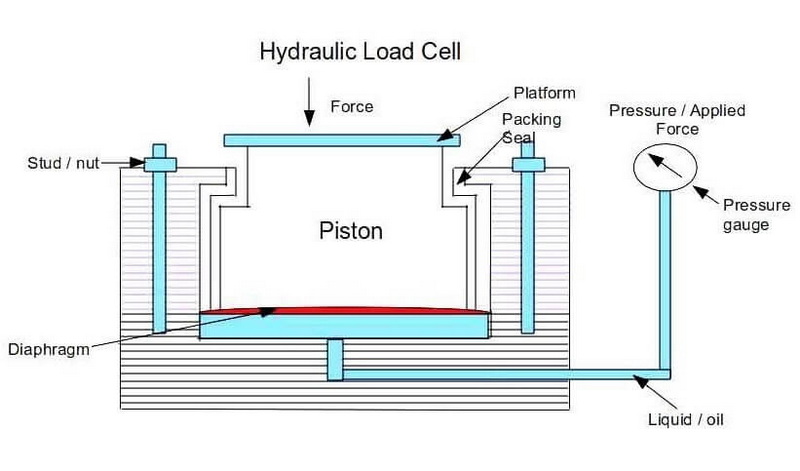

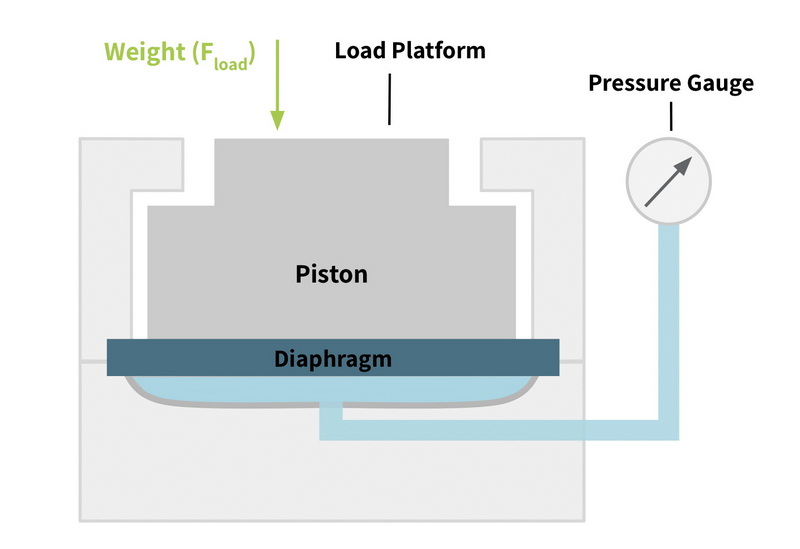

A hydraulic load cell is a type of force transducer that operates based on the principles of hydraulics. It consists of a piston and cylinder arrangement that measures the pressure change caused by an applied force. The primary components of a hydraulic load cell include:
- Piston: Converts the applied force into hydraulic pressure.
- Diaphragm: Seals the hydraulic fluid and transmits pressure changes.
- Pressure Gauge: Displays the measured pressure, which correlates to the applied force.

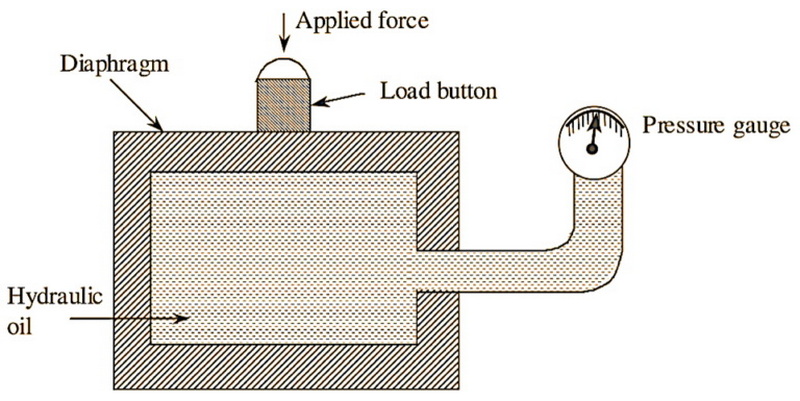

Hydraulic load cells operate based on Pascal's Law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions. When a force is applied to the load cell, it compresses the fluid within the cylinder, resulting in an increase in pressure. This pressure change is then measured by the pressure gauge, allowing for the calculation of the applied force.
To construct a hydraulic load cell, you will need the following materials:
- Piston and Cylinder: These can be sourced from hydraulic kits or fabricated from metal.
- Diaphragm: A flexible material that can withstand pressure changes.
- Hydraulic Fluid: Typically oil, which transmits pressure.
- Pressure Gauge: To measure the pressure changes.
- Seals and Connectors: To ensure a leak-proof assembly.
- Wrenches and screwdrivers
- Drill and drill bits
- Measuring tools (calipers, ruler)
- Safety equipment (gloves, goggles)
1. Prepare the Piston and Cylinder: Ensure that the piston fits snugly within the cylinder to prevent fluid leakage.
2. Install the Diaphragm: Place the diaphragm at the top of the cylinder, ensuring it is securely fastened.
3. Fill with Hydraulic Fluid: Carefully fill the cylinder with hydraulic fluid, avoiding air bubbles.
4. Attach the Pressure Gauge: Connect the pressure gauge to the cylinder, ensuring it is calibrated for accurate readings.
5. Seal the Assembly: Use seals and connectors to secure all joints and prevent leaks.
6. Test the Load Cell: Apply known weights to the load cell and verify that the pressure gauge reflects the correct pressure.
Calibration is crucial for ensuring the accuracy of hydraulic load cells. It involves comparing the load cell's readings against known weights and adjusting the system accordingly. Calibration can be performed using the following methods:
- Static Calibration: Apply known weights and record the pressure readings.
- Dynamic Calibration: Use a testing machine to apply varying loads and measure the response.
Hydraulic load cells are used in various applications, including:
- Material Testing: Measuring the strength and durability of materials.
- Industrial Weighing: Used in scales for weighing heavy loads in manufacturing.
- Research and Development: Employed in laboratories for precise force measurements.
Hydraulic load cells offer several advantages:
- High Accuracy: They provide precise measurements, making them ideal for critical applications.
- Durability: Resistant to environmental factors such as temperature and humidity.
- Versatility: Suitable for a wide range of applications across different industries.
While hydraulic load cells are beneficial, they also come with challenges:
- Maintenance Requirements: Regular checks on fluid levels and seals are necessary to ensure proper functioning.
- Response Time: They may have a slower response time compared to electronic load cells, which can be a limitation in fast-paced environments.
Building a hydraulic load cell is a rewarding project that can enhance your understanding of force measurement technology. By following the outlined steps and understanding the principles behind hydraulic load cells, you can create a reliable device for various applications. As technology advances, the future of hydraulic load cells looks promising, with potential improvements in accuracy and efficiency.
The main components include a piston, diaphragm, pressure gauge, and hydraulic fluid.
Calibration involves applying known weights and adjusting the system based on the pressure readings.
They are used in construction, manufacturing, research, and material testing.
Hydraulic load cells offer high accuracy, durability, and resistance to environmental factors.
Check for fluid leaks, ensure proper calibration, and verify that all components are securely connected.
For further exploration, you can watch this [video on building a hydraulic load cell](https://www.youtube.com/watch?v=r2v7QpJB7GY) for a practical demonstration.
