Load cells are essential components in various applications, particularly in weighing systems. They convert mechanical force into an electrical signal, allowing for precise weight measurements. Interfacing a load cell with an Arduino microcontroller enables hobbyists and engineers to create custom digital scales and other measurement devices. This article will guide you through the process of building a load cell interface with Arduino, covering everything from wiring to programming and calibration.
A load cell is a transducer that converts a force into an electrical signal. It is commonly used in weighing scales and industrial applications. Load cells can be classified into several types, including strain gauge, hydraulic, and pneumatic load cells. The most common type used in DIY projects is the strain gauge load cell, which operates on the principle of resistance change when a force is applied.
1. Strain Gauge Load Cells: These are the most widely used load cells, consisting of a metal element that deforms under load, changing its electrical resistance.
2. Hydraulic Load Cells: These use fluid pressure to measure weight and are typically used in heavy-duty applications.
3. Pneumatic Load Cells: These measure weight by the pressure of air in a chamber and are less common in DIY projects.
Load cells operate based on the principle of a Wheatstone bridge, which allows for precise measurement of resistance changes. When a load is applied, the strain gauge deforms, causing a change in resistance that can be measured and converted into a weight reading.
To build a load cell interface with Arduino, you will need the following components:
- Load Cell: A strain gauge load cell (e.g., 5kg or 40kg capacity).
- HX711 Module: An amplifier that converts the small signal from the load cell into a readable format for the Arduino.
- Arduino Board: Any compatible Arduino board (e.g., Arduino Uno).
- Breadboard and Jumper Wires: For making connections.
- Power Supply: To power the Arduino and load cell.

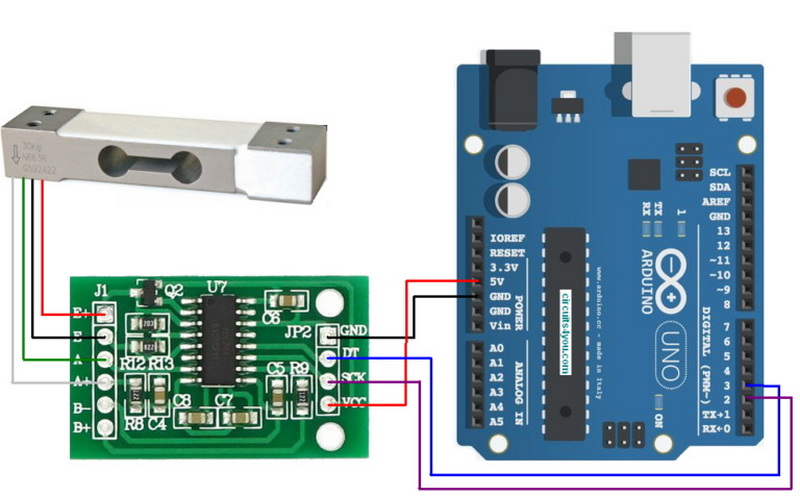

1. Connect the Load Cell to the HX711 Module:
- Connect the red wire (excitation+) of the load cell to the E+ terminal on the HX711.
- Connect the black wire (excitation-) to the E- terminal.
- Connect the white wire (signal+) to the A+ terminal.
- Connect the green wire (signal-) to the A- terminal.
2. Connect the HX711 to the Arduino:
- Connect the VCC pin of the HX711 to the 5V pin on the Arduino.
- Connect the GND pin of the HX711 to the GND pin on the Arduino.
- Connect the DT (data) pin of the HX711 to a digital pin on the Arduino (e.g., pin 3).
- Connect the SCK (clock) pin of the HX711 to another digital pin (e.g., pin 2).
1. Download and install the Arduino IDE from the official Arduino website.
2. Install the HX711 library by going to Sketch > Include Library > Manage Libraries, then search for "HX711" and install it.
- The `HX711` library is included to facilitate communication with the HX711 module.
- The `scale.begin()` function initializes the HX711 with the specified data and clock pins.
- The `scale.set_scale()` function sets the calibration factor, which you will adjust during calibration.
- The `scale.tare()` function resets the scale to zero, allowing for accurate weight measurements.
Calibration is crucial for ensuring accurate weight measurements. It involves adjusting the scale factor in your code based on known weights.
1. Place a known weight on the load cell.
2. Note the reading displayed in the Serial Monitor.
3. Adjust the scale factor in the code until the reading matches the known weight.
4. Repeat the process for multiple weights to ensure accuracy.

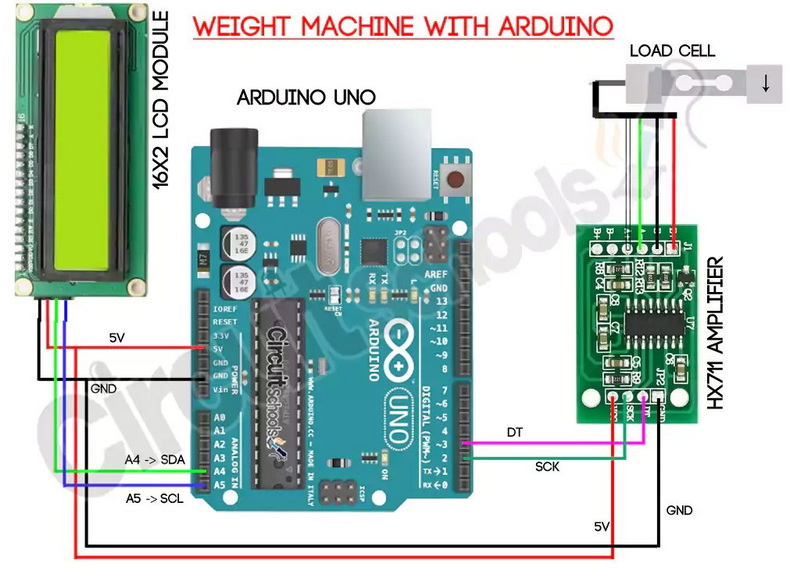

To create a complete digital scale, you can integrate an LCD display to show the weight readings. Connect the LCD to the Arduino and modify the code to display the weight on the screen.
1. Secure the load cell to a stable platform.
2. Connect the HX711 and Arduino as described.
3. Ensure all connections are secure and test the setup.
- Inaccurate Readings: Ensure the load cell is calibrated correctly and that there are no mechanical interferences.
- No Output: Check all connections and ensure the HX711 is powered correctly.
- Fluctuating Readings: Ensure the load cell is stable and not subjected to vibrations.
Building a load cell interface with Arduino is a rewarding project that enhances your understanding of electronics and programming. With the right components and careful calibration, you can create a highly accurate digital scale suitable for various applications, from simple weighing tasks to more complex measurement systems.
The maximum weight a load cell can measure depends on its specifications. Common load cells can measure anywhere from a few grams to several tons.

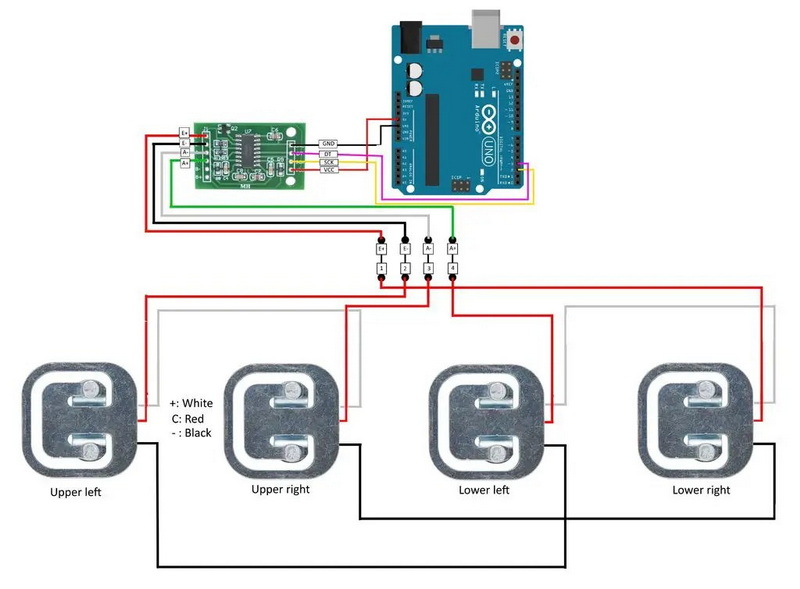

Yes, you can use multiple load cells with one Arduino by connecting them to a single HX711 module or using multiple HX711 modules.
To ensure accurate readings, calibrate your load cell regularly and ensure it is mounted securely without any mechanical interference.
Load cells are commonly used in industrial scales, medical devices, and various automation systems where weight measurement is crucial.
To improve stability, ensure the load cell is mounted on a solid surface, minimize vibrations, and use a stable power supply.
This article provides a comprehensive guide to interfacing a load cell with Arduino, complete with wiring instructions, programming tips, and troubleshooting advice. By following these steps, you can successfully create your own digital scale.
