Load cells are essential components in various industries, from manufacturing and aerospace to healthcare and agriculture. These devices convert mechanical force into measurable electrical signals, enabling precise weight and force measurements. In this comprehensive guide, we'll explore the intricacies of load cell design, construction, and application, providing you with the knowledge to create your own load cell or better understand these crucial sensors.
Before delving into the construction process, it's essential to grasp the fundamental principles behind load cells. At their core, load cells utilize the concept of strain to measure force. When an external force is applied, the load cell's body deforms slightly, and this deformation is measured using strain gauges.
1. Sensing element (usually metal)
2. Strain gauges
3. Wheatstone bridge circuit
4. Signal amplification system
5. Housing or enclosure
Designing an effective load cell requires careful consideration of various factors:
Determine the maximum force your load cell needs to measure. This will influence the choice of materials and overall design.
Consider the level of accuracy required for your application. Higher precision often comes at a higher cost and may require more sophisticated components.
Account for temperature variations, humidity, and potential exposure to chemicals or harsh conditions that may affect the load cell's performance.

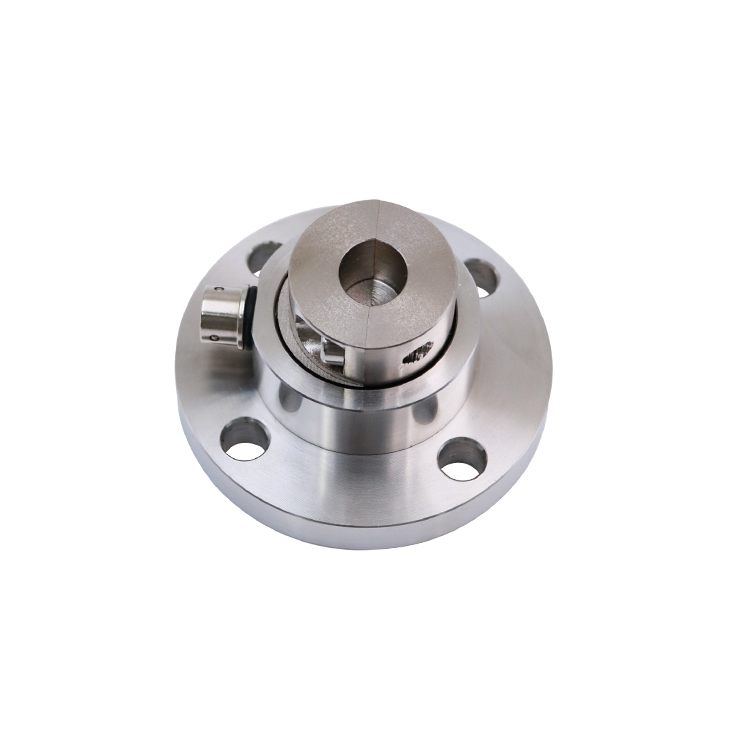

The physical dimensions of your load cell should be appropriate for its intended application. Common shapes include S-beam, canister, and button designs.
Now that we've covered the basics, let's dive into the process of constructing a load cell.
Select a suitable material for the load cell body. Common choices include:
- Aluminum: Lightweight and corrosion-resistant
- Steel: Durable and suitable for high-capacity applications
- Stainless steel: Ideal for harsh environments or food-grade applications

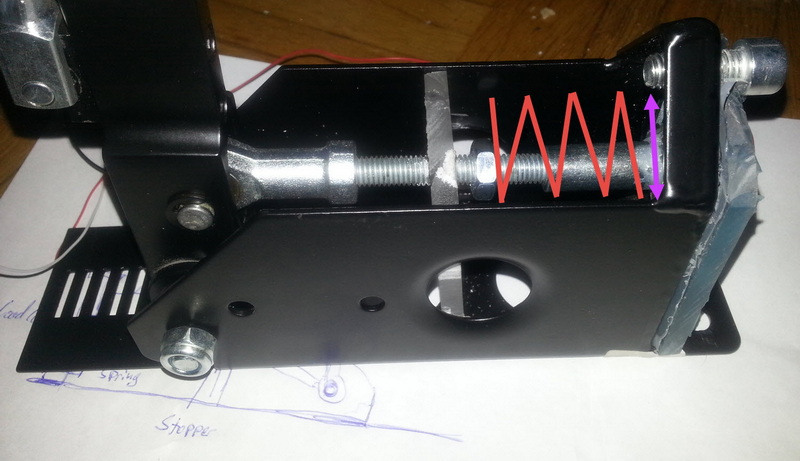

Create a design that allows for measurable deformation under load while maintaining structural integrity. Popular designs include:
- Bending beam

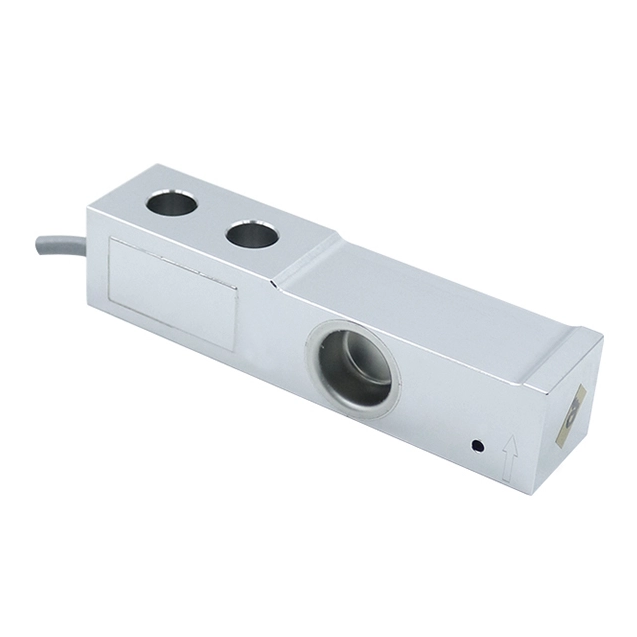

- Shear beam
- Compression column
- S-type
Use computer-aided design (CAD) software to model your load cell and simulate its performance under various loads.
Strain gauges are the heart of your load cell. They convert mechanical deformation into electrical resistance changes. Follow these steps for proper strain gauge application:
1. Clean and prepare the surface of your load cell body.
2. Apply a thin layer of adhesive to the designated areas.
3. Carefully place the strain gauges in the correct orientation.
4. Allow the adhesive to cure according to the manufacturer's instructions.
5. Solder lead wires to the strain gauge terminals.
Connect your strain gauges in a Wheatstone bridge circuit. This configuration allows for temperature compensation and increased sensitivity. The most common arrangements are:
- Quarter bridge: Uses one active strain gauge
- Half bridge: Uses two active strain gauges
- Full bridge: Uses four active strain gauges
The output signal from a Wheatstone bridge is typically very small, often in the millivolt range. To make this signal usable, you'll need to amplify it. Options include:
- Instrumentation amplifiers
- Operational amplifiers
- Specialized load cell amplifier modules
Choose an amplification method that provides the necessary gain while minimizing noise and drift.
Proper calibration is crucial for accurate measurements. Follow these steps:
1. Apply known weights to your load cell.
2. Record the output voltage for each weight.
3. Create a calibration curve by plotting weight vs. voltage.
4. Use this curve to convert future voltage readings into weight or force measurements.

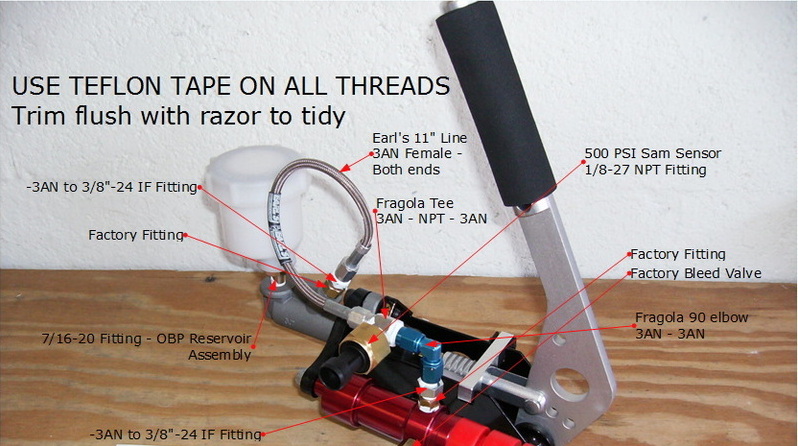

Now that you've constructed your load cell, you can incorporate it into a complete weight measurement system. Here's a basic setup:
1. Mount your load cell securely.
2. Connect the load cell to your amplification circuit.
3. Interface the amplified signal with a microcontroller (e.g., Arduino or Raspberry Pi).
4. Write code to convert the analog signal to a digital reading.
5. Display the results on an LCD screen or send them to a computer for logging.
As you become more proficient in load cell design and construction, consider exploring these advanced topics:
Temperature fluctuations can affect load cell accuracy. Implement temperature compensation techniques, such as:
- Using temperature-sensitive resistors in your bridge circuit
- Incorporating temperature sensors and software correction
Design load cells capable of measuring forces in multiple directions simultaneously. This is particularly useful in robotics and aerospace applications.
Integrate wireless communication modules (e.g., Bluetooth or Wi-Fi) to transmit load cell data without the need for physical connections.
Even well-designed load cells can encounter issues. Here are some common problems and solutions:
If your load cell output drifts over time, check for:
- Loose connections
- Temperature fluctuations
- Mechanical stress on the load cell body
Improve linearity by:
- Refining your calibration process
- Adjusting the load cell design to distribute stress more evenly
Reduce hysteresis by:
- Using higher quality materials
- Optimizing the load cell geometry
Minimize noise by:
- Using shielded cables
- Implementing proper grounding techniques
- Adding low-pass filters to your signal conditioning circuit
Regular maintenance, including recalibration and visual inspections, will help ensure the longevity and accuracy of your load cell.
Creating a load cell from scratch is a challenging but rewarding process that combines mechanical engineering, electrical design, and signal processing. By understanding the principles behind load cell operation and following the steps outlined in this guide, you can develop custom force measurement solutions for a wide range of applications.Remember that practice and experimentation are key to mastering load cell design. Don't be discouraged if your first attempts aren't perfect – each iteration will bring you closer to creating high-performance, reliable load cells.
A1: A strain gauge is a component used within a load cell. The strain gauge measures the deformation of the load cell body, while the load cell as a whole is the complete force measurement device, including the sensing element, strain gauges, and associated circuitry.
A2: Select a load cell with a capacity that exceeds your maximum expected load by 20-50%. This provides a safety margin and helps ensure accuracy across the entire measurement range.
A3: Yes, but you'll need to use a specially designed submersible load cell with appropriate sealing and waterproof materials. Standard load cells are not suitable for underwater use without proper modifications.
A4: Calibration frequency depends on usage and environmental factors. As a general rule, calibrate your load cell at least once a year or more frequently if you notice any drift in measurements or after subjecting the load cell to overloads.
A5: Compression load cells are designed to measure forces pushing inward on the cell, while tension load cells measure pulling forces. Some load cells can measure both compression and tension, known as universal or bidirectional load cells.
