Load cells are essential components in various applications, including weighing scales, industrial automation, and force measurement systems. A load cell amplifier is crucial for converting the small electrical signals generated by load cells into a more usable form. This article will guide you through the process of making a load cell amplifier, covering the necessary components, circuit design, and practical implementation.
Before diving into the construction of a load cell amplifier, it's important to understand what a load cell is and how it works. A load cell is a transducer that converts force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation caused by applied weight.
1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, causing a change in resistance in the strain gauges attached to it.
2. Hydraulic Load Cells: These use fluid pressure to measure weight. They are less common but are used in specific applications where high capacity is required.
3. Pneumatic Load Cells: Similar to hydraulic load cells, but they use air pressure. They are often used in applications requiring high accuracy.
When a load is applied to a load cell, the internal structure deforms slightly. This deformation changes the resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the applied load, allowing for accurate weight measurement.
To build a load cell amplifier, you will need the following components:
1. Load Cell: Choose a load cell that suits your application. Common capacities range from a few grams to several tons.

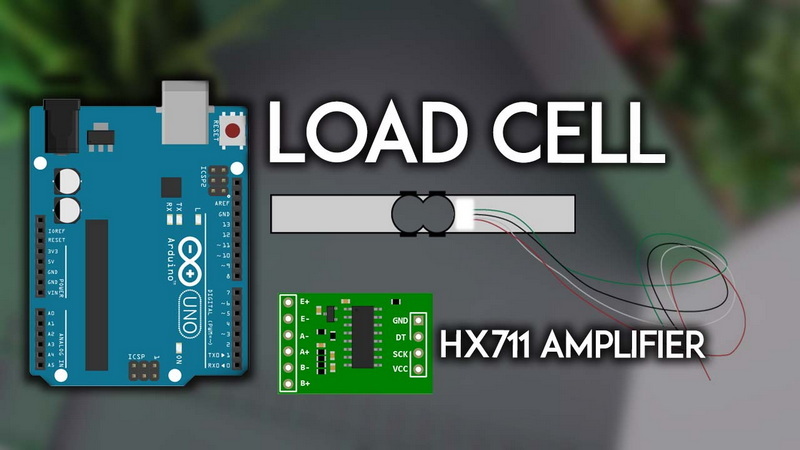

2. Amplifier IC: The HX711 is a popular choice for load cell applications. It is a precision 24-bit analog-to-digital converter (ADC) designed specifically for weigh scales.
3. Microcontroller: An Arduino or Raspberry Pi can be used to read the output from the amplifier and process the data.
4. Power Supply: Ensure you have a suitable power supply for your components, typically 5V for the HX711.
5. Resistors and Capacitors: These may be needed for filtering and stabilizing the circuit.
6. Breadboard and Jumper Wires: For prototyping your circuit.

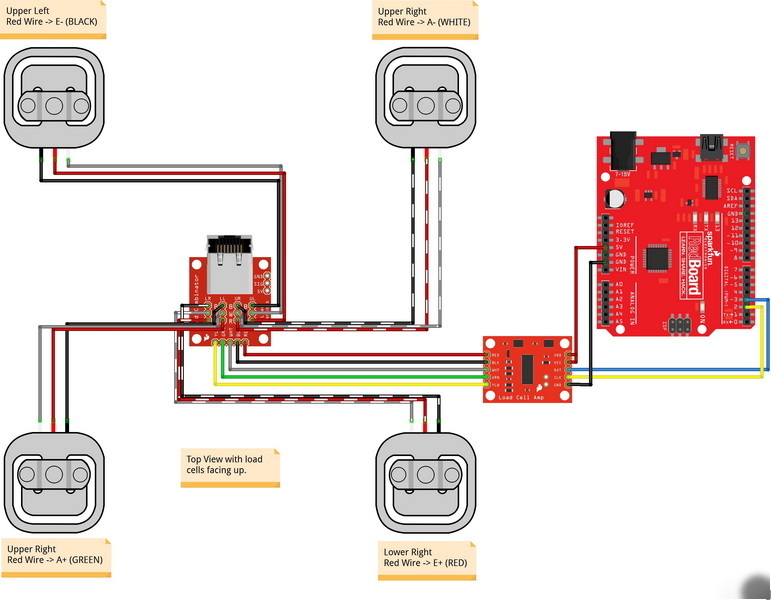

The basic circuit for a load cell amplifier using the HX711 involves connecting the load cell to the HX711 and then connecting the HX711 to a microcontroller. Below is a simple schematic of how to connect these components:
1. Connect the Load Cell: The load cell typically has four wires: red (excitation+), black (excitation-), white (signal+), and green (signal-). Connect these to the HX711 according to the datasheet.
2. Connect the HX711 to the Microcontroller: The HX711 has two data pins (DT and SCK) that need to be connected to the microcontroller.
3. Power the Circuit: Connect the VCC and GND pins of the HX711 to your power supply.
1. Mount the Load Cell: Secure the load cell to a stable surface. Ensure it is properly aligned to avoid measurement errors.
2. Connect the Load Cell Wires: Use the color coding mentioned earlier to connect the load cell to the HX711.
1. Connect the HX711 to the Load Cell: Follow the schematic to connect the load cell to the HX711.
2. Connect the HX711 to the Microcontroller: Use jumper wires to connect the DT and SCK pins of the HX711 to the digital pins on your microcontroller.
3. Power the HX711: Connect the VCC and GND pins to your power supply.
3. Upload the Code: Upload the code to your microcontroller.
1. Calibrate the Load Cell: Place known weights on the load cell and adjust the calibration factor in your code until the readings match the known weights.
2. Test the Setup: After calibration, test the setup with various weights to ensure accuracy.
1. No Output: Check all connections and ensure the load cell is properly mounted.
2. Inconsistent Readings: Ensure the load cell is stable and not subjected to vibrations. Recalibrate if necessary.
3. Overloading: Ensure that the load applied does not exceed the load cell's capacity.
Load cell amplifiers are used in various applications, including:
1. Weighing Scales: Used in commercial and industrial scales for accurate weight measurement.
2. Force Measurement: Used in testing machines to measure force applied to materials.
3. Industrial Automation: Used in conveyor systems to monitor weight and ensure proper load distribution.
4. Medical Devices: Used in medical scales and devices to monitor patient weight.
5. Robotics: Load cells can be integrated into robotic systems to provide feedback on weight and force, enhancing control and precision.
6. Agricultural Applications: Used in smart farming technologies to monitor the weight of produce and optimize harvesting processes.

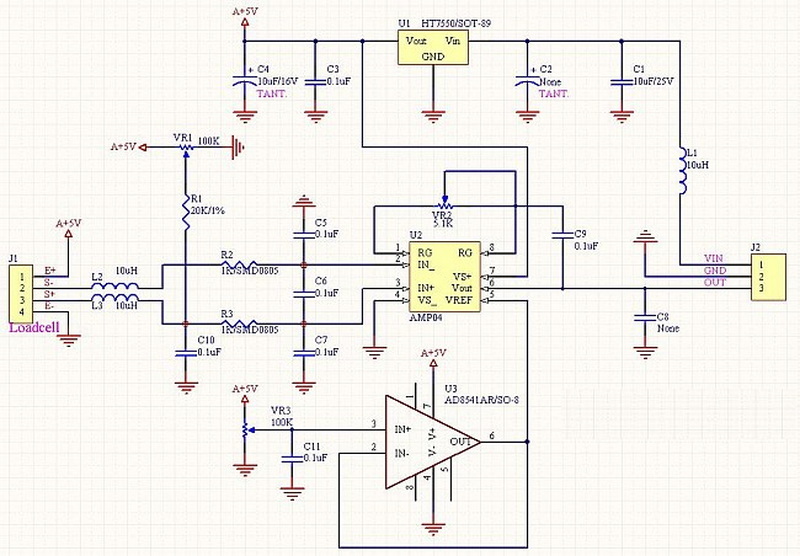

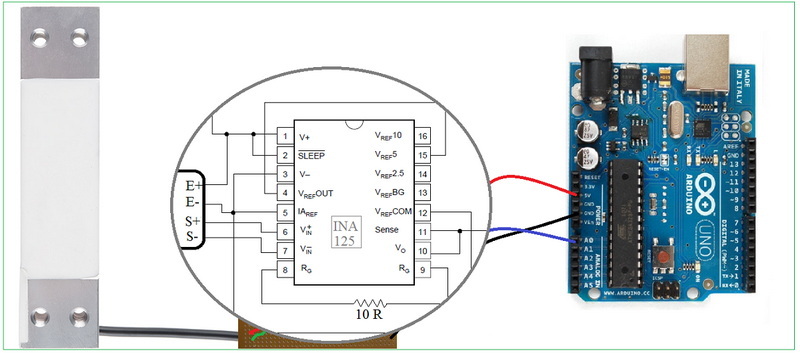

Signal conditioning is an essential step in processing the output from load cells. The small signals generated by load cells often require amplification and filtering to remove noise. This can be achieved using operational amplifiers (op-amps) to create a more robust signal before it is sent to the ADC.
Implementing digital filtering techniques in your microcontroller code can help improve the accuracy of your readings. Techniques such as moving average filters can smooth out fluctuations in the data, providing a more stable output.
For applications where wired connections are impractical, consider using wireless load cell systems. These systems typically use Bluetooth or Wi-Fi modules to transmit data to a remote display or logging system, allowing for greater flexibility in installation.
Integrating load cell amplifiers with Internet of Things (IoT) platforms can enhance their functionality. By connecting your load cell system to the internet, you can monitor weight data remotely, set alerts for specific weight thresholds, and analyze data trends over time.
Building a load cell amplifier is a rewarding project that can enhance your understanding of electronics and measurement systems. By following the steps outlined in this article, you can create a functional load cell amplifier that can be used in various applications. With proper calibration and setup, you can achieve accurate and reliable weight measurements.
A load cell amplifier is used to amplify the small electrical signals generated by load cells, making them suitable for processing and measurement. It converts these signals into a more usable form for microcontrollers or other devices.
When choosing a load cell, consider factors such as the maximum load capacity, accuracy, size, and environmental conditions. Ensure that the load cell can handle the expected weight range and is suitable for the application environment.
Yes, most load cell amplifiers, like the HX711, are compatible with popular microcontrollers such as Arduino and Raspberry Pi. Ensure that the amplifier's output is compatible with the input specifications of your microcontroller.
To calibrate a load cell, place known weights on it and adjust the calibration factor in your code until the readings match the known weights. It may require several iterations to achieve accurate results.
Load cell amplifiers are commonly used in weighing scales, force measurement systems, industrial automation, medical devices, and robotics. They are essential in any application requiring accurate weight or force measurement.
