A load cell is a crucial component in various applications, including weighing scales, industrial automation, and force measurement systems. It converts mechanical force into an electrical signal, allowing for precise measurements. In this article, we will explore the process of making a load cell, the materials required, and the principles behind its operation. We will also include images and videos to illustrate the steps involved.
Before diving into the construction of a load cell, it is essential to understand its basic components and how it works. A load cell typically consists of a metal body, strain gauges, and a signal conditioning circuit. The metal body deforms under load, and the strain gauges measure this deformation, converting it into an electrical signal.
There are several types of load cells, including:
1. Strain Gauge Load Cells: The most common type, using strain gauges to measure deformation.

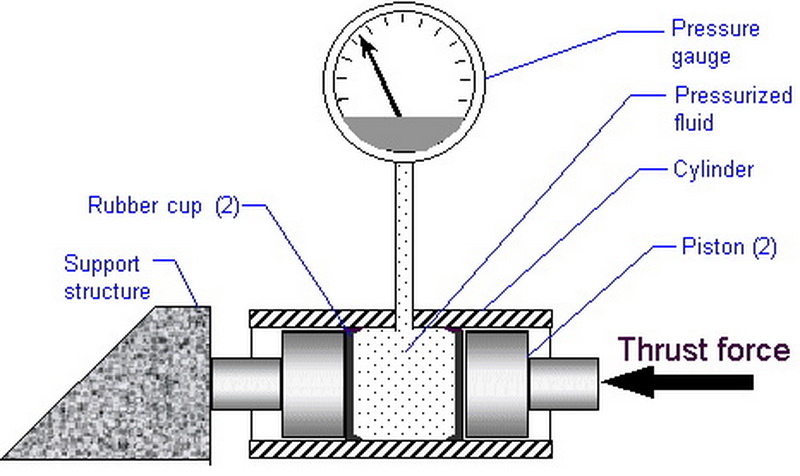

2. Hydraulic Load Cells: Utilize hydraulic fluid to measure force.
3. Pneumatic Load Cells: Use air pressure to measure weight.
4. Capacitive Load Cells: Measure changes in capacitance due to deformation.
For this article, we will focus on building a strain gauge load cell, as it is the most widely used and easiest to construct.
To make a load cell, you will need the following materials:
- Metal Block: Aluminum or steel is preferred for its strength and durability.
- Strain Gauges: These are available in various configurations; choose ones suitable for your application.
- Adhesive: A strong epoxy or cyanoacrylate glue to attach the strain gauges to the metal block.
- Wires: For connecting the strain gauges to the signal conditioning circuit.
- Signal Conditioning Circuit: This can be a simple amplifier circuit or a dedicated load cell amplifier like the HX711.
- Power Supply: A stable power source for the circuit.
- Multimeter: For testing and calibration.

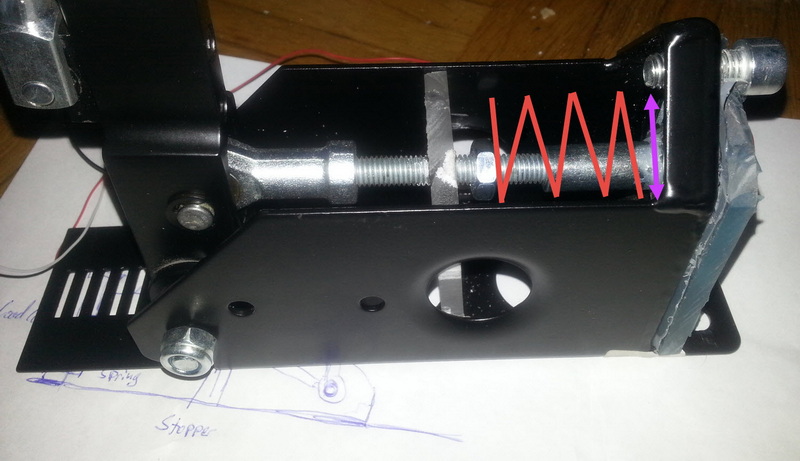

Start by selecting a metal block that will serve as the base for your load cell. The size and shape will depend on your specific application. For most applications, a rectangular block measuring about 5 cm x 10 cm x 2 cm is sufficient.
1. Cut the Metal Block: If necessary, use a saw to cut the metal block to the desired dimensions.
2. Smooth the Edges: Use a file or sandpaper to smooth any rough edges to ensure a clean surface for the strain gauges.
The next step is to attach the strain gauges to the metal block. This is a critical step, as the accuracy of the load cell depends on the proper placement of the strain gauges.
1. Clean the Surface: Use isopropyl alcohol to clean the area where the strain gauges will be attached. This ensures a strong bond.
2. Position the Strain Gauges: Depending on your design, you may need to place multiple strain gauges. A common configuration is to use four gauges in a Wheatstone bridge arrangement.
3. Apply Adhesive: Carefully apply a thin layer of adhesive to the back of each strain gauge and press it onto the metal block. Ensure there are no air bubbles trapped underneath.
4. Allow to Cure: Let the adhesive cure according to the manufacturer's instructions.
Once the strain gauges are securely attached, the next step is to wire them to the signal conditioning circuit.
1. Identify the Wires: Each strain gauge will have two wires. Identify the positive and negative leads for each gauge.
2. Connect the Wires: Use solder to connect the wires from the strain gauges to the input terminals of the signal conditioning circuit. If using a Wheatstone bridge, follow the appropriate wiring diagram.
3. Insulate Connections: Use heat shrink tubing or electrical tape to insulate the connections and prevent short circuits.
The signal conditioning circuit amplifies the small electrical signals generated by the strain gauges, making them easier to read.
1. Choose an Amplifier: The HX711 is a popular choice for load cell applications due to its ease of use and built-in analog-to-digital conversion.
2. Connect the Circuit: Follow the manufacturer's instructions to connect the load cell to the HX711. Typically, you will connect the output from the strain gauges to the input of the HX711.
3. Power the Circuit: Connect the circuit to a stable power supply, ensuring the voltage matches the specifications of the HX711.
Calibration is essential to ensure that your load cell provides accurate measurements.
1. Prepare Weights: Gather a set of known weights for calibration. These can be standard weights or household items with known mass.
2. Record Readings: Place the weights on the load cell and record the output from the signal conditioning circuit.
3. Create a Calibration Curve: Plot the known weights against the output readings to create a calibration curve. This will help you convert future readings into accurate weight measurements.
After calibration, it's time to test your load cell to ensure it functions correctly.
1. Apply Known Weights: Start with small weights and gradually increase the load.
2. Monitor Output: Observe the output from the signal conditioning circuit. It should correspond closely to the known weights.
3. Adjust Calibration: If the readings are not accurate, revisit the calibration process and make necessary adjustments.
Load cells have a wide range of applications across various industries:
- Weighing Scales: Used in commercial and industrial scales for accurate weight measurement.
- Force Measurement: Employed in testing machines to measure tensile and compressive forces.
- Automated Systems: Integrated into robotic systems for precise load monitoring.
- Medical Devices: Used in hospital equipment for patient monitoring and medication dispensing.
- Aerospace Testing: Load cells are used in aerospace applications to measure forces during testing of components and systems.
Load cells offer several advantages that make them ideal for various applications:
1. High Accuracy: Load cells can provide precise measurements, making them suitable for applications where accuracy is critical.
2. Durability: Made from robust materials, load cells can withstand harsh environments and heavy loads.
3. Versatility: They can be used in a wide range of applications, from industrial scales to medical devices.
4. Ease of Integration: Load cells can be easily integrated into existing systems, allowing for seamless upgrades to measurement capabilities.
While load cells are highly effective, there are challenges in their design and implementation:
1. Temperature Sensitivity: Load cells can be affected by temperature changes, which may lead to measurement errors. Proper thermal compensation techniques must be employed.
2. Mechanical Stress: Overloading a load cell can cause permanent damage. It is essential to select a load cell with an appropriate capacity for the intended application.
3. Calibration Complexity: Accurate calibration is crucial for reliable measurements, and it can be a complex process requiring careful attention to detail.
Building a load cell is a rewarding project that combines principles of mechanics and electronics. By following the steps outlined in this article, you can create a functional load cell suitable for various applications. Remember to pay close attention to the calibration process, as it is crucial for ensuring accurate measurements. With the right materials and careful construction, you can successfully make a load cell that meets your needs.
A load cell is a transducer that converts mechanical force into an electrical signal. It is commonly used in weighing scales and force measurement applications.
A strain gauge load cell works by measuring the deformation of a metal body under load. Strain gauges attached to the metal body change their resistance when stretched or compressed, and this change is converted into an electrical signal.
To build a load cell, you will need a metal block, strain gauges, adhesive, wires, a signal conditioning circuit, a power supply, and a multimeter.
To calibrate a load cell, you need to apply known weights, record the output from the signal conditioning circuit, and create a calibration curve to correlate the weights with the output readings.
Load cells are used in various applications, including weighing scales, force measurement systems, automated systems, medical devices, and aerospace testing.
