Load cells are essential components in various applications, including weighing scales, industrial automation, and force measurement systems. They convert mechanical force into an electrical signal, which can be measured and analyzed. Understanding how to measure the voltage output of a load cell is crucial for ensuring accurate readings and proper functioning of the system. In this article, we will explore the process of measuring load cell voltage, the equipment needed, and best practices to follow.
A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied to the load cell, it deforms slightly, causing a change in resistance in the strain gauges. This change in resistance is converted into a voltage signal, which can be measured.
1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are commonly used in applications like weighing scales and material testing.
2. Tension Load Cells: These load cells measure the force applied in a tensile manner. They are often used in applications such as hanging scales and crane scales.

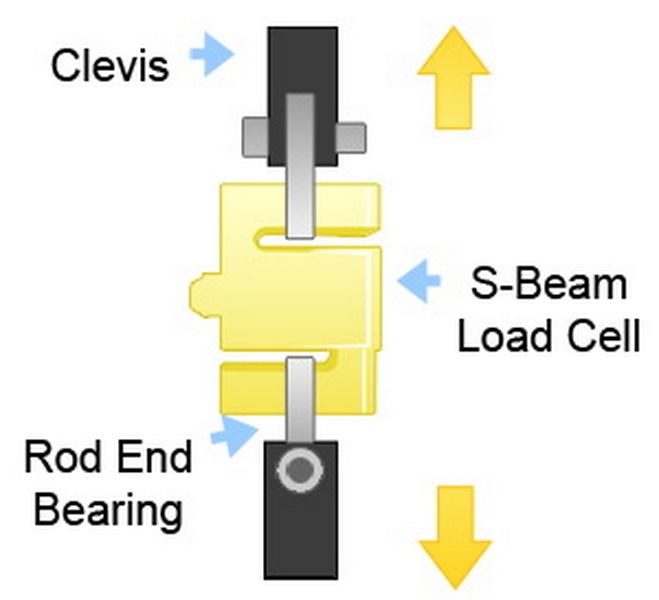

3. S-Type Load Cells: These load cells can measure both tension and compression forces. They are versatile and widely used in various applications.
4. Shear Beam Load Cells: These load cells are designed to measure shear forces and are commonly used in platform scales.
5. Bending Beam Load Cells: These load cells measure bending forces and are often used in applications where space is limited.
To measure the voltage output of a load cell, you will need the following equipment:
- Load Cell: The load cell you wish to measure.
- Power Supply: A stable power supply to provide the excitation voltage to the load cell.
- Multimeter: A digital multimeter to measure the output voltage from the load cell.
- Wiring: Appropriate wiring to connect the load cell to the power supply and multimeter.
- Weights: Known weights to apply to the load cell for testing.

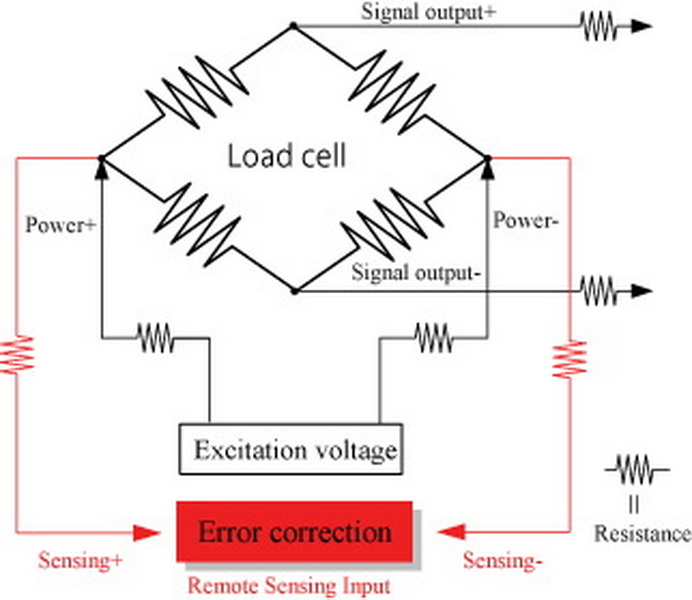

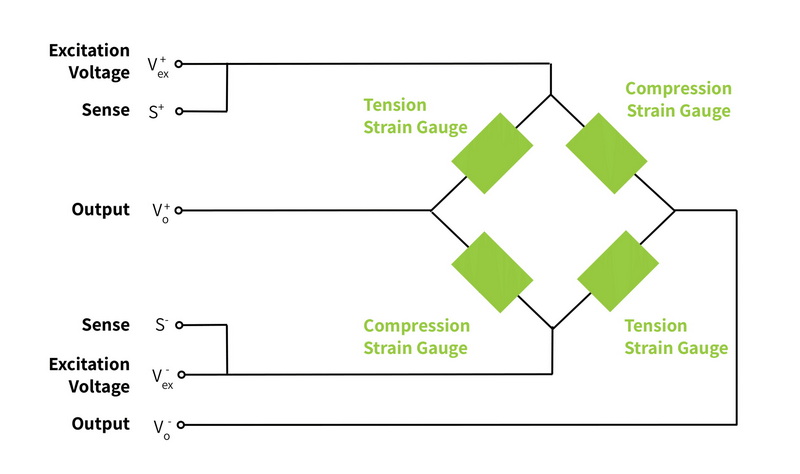

Before you begin, it is essential to understand the wiring configuration of your load cell. Most load cells have four wires: two for excitation voltage (often labeled as +V and -V) and two for the output signal (often labeled as +S and -S). Refer to the load cell's datasheet for specific wiring instructions.
1. Connect the Power Supply: Connect the excitation wires of the load cell to the power supply. Ensure that the power supply voltage matches the specifications of the load cell (commonly 5V or 10V).
2. Connect the Multimeter: Connect the multimeter probes to the output wires of the load cell. The positive probe should be connected to the +S wire, and the negative probe should be connected to the -S wire.
To measure the output voltage accurately, apply a known weight to the load cell. This weight should be within the load cell's rated capacity. For example, if you are using a 100 kg load cell, you might apply a 10 kg weight.

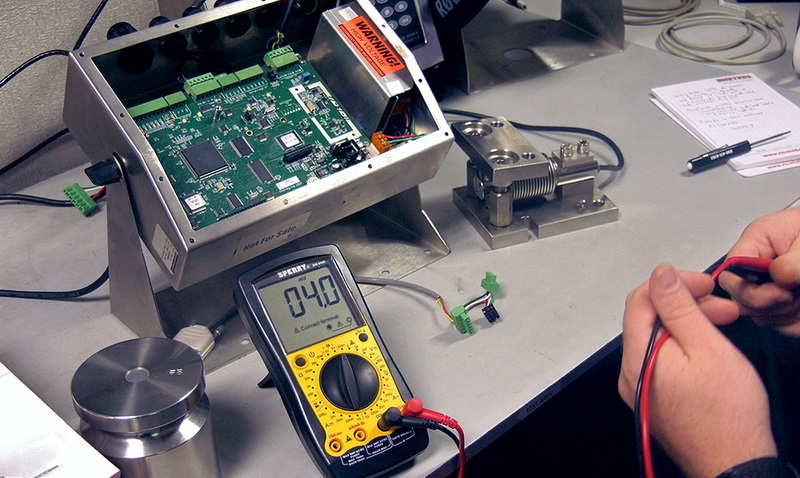

With the load cell powered and the known weight applied, observe the reading on the multimeter. The voltage output will vary depending on the weight applied. Record this voltage reading.
To ensure accuracy, repeat the measurement process with different known weights. This will help you establish a relationship between the applied weight and the output voltage.
The output voltage of a load cell is typically very small, often in the millivolt range. For example, a load cell may produce 1 mV of output voltage for every 1 kg of weight applied. This means that for a 10 kg weight, the output voltage would be approximately 10 mV.
Calibration is essential to ensure that the load cell provides accurate readings. Calibration involves comparing the output voltage of the load cell with known weights and adjusting the system accordingly. This process may require specialized equipment and should be performed regularly to maintain accuracy.
Several factors can affect the output voltage of a load cell, including:
- Temperature: Load cells can be sensitive to temperature changes, which can affect their accuracy. It is essential to operate load cells within their specified temperature range.
- Mechanical Stress: Overloading a load cell can cause permanent damage and affect its output. Always ensure that the load applied does not exceed the load cell's rated capacity.
- Electrical Noise: Electrical interference from nearby equipment can affect the output signal. Proper shielding and grounding can help minimize this issue.
1. Use a Stable Power Supply: Ensure that the power supply provides a stable voltage to avoid fluctuations in the output signal.
2. Minimize Electrical Noise: Keep the wiring as short as possible and away from sources of electrical noise, such as motors or transformers.
3. Perform Regular Calibration: Regularly calibrate the load cell to ensure accurate measurements.
4. Use Proper Weights: Always use calibrated weights for testing to ensure accuracy.
5. Document Measurements: Keep a record of all measurements and calibrations for future reference.
If you encounter issues while measuring load cell voltage, consider the following troubleshooting tips:
- No Output Voltage: Check the wiring connections and ensure that the power supply is functioning correctly.
- Inconsistent Readings: Ensure that the load cell is properly calibrated and that the weights used are accurate.
- Electrical Noise: If you notice fluctuations in the readings, try to minimize electrical noise by adjusting the wiring or relocating the setup.
Load cells are used in a wide range of applications across various industries. Some common applications include:
- Weighing Scales: Load cells are the primary component in electronic weighing scales, providing accurate weight measurements.
- Industrial Automation: Load cells are used in automated systems to monitor and control processes, such as filling containers with precise amounts of material.
- Material Testing: Load cells are employed in laboratories to test the strength and durability of materials by measuring the force applied during testing.
- Medical Equipment: Load cells are used in medical devices, such as patient lifts and scales, to ensure accurate weight measurements for patient care.
- Aerospace and Automotive Testing: Load cells are utilized in testing the structural integrity of components in aerospace and automotive applications.
Measuring the voltage output of a load cell is a straightforward process that requires careful attention to detail. By following the steps outlined in this article, you can ensure accurate measurements and maintain the proper functioning of your load cell system. Regular calibration and adherence to best practices will help you achieve reliable results in your applications.
The typical output voltage of a load cell is in the millivolt range, often around 1 mV per kg of weight applied. This can vary based on the load cell's specifications.
It is recommended to calibrate your load cell at least once a year or whenever you notice discrepancies in measurements. Regular calibration ensures accuracy and reliability.
Yes, but you must ensure that the load cell is rated for outdoor use and protected from environmental factors such as moisture, dust, and extreme temperatures.
Check the wiring connections, ensure that the load cell is properly calibrated, and minimize electrical noise in the environment. If issues persist, consider consulting the manufacturer.
Consider factors such as the maximum load capacity, type of load (tension or compression), environmental conditions, and required accuracy when selecting a load cell for your application.
