Load cells are crucial components in various industries, serving as the backbone of weight and force measurement systems. These precision instruments convert mechanical force into electrical signals, enabling accurate measurements in applications ranging from industrial scales to aerospace testing. Understanding how to measure a load cell properly is essential for ensuring the reliability and accuracy of your measurement systems.
Before delving into measurement techniques, it's important to familiarize yourself with the various types of load cells available. Each type is designed for specific applications and measurement ranges.
1. Strain Gauge Load Cells: The most common type, using strain gauges to measure deformation under applied force.
2. Hydraulic Load Cells: Utilize fluid pressure to measure force, ideal for harsh environments.
3. Pneumatic Load Cells: Use air pressure for force measurement, suitable for clean room applications.
4. Capacitive Load Cells: Measure force through changes in electrical capacitance.
5. Piezoelectric Load Cells: Generate electrical charge proportional to applied force, excellent for dynamic measurements.
Each type of load cell has its strengths and limitations. For instance, strain gauge load cells are versatile and cost-effective, making them popular in various industries. Hydraulic load cells, on the other hand, excel in rugged environments where electronic components might fail.

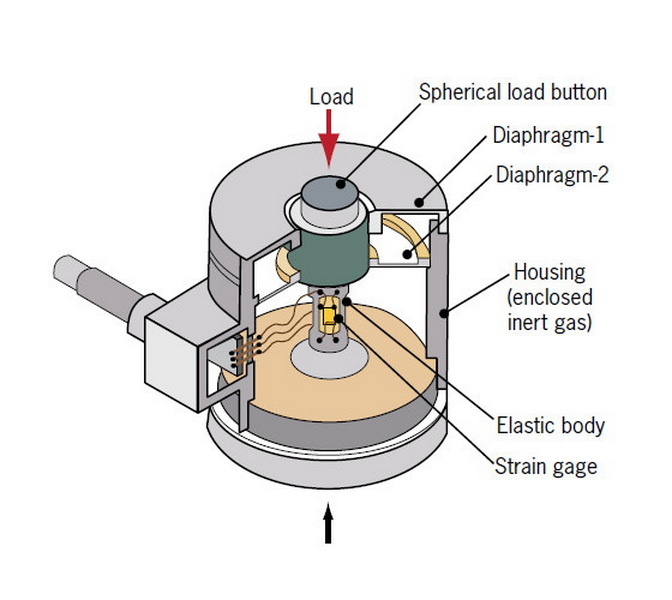

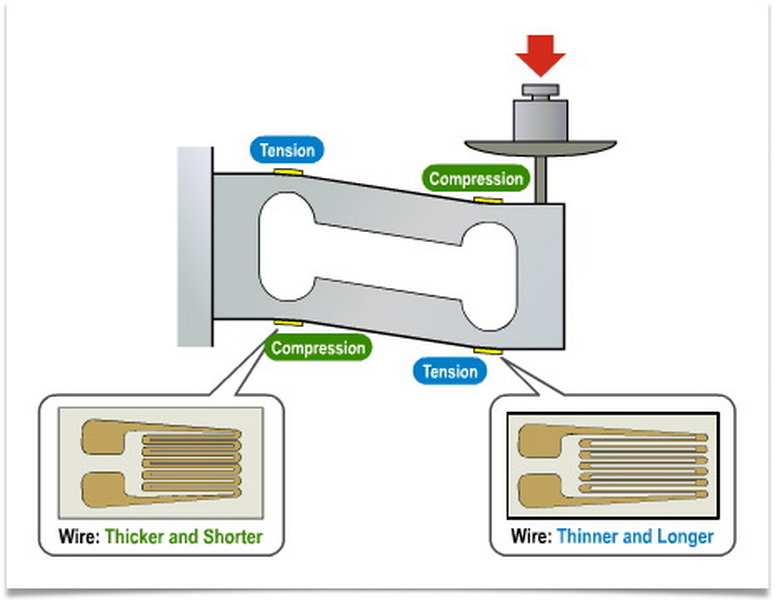

At the heart of load cell technology lies the principle of converting mechanical force into electrical signals. For strain gauge load cells, which are the most widely used, this process involves the following steps:
1. Force Application: When a force is applied to the load cell, it causes a slight deformation in the cell's structure.
2. Strain Gauge Deformation: This deformation is transferred to the strain gauges bonded to the load cell.
3. Resistance Change: As the strain gauges deform, their electrical resistance changes proportionally to the applied force.
4. Signal Generation: The change in resistance is converted into a measurable electrical signal, typically in millivolts (mV).
5. Signal Amplification: The small electrical signal is then amplified and processed for measurement or display.
Understanding these principles is crucial for accurate load cell measurements and troubleshooting potential issues.
Calibration is a critical process in ensuring the accuracy and reliability of load cell measurements. Proper calibration techniques help maintain measurement integrity and comply with industry standards.
The calibration process typically involves the following steps:
1. Zero Calibration: Adjust the load cell output to zero when no force is applied.
2. Span Calibration: Apply a known weight, usually close to the load cell's full capacity, and adjust the output accordingly.
3. Linearity Check: Test the load cell at multiple points across its range to ensure a linear response.
4. Hysteresis Testing: Check for differences in output between loading and unloading cycles.
5. Repeatability Testing: Perform multiple measurements at the same load to verify consistency.
It's recommended to calibrate load cells annually or more frequently in demanding applications. Always document the calibration process, including date, method, and technician information, for quality assurance and traceability.
Accurately measuring load cell output signals is crucial for precise force and weight measurements. Load cells typically produce millivolt-level signals that require proper handling and interpretation.To measure load cell output:
1. Connect a high-precision multimeter or data acquisition system to the load cell's signal wires.
2. Set the measuring device to read millivolts (mV) or the appropriate scale for your load cell's output.
3. Apply a known force or weight to the load cell.
4. Record the output signal and compare it to the expected value based on the load cell's specifications.
Remember that environmental factors such as temperature and humidity can affect load cell output. Always consider these variables when interpreting measurements.
Load cells find applications across a wide range of industries, each with unique requirements and challenges:
1. Manufacturing: Quality control, material testing, and process automation.
2. Transportation: Vehicle weighing, cargo load monitoring, and aircraft weight and balance systems.
3. Agriculture: Grain storage management, livestock weighing, and yield monitoring.
4. Healthcare: Patient weighing, pharmaceutical production, and medical research.
5. Aerospace: Structural testing, thrust measurement, and payload monitoring.
6. Construction: Crane load monitoring, structural health monitoring, and material testing.
Each application may require specific load cell types and measurement techniques. For example, dynamic force measurements in aerospace testing might utilize piezoelectric load cells, while static weighing in agriculture often relies on strain gauge technology.
Achieving and maintaining high measurement accuracy is paramount in load cell applications. Several factors contribute to accuracy:
1. Proper Installation: Ensure the load cell is mounted correctly and aligned with the force direction.
2. Environmental Control: Minimize temperature fluctuations and vibrations that can affect measurements.
3. Regular Calibration: Maintain a consistent calibration schedule to account for drift over time.
4. Signal Conditioning: Use appropriate amplifiers and filters to process the load cell output signal.
5. Data Acquisition: Employ high-resolution analog-to-digital converters for precise measurements.
6. Load Application: Apply forces consistently and within the load cell's specified range.
By addressing these factors, you can significantly improve the accuracy and reliability of your load cell measurements.
Even with proper care and maintenance, load cells can experience issues that affect their performance. Here are some common problems and troubleshooting steps:
1. Zero Drift: If the load cell doesn't return to zero after unloading, check for debris, recalibrate, or inspect for damage.
2. Nonlinearity: Perform a linearity check and recalibrate if necessary. Severe nonlinearity may indicate overloading damage.
3. Erratic Readings: Check electrical connections, shield wiring from electromagnetic interference, and inspect for moisture ingress.
4. Reduced Sensitivity: Verify excitation voltage, check for mechanical damage, and recalibrate the load cell.
5. Overload Protection: Ensure that stop mechanisms are in place to prevent accidental overloading.
When troubleshooting, always start with the simplest possible cause and work systematically through potential issues.
As technology advances, new techniques emerge to enhance load cell measurements:
1. Digital Load Cells: Incorporate built-in analog-to-digital converters for improved signal integrity.
2. Wireless Load Cells: Eliminate cable-related issues and simplify installations in challenging environments.
3. Temperature Compensation: Use integrated temperature sensors to correct for thermal effects on measurements.
4. Multi-Axis Load Cells: Measure forces and moments in multiple directions simultaneously.
5. Smart Diagnostics: Implement self-monitoring features to detect and report potential issues proactively.
These advanced techniques can significantly improve measurement accuracy, reliability, and ease of use in complex applications.
Mastering load cell measurement is a combination of understanding the underlying principles, selecting the right equipment, and implementing proper techniques. By following the guidelines outlined in this article, you can ensure accurate and reliable force measurements across a wide range of applications.
Remember that regular calibration, proper maintenance, and attention to environmental factors are key to achieving optimal performance from your load cell systems.
Answer: The frequency of load cell calibration depends on various factors, including usage intensity, environmental conditions, and industry regulations. As a general rule, annual calibration is recommended for most applications. However, in critical measurement scenarios or harsh environments, more frequent calibrations (e.g., quarterly or monthly) may be necessary. Always consult your industry standards and the load cell manufacturer's recommendations for specific guidance.
Answer: A strain gauge is a sensing element that changes its electrical resistance when subjected to mechanical strain. A load cell, on the other hand, is a complete force measurement device that typically incorporates one or more strain gauges. The load cell includes the structural element that deforms under load, the strain gauges to measure this deformation, and often additional components like temperature compensation circuits and signal conditioning electronics. In essence, the strain gauge is a component of the load cell, which is the complete measurement instrument.
Answer: Selecting the appropriate capacity for your load cell involves several considerations:
1. Maximum expected load: Choose a load cell with a capacity that exceeds your maximum expected load by 20-50% to avoid overloading.
2. Safety factor: Consider any potential dynamic loads or impact forces that might occur.
3. Resolution requirements: Higher capacity load cells generally have lower resolution, so balance this with your accuracy needs.
4. Application specifics: Consider factors like vibration, temperature variations, and load distribution.
5. Future needs: If possible, allow for potential increases in measurement range.
It's often better to choose a slightly higher capacity to ensure safety and longevity, but avoid drastically oversizing as it can reduce measurement accuracy for smaller loads.
Answer: Zero drift in load cells refers to a change in the output signal when no load is applied. Several factors can cause zero drift:
1. Temperature changes: Thermal expansion or contraction of the load cell material.
2. Creep: Gradual deformation of the load cell over time under constant load.
3. Moisture or contamination: Affecting the electrical properties of the strain gauges or circuitry.
4. Mechanical hysteresis: Residual strain in the load cell after load removal.
5. Electrical issues: Such as degradation of connections or components.
To correct zero drift:
1. Perform regular zero calibrations as part of your maintenance routine.
2. Implement temperature compensation techniques.
3. Ensure proper environmental protection for the load cell.
4. Use high-quality load cells with low creep characteristics.
5. Allow sufficient warm-up time for the measurement system before use.
6. If persistent, consult with the manufacturer or a calibration specialist.
Answer: Yes, many load cells can measure both tension and compression forces, but not all are designed for this dual-mode operation. Here are key points to consider:
1. S-type load cells: Commonly used for both tension and compression measurements.
2. Button or pancake load cells: Typically designed for compression only.
3. Beam load cells: Can often measure both, but may have different capacities for each mode.
4. Calibration: Dual-mode load cells usually require separate calibration for tension and compression.
5. Mounting: Proper installation is crucial for accurate bidirectional measurements.
6. Specifications: Always check the load cell's datasheet to confirm its capabilities for tension and compression.
7. Application needs: Consider whether you truly need both modes or if a single-mode load cell would suffice.
When selecting a load cell for both tension and compression measurements, ensure it's specifically rated for such use and properly calibrated for your application.
