Load cells are essential components in various applications, including industrial weighing systems, force measurement, and material testing. Understanding how to measure the output voltage of a load cell is crucial for ensuring accurate readings and maintaining the integrity of the measurement system. This article will guide you through the process of measuring load cell output voltage, the principles behind it, and practical tips for effective measurement.

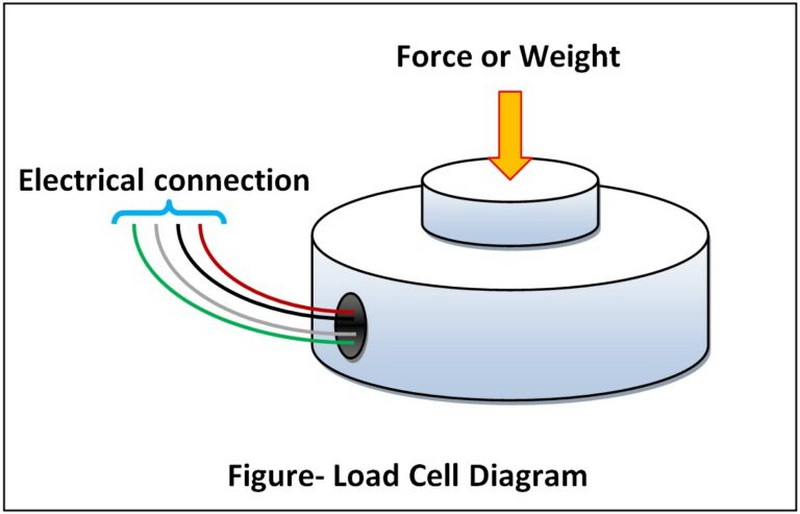

A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied to the load cell, it deforms slightly, causing a change in resistance in the strain gauges. This change in resistance is converted into a voltage signal, which can be measured and interpreted.

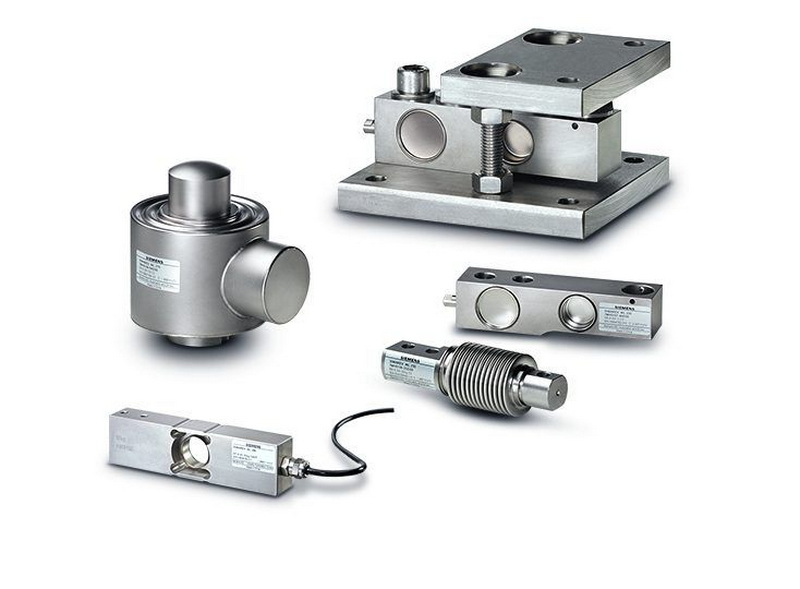

1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are often used in applications where the load is applied vertically.
2. Tension Load Cells: These load cells measure the force applied in a tensile manner. They are commonly used in applications such as hanging scales.
3. Bending Beam Load Cells: These load cells measure the bending of a beam under load. They are often used in platform scales.
4. S-Type Load Cells: These load cells can measure both tension and compression. They are versatile and widely used in various applications.
The output voltage of a load cell is typically in millivolts (mV) and is proportional to the load applied. The relationship between the load and output voltage is defined by the load cell's sensitivity, often expressed in mV/V. For example, a load cell with a sensitivity of 2 mV/V will output 2 mV for every volt of excitation voltage applied when a specific load is applied.
1. Excitation Voltage: The voltage supplied to the load cell affects the output voltage. A higher excitation voltage will result in a higher output voltage.
2. Load Cell Sensitivity: Different load cells have different sensitivities, which will affect the output voltage for a given load.
3. Temperature: Temperature changes can affect the resistance of the strain gauges, leading to variations in output voltage.
4. Calibration: Proper calibration of the load cell is essential for accurate measurements. Calibration ensures that the output voltage corresponds correctly to the applied load.
To measure the output voltage of a load cell, you will need the following equipment:
- Load Cell: The load cell you wish to measure.
- Power Supply: A stable power supply to provide excitation voltage to the load cell.
- Multimeter: A digital multimeter to measure the output voltage.
- Load Source: A known weight or force to apply to the load cell.
1. Setup the Load Cell: Connect the load cell to the power supply and ensure it is properly mounted. The load cell should be in a position where it can accurately measure the applied load.
2. Connect the Multimeter: Set up the multimeter to measure DC voltage. Connect the positive lead of the multimeter to the output terminal of the load cell and the negative lead to the ground.
3. Apply Excitation Voltage: Turn on the power supply and apply the excitation voltage to the load cell. Ensure that the voltage is within the specified range for the load cell.
4. Zero the Multimeter: Before applying any load, check the multimeter reading. It should be close to zero. If not, you may need to adjust the load cell or the multimeter.
5. Apply a Known Load: Gradually apply a known weight or force to the load cell. This could be done using calibrated weights or a force gauge.
6. Record the Output Voltage: As you apply the load, observe the multimeter reading. Record the output voltage corresponding to the applied load.
7. Repeat Measurements: For accuracy, repeat the measurement several times and calculate the average output voltage for each load.
8. Calculate Sensitivity: To determine the sensitivity of the load cell, divide the change in output voltage by the change in load. This will give you the mV/V value for the load cell.
- Use a Stable Power Supply: Fluctuations in the excitation voltage can lead to inaccurate readings. Ensure that the power supply is stable and within the specified range.
- Calibrate Regularly: Regular calibration of the load cell is essential for maintaining accuracy. Follow the manufacturer's guidelines for calibration procedures.
- Minimize Temperature Variations: Temperature changes can affect the output voltage. Conduct measurements in a controlled environment to minimize temperature fluctuations.
- Avoid Mechanical Interference: Ensure that the load cell is not subjected to any mechanical interference during measurements, as this can affect the readings.
1. Inconsistent Readings: If the output voltage is inconsistent, check the connections and ensure that the load cell is properly mounted. Also, verify that the power supply is stable.
2. Zero Drift: If the multimeter shows a significant reading when no load is applied, this may indicate zero drift. Re-calibrate the load cell to correct this issue.
3. Non-linear Output: If the output voltage does not change linearly with the applied load, the load cell may need calibration or replacement.
4. Temperature Effects: If you notice significant changes in output voltage with temperature variations, consider using a temperature compensation method or a load cell designed for temperature stability.
In many applications, the output signal from a load cell is too weak to be accurately measured directly. Signal conditioning is often necessary to amplify and filter the signal before it is sent to a data acquisition system or display. Signal conditioners can provide amplification, filtering, and linearization of the load cell output, ensuring that the readings are accurate and stable.
For more complex applications, integrating load cells with data acquisition systems can enhance measurement capabilities. These systems can log data over time, allowing for detailed analysis and monitoring of load cell performance. They can also provide real-time feedback and alerts if measurements exceed predefined thresholds.
Calibration is a critical aspect of load cell measurement. It involves comparing the output of the load cell against known weights to ensure accuracy. Calibration should be performed regularly, especially if the load cell is used in critical applications. The process typically involves:
1. Applying Known Weights: Use calibrated weights to apply known loads to the load cell.
2. Recording Output Voltages: Measure the output voltage for each known weight.
3. Creating a Calibration Curve: Plot the output voltage against the applied load to create a calibration curve. This curve can be used to convert output voltage readings into accurate load measurements.
4. Adjusting the System: If discrepancies are found, adjustments may be needed in the measurement system to ensure accuracy.
Load cells are used in a wide range of applications across various industries. Some common applications include:
1. Industrial Weighing: Load cells are widely used in scales for weighing products in manufacturing and shipping.
2. Material Testing: In laboratories, load cells are used to test the strength and durability of materials by measuring the force applied until failure.
3. Automotive Testing: Load cells are used in crash testing and other automotive applications to measure forces and loads.
4. Medical Devices: Load cells are used in medical scales and devices to ensure accurate weight measurements for patients.
5. Aerospace: In aerospace applications, load cells are used to measure forces during testing and to ensure the structural integrity of components.
Measuring the output voltage of a load cell is a fundamental skill for anyone working with weighing systems or force measurement applications. By understanding the principles behind load cells, the factors affecting output voltage, and the proper measurement techniques, you can ensure accurate and reliable measurements. Regular calibration and attention to environmental factors will further enhance the accuracy of your measurements.
In summary, the process involves setting up the load cell, applying a known load, and measuring the output voltage with a multimeter. By following the steps outlined in this article, you can effectively measure load cell output voltage and troubleshoot common issues that may arise.
The output voltage of load cells typically ranges from 0 to 20 mV, depending on the load applied and the excitation voltage. Most load cells are designed to operate within a specific range of excitation voltage, usually between 5V and 15V.
Load cells should be calibrated regularly, typically every six months to a year, or more frequently if they are used in critical applications. Calibration frequency may also depend on the environment and the amount of use.
Yes, temperature can significantly affect load cell measurements. Changes in temperature can alter the resistance of the strain gauges, leading to variations in output voltage. It is essential to conduct measurements in a controlled environment to minimize these effects.
If your load cell readings are inconsistent, check all connections and ensure that the load cell is properly mounted. Verify that the power supply is stable and that there are no mechanical interferences affecting the load cell.
To improve the accuracy of load cell measurements, use a stable power supply, calibrate the load cell regularly, minimize temperature variations, and avoid mechanical interference during measurements. Additionally, consider using signal conditioning equipment to enhance the output signal.
