Load cells are essential components in various applications, from industrial weighing systems to medical devices. They convert force or weight into an electrical signal, allowing for precise measurements. Understanding how to measure load using load cells and integrating them with printed circuit boards (PCBs) is crucial for engineers and technicians. This article will explore the principles of load measurement, the types of load cells, their applications, and how to effectively use them with PCBs.
A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change can be measured and converted into a load value.
1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, with strain gauges bonded to it. The deformation changes the resistance of the strain gauges, which can be measured.
2. Hydraulic Load Cells: These use hydraulic fluid to measure load. When a load is applied, the fluid pressure changes, which can be measured to determine the load.
3. Pneumatic Load Cells: Similar to hydraulic load cells, these use air pressure to measure load. They are often used in applications where electrical signals are not feasible.
4. Capacitive Load Cells: These measure changes in capacitance caused by the deformation of a dielectric material under load.
Load cells operate based on the principle of converting mechanical force into an electrical signal. The basic operation involves the following steps:
1. Application of Load: When a load is applied to the load cell, it causes deformation in the sensing element.
2. Strain Measurement: The deformation is measured by strain gauges attached to the load cell. The strain gauges change their resistance based on the amount of deformation.
3. Signal Conditioning: The small electrical signal generated by the strain gauges is often too weak to be used directly. Therefore, it is amplified and conditioned using signal conditioning circuits.
4. Analog to Digital Conversion: The conditioned signal is then converted into a digital format for processing by a microcontroller or computer.
5. Display and Interpretation: Finally, the digital signal can be displayed on a screen or used for further processing, such as data logging or control systems.
Choosing the appropriate load cell for your application is crucial. Consider the following factors:
- Load Capacity: Ensure the load cell can handle the maximum load you expect.
- Accuracy: Different load cells have varying levels of accuracy. Choose one that meets your precision requirements.
- Environmental Conditions: Consider factors like temperature, humidity, and exposure to chemicals when selecting a load cell.
Once you have selected the load cell, the next step is to set it up. This involves:
- Mounting: Securely mount the load cell to ensure it can accurately measure the load without any interference.

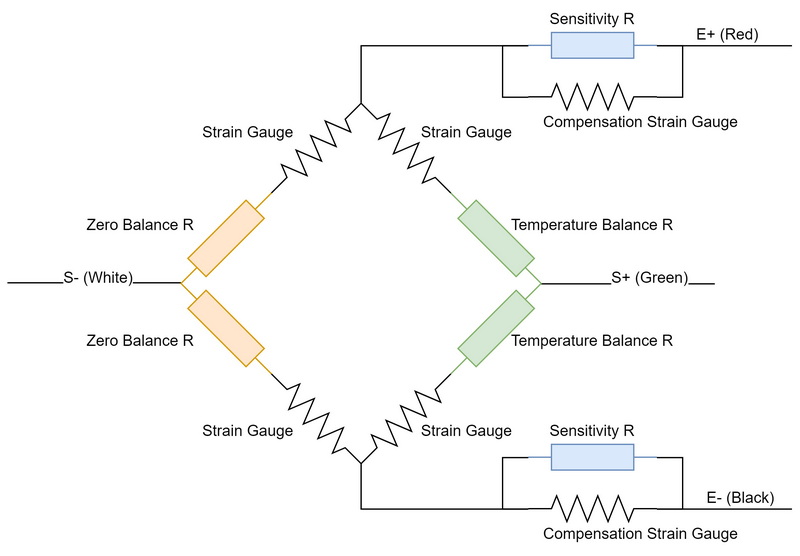

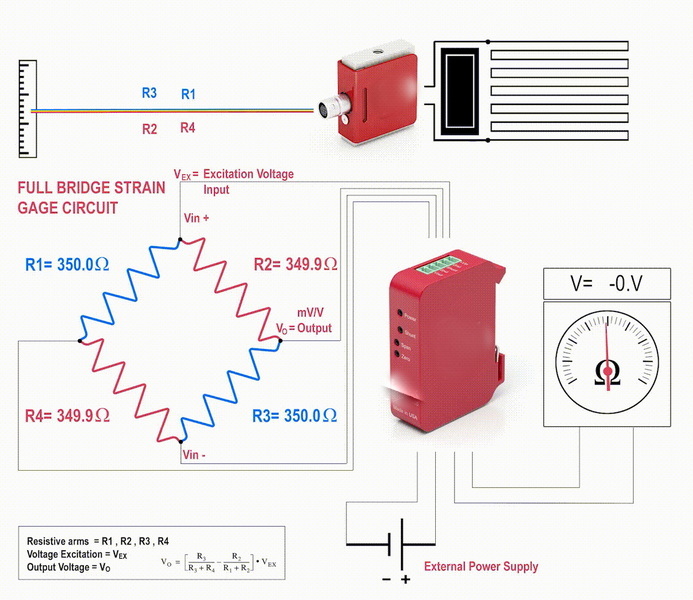

- Wiring: Connect the load cell to a signal conditioning circuit. This typically involves connecting the strain gauge wires to a Wheatstone bridge configuration.
The output from the load cell is usually a small voltage signal. To make this signal usable, it needs to be conditioned. This can involve:
- Amplification: Using an operational amplifier to increase the signal strength.
- Filtering: Removing noise from the signal to improve accuracy.
- Analog to Digital Conversion: Converting the analog signal into a digital format for processing.
Calibration is essential to ensure accurate measurements. This involves:
- Zeroing: Setting the output of the load cell to zero when no load is applied.
- Span Adjustment: Applying known weights to the load cell and adjusting the output to match these weights.
Once the load cell is calibrated, you can begin measuring loads. This can be done using:
- Microcontrollers: Such as Arduino or Raspberry Pi, which can read the digital output from the load cell and process the data.
- Data Loggers: For applications requiring continuous monitoring and recording of load data.
Integrating load cells with PCBs allows for compact and efficient designs. Here's how to do it:
When designing a PCB for a load cell application, consider:
- Component Placement: Ensure that the load cell and signal conditioning components are placed close together to minimize noise.
- Power Supply: Provide a stable power supply for the load cell and signal conditioning circuits.
Create a schematic that includes:
- Load Cell Connections: Include the load cell connections to the signal conditioning circuit.
- Microcontroller Interface: Add connections for the microcontroller or data logger.
Once the schematic is complete, design the PCB layout. Pay attention to:
- Grounding: Ensure proper grounding to reduce noise.
- Trace Widths: Use appropriate trace widths for power and signal lines.
After finalizing the PCB design, send it for fabrication. Once you receive the PCB, solder the components, including the load cell, onto the board.
After assembly, test the PCB to ensure that the load cell is functioning correctly. This involves:
- Checking Connections: Ensure all connections are secure.
- Verifying Calibration: Recheck the calibration to ensure accurate measurements.
Load cells are used in various applications, including:
- Industrial Weighing: Used in scales for weighing products in manufacturing and shipping.
- Medical Devices: Used in devices like hospital beds to monitor patient weight.
- Automotive Testing: Used in crash testing and load testing of vehicles.
- Aerospace: Used in testing aircraft components for load-bearing capacity.
- Construction: Used in monitoring structural loads in buildings and bridges.
In addition to the common applications mentioned, load cells are increasingly being used in advanced technologies:
- Robotics: Load cells can be integrated into robotic systems to provide feedback on the weight of objects being manipulated, enhancing precision in tasks such as assembly and packaging.
- Smart Agriculture: Load cells are used in smart farming technologies to monitor the weight of produce, helping farmers optimize harvest times and reduce waste.
- IoT Integration: With the rise of the Internet of Things (IoT), load cells can be connected to the internet, allowing for remote monitoring and data analysis, which is particularly useful in logistics and supply chain management.

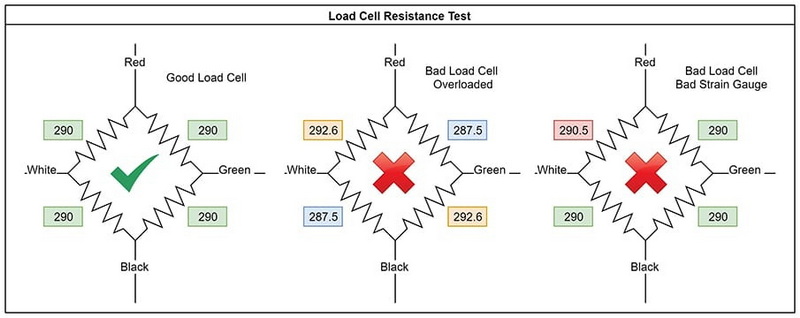

When working with load cells, you may encounter several common issues. Here are some troubleshooting tips:
- Inconsistent Readings: If the load cell provides inconsistent readings, check for loose connections or interference from nearby electrical devices. Ensure that the load cell is properly calibrated.
- Drift in Measurements: If the readings drift over time, it may indicate temperature changes affecting the load cell. Consider using temperature compensation techniques.
- Non-Responsive Load Cell: If the load cell does not respond, verify that it is powered correctly and that all connections are secure.
Measuring load with load cells and integrating them with PCBs is a vital skill in many engineering fields. By understanding the principles of load measurement, selecting the right load cell, and effectively using PCBs, you can create accurate and reliable measurement systems. Whether in industrial applications or research, mastering these techniques will enhance your ability to work with load measurement technologies.
A load cell is a complete device that converts a force into an electrical signal, while a strain gauge is a component that measures the strain (deformation) of an object. Load cells typically use strain gauges as part of their measurement mechanism.
Consider factors such as load capacity, accuracy, environmental conditions, and the specific application requirements when selecting a load cell.
Yes, but you must choose load cells that are designed for outdoor use, which typically have protective enclosures to withstand environmental factors like moisture and temperature changes.
Calibration frequency depends on the application and usage conditions. It is generally recommended to calibrate load cells at least once a year or whenever they are moved or subjected to significant changes in load conditions.
Load cells are commonly used in industrial weighing, medical devices, automotive testing, aerospace applications, and smart agriculture, among others. They are essential in any application requiring precise weight measurement.
