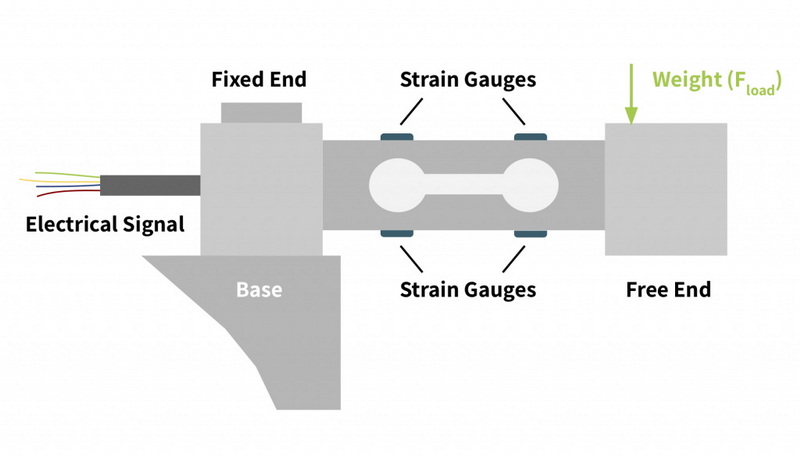

A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell uses strain gauges, which are devices that change their electrical resistance when stretched or compressed. When a load is applied to the load cell, the strain gauges deform, causing a change in resistance that can be measured and converted into a weight reading.
Load cells are widely used in various applications, including industrial weighing, automotive testing, and medical devices. Their ability to provide accurate and reliable measurements makes them essential in many fields.
These load cells are designed to measure compressive forces. They are often used in applications where the load is applied vertically. Compression load cells are typically robust and can handle high capacities, making them suitable for industrial applications.
Tension load cells measure tensile forces and are typically used in applications where the load is applied in a pulling manner. These load cells are often used in crane scales and hanging scales.
Shear beam load cells are used in applications where the load is applied at an angle. They are commonly found in platform scales and are known for their accuracy and stability.
Bending beam load cells measure bending forces and are often used in low-capacity applications. They are typically used in small scales and are known for their simplicity and cost-effectiveness.
S-type load cells can measure both tension and compression and are versatile for various applications. They are often used in laboratory settings and for testing materials.
To measure the output from a load cell, you will need the following equipment:
- Load Cell: The load cell you intend to measure.
- Power Supply: A stable power source to energize the load cell.
- Multimeter: A digital multimeter to measure the output voltage.
- Data Acquisition System (Optional): For more advanced measurements and data logging.
Begin by connecting the load cell to the power supply and the multimeter. Ensure that the connections are secure and that you are using the correct wiring configuration as specified by the load cell manufacturer.
Set the multimeter to measure DC voltage. Most load cells output a small voltage signal, typically in millivolts, so ensure that your multimeter can measure this range accurately.
To calibrate the load cell, apply a known weight to the load cell. This could be a set of calibrated weights or any object with a known mass. Ensure that the load is applied evenly and that the load cell is not subjected to any side forces.
With the known load applied, observe the reading on the multimeter. Record the output voltage. This voltage will correspond to the applied load based on the load cell's specifications.
To ensure accuracy, repeat the process with different known weights. This will help you create a calibration curve that relates the output voltage to the applied load.
The output from a load cell is typically expressed in millivolts per volt (mV/V). This means that for every volt supplied to the load cell, it will output a certain number of millivolts corresponding to the load applied. For example, a load cell rated at 2 mV/V will output 2 mV when a full-scale load is applied with a 1V supply.
Calibration is crucial for ensuring accurate measurements. It involves comparing the output of the load cell against known weights and adjusting the system to ensure that the readings are accurate. Calibration should be performed regularly, especially if the load cell is used in critical applications.
Calibration is not just a one-time process; it should be part of a regular maintenance schedule. Environmental factors such as temperature changes, humidity, and mechanical stress can affect the performance of load cells. Regular calibration helps to identify any drift in measurements and ensures that the load cell continues to provide accurate readings.
Load cells are used in various applications, including:
Load cells are used in scales for weighing products in manufacturing and shipping. They provide accurate measurements that are essential for inventory management and quality control.
Load cells are used to measure forces in crash tests and other automotive applications. They help engineers understand how vehicles respond to different forces and improve safety features.
Load cells are used in aircraft to measure weight and balance. Accurate weight measurements are critical for flight safety and performance.
Load cells are used in medical scales and devices to measure patient weight accurately. They are essential for monitoring health and ensuring proper dosage of medications based on weight.
Load cells are used in construction to monitor the weight of materials and ensure that structures can support the loads they will encounter. They are also used in testing the strength of materials.
If you encounter issues with load cell measurements, consider the following troubleshooting steps:
1. Check Connections: Ensure that all connections are secure and that there are no loose wires.
2. Inspect for Damage: Look for any physical damage to the load cell or wiring.
3. Verify Calibration: Ensure that the load cell is properly calibrated and that the calibration weights are accurate.
4. Test with Known Loads: Use known weights to verify that the load cell is providing accurate readings.
5. Environmental Factors: Consider the impact of temperature, humidity, and other environmental factors on the load cell's performance.
Measuring the output from a load cell is a straightforward process that requires careful setup and calibration. By following the steps outlined in this article, you can ensure accurate measurements and maintain the integrity of your systems. Load cells play a vital role in various industries, and understanding how to measure their output is essential for anyone working with these devices.
The typical output of a load cell is expressed in millivolts per volt (mV/V). For example, a load cell rated at 2 mV/V will output 2 mV when a full-scale load is applied with a 1V supply.
Load cells should be calibrated regularly, especially if they are used in critical applications. It is recommended to perform calibration at least once a year or whenever there are significant changes in environmental conditions.
Yes, some load cells, such as S-type load cells, can measure both tension and compression. This versatility makes them suitable for a wide range of applications.
Factors that can affect the accuracy of load cell measurements include temperature changes, humidity, mechanical stress, and improper calibration. Regular maintenance and calibration can help mitigate these issues.
When choosing a load cell, consider factors such as the type of load (tension or compression), the required capacity, the environment in which it will be used, and the level of accuracy needed. Consulting with a load cell manufacturer or supplier can also provide valuable insights.
