Before diving into the mounting process, it's essential to understand what a load cell is and how it works. A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and displayed as weight. Load cells come in various types, including:
- Compression Load Cells: These are designed to measure forces applied in a compressive manner. They are commonly used in applications where the load is applied vertically.
- Tension Load Cells: These measure forces applied in a tensile manner. They are often used in hanging scales and other applications where the load is suspended.
- Shear Beam Load Cells: These are used for measuring weight in a horizontal plane and are often found in platform scales.
A typical load cell system consists of several components:
- Load Cell: The primary sensor that measures weight.
- Mounting Hardware: Includes brackets, bolts, and other fixtures to secure the load cell.
- Signal Conditioning Equipment: Converts the load cell's output into a usable signal.
- Display Unit: Shows the weight measurement.
Understanding these components is crucial for ensuring that the load cell functions correctly and provides accurate measurements.
To mount a load cell effectively, you will need the following tools and materials:
- Load Cell: Ensure you have the correct type for your application.
- Mounting Brackets: These should be compatible with your load cell.
- Bolts and Nuts: Use high-strength materials to secure the load cell.
- Wrenches: For tightening bolts.
- Drill: If you need to create mounting holes.
- Level: To ensure the load cell is mounted correctly.
- Torque Wrench: To apply the correct amount of torque to the bolts.
- Screwdriver: For securing any additional components.
- Measuring Tape: To ensure proper alignment and spacing.
Before you begin, ensure that the surface where the load cell will be mounted is clean, flat, and free of debris. Any irregularities can affect the accuracy of the weight measurements. If necessary, use a leveling tool to check the surface.
Place the load cell in the desired location. If you are using a compression load cell, it should be positioned vertically. For tension load cells, ensure they are aligned with the direction of the force being measured. Proper positioning is critical for accurate readings.
Using the load cell as a template, mark the locations of the mounting holes on the surface. Ensure that the load cell is level and aligned correctly before marking. This step is vital to avoid misalignment during installation.
Using a drill, create holes at the marked locations. Make sure the holes are the correct size for the bolts you will be using. Clean any debris from the holes to ensure a secure fit. If you are drilling into concrete or metal, use the appropriate drill bits.
Attach the mounting brackets to the surface using bolts and nuts. Ensure that they are tightened securely but avoid over-tightening, which can damage the load cell. Use a torque wrench to apply the correct torque as specified by the manufacturer.
Once the brackets are in place, carefully attach the load cell. Ensure that it is seated properly in the brackets and that it is level. Use a torque wrench to tighten the bolts to the manufacturer's specifications. This step ensures that the load cell is securely mounted and will not shift during operation.
Follow the manufacturer's instructions to connect the load cell wiring to the signal conditioning equipment. Ensure that all connections are secure and that there are no loose wires. Proper wiring is essential for accurate signal transmission.
After installation, it's essential to calibrate the load cell to ensure accurate measurements. This process typically involves applying known weights and adjusting the output signal accordingly. Calibration should be performed regularly to maintain accuracy.
Once calibrated, test the load cell system by applying various weights and checking the readings on the display unit. Ensure that the measurements are consistent and accurate. If discrepancies are found, recheck the installation and calibration.
- Follow Manufacturer Guidelines: Always refer to the manufacturer's instructions for specific mounting and calibration procedures. Each load cell may have unique requirements.
- Use Proper Tools: Ensure you have the right tools for the job to avoid damaging the load cell or the mounting surface. Using the wrong tools can lead to improper installation.
- Check Alignment: Regularly check the alignment of the load cell to ensure it remains level and properly positioned. Misalignment can lead to inaccurate readings.
- Perform Regular Maintenance: Inspect the load cell and mounting hardware periodically to ensure everything is in good condition. Regular maintenance can prevent issues before they arise.
Load cells are used in a variety of applications across different industries. Some common uses include:
- Industrial Weighing: Load cells are widely used in industrial scales for weighing products during manufacturing and shipping.
- Medical Equipment: In hospitals, load cells are used in patient scales and other medical devices to ensure accurate weight measurements.
- Automotive Testing: Load cells are employed in testing the weight and load capacity of vehicles and components.
- Aerospace: In the aerospace industry, load cells are used to measure forces during testing of aircraft components.

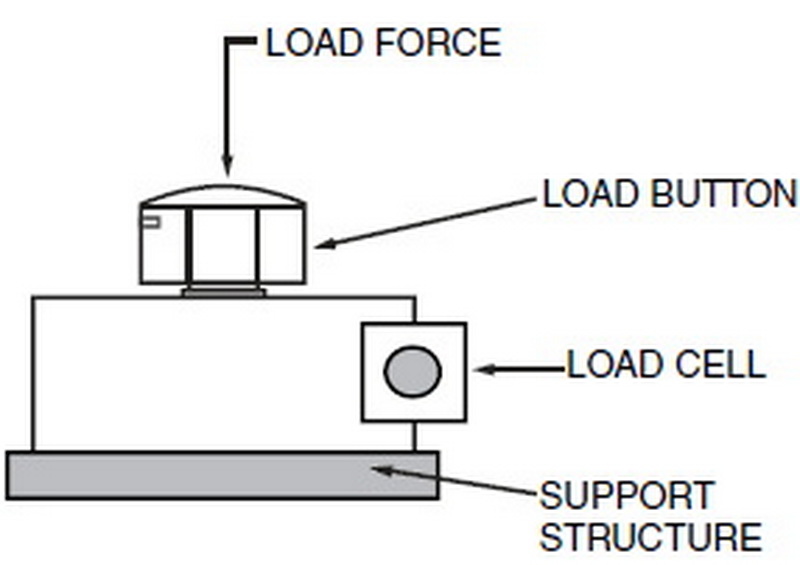

This diagram illustrates the proper positioning and alignment of a load cell during installation.

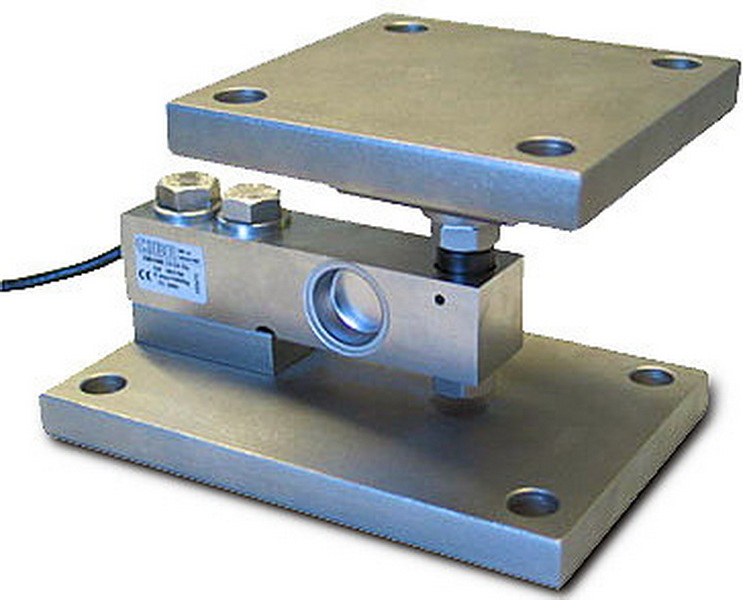

This image shows a complete load cell setup, including the load cell, mounting brackets, and display unit.
1. How to Install a Load Cell - The Basics
This video provides a step-by-step guide on installing a load cell, including tips and tricks for ensuring accuracy.
2. Load Cell Installation Guide
A comprehensive video that covers everything from selecting the right load cell to the final calibration process.
3. Common Mistakes in Load Cell Installation
This video highlights common pitfalls to avoid when mounting a load cell.
Even with proper installation, issues can arise with load cells. Here are some common problems and their solutions:
- Inconsistent Readings: If the load cell provides inconsistent readings, check for loose connections or misalignment. Ensure that the load cell is securely mounted and that there are no obstructions affecting its operation.
- Drift in Measurements: If the readings drift over time, recalibrate the load cell. Environmental factors such as temperature changes can affect performance, so regular calibration is essential.
- Mechanical Damage: Inspect the load cell for any signs of physical damage. If the load cell is damaged, it may need to be replaced to ensure accurate measurements.
Mounting a load cell is a straightforward process that requires careful attention to detail. By following the steps outlined in this guide and utilizing the provided visual aids and video resources, you can ensure a successful installation. Remember to perform regular maintenance and calibration to keep your load cell system functioning accurately.
A load cell is used to convert a force or weight into an electrical signal, which can then be measured and displayed. They are commonly used in scales and weighing systems.
The type of load cell you need depends on your application. Compression load cells are used for vertical loads, while tension load cells are used for horizontal or hanging loads.
It is recommended to calibrate your load cell at least once a year or whenever you notice discrepancies in measurements. Regular calibration ensures accuracy.
Yes, with the right tools and knowledge, you can install a load cell yourself. However, it is essential to follow the manufacturer's instructions carefully.
If your load cell is not functioning properly, check for loose connections, misalignment, or physical damage. If issues persist, consult the manufacturer or a professional technician for assistance.
