Half bridge load cells are essential components in various applications, including industrial weighing systems, structural health monitoring, and robotics. This guide will cover everything you need to know about half bridge load cells, including their mounting, wiring, calibration, and integration with microcontrollers like Arduino.

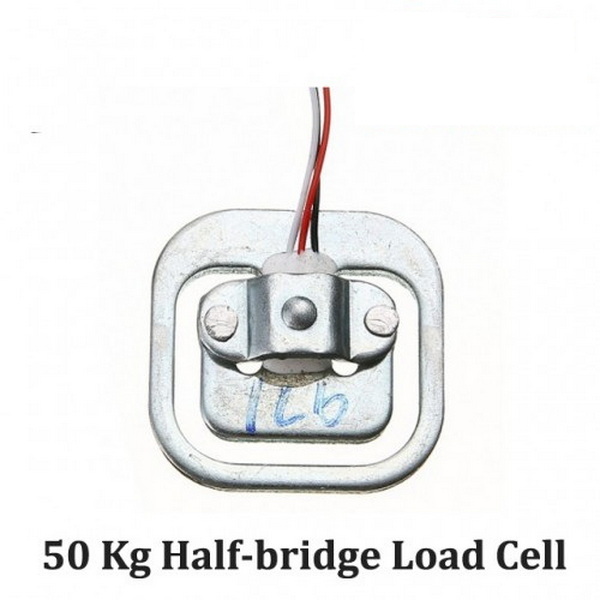

A half bridge load cell consists of two strain gauges arranged in a Wheatstone bridge configuration. This setup allows for precise measurement of force or weight by detecting the deformation of the load cell when a load is applied. Half bridge load cells are particularly useful in applications where space is limited or where only a portion of the load needs to be measured.
1. Strain Gauges: These are the primary sensing elements that convert mechanical deformation into an electrical signal.
2. Base Material: Typically made from aluminum or stainless steel, providing durability and resistance to environmental factors.
3. Wiring: Proper wiring is crucial for connecting the load cell to a signal conditioning circuit or microcontroller.

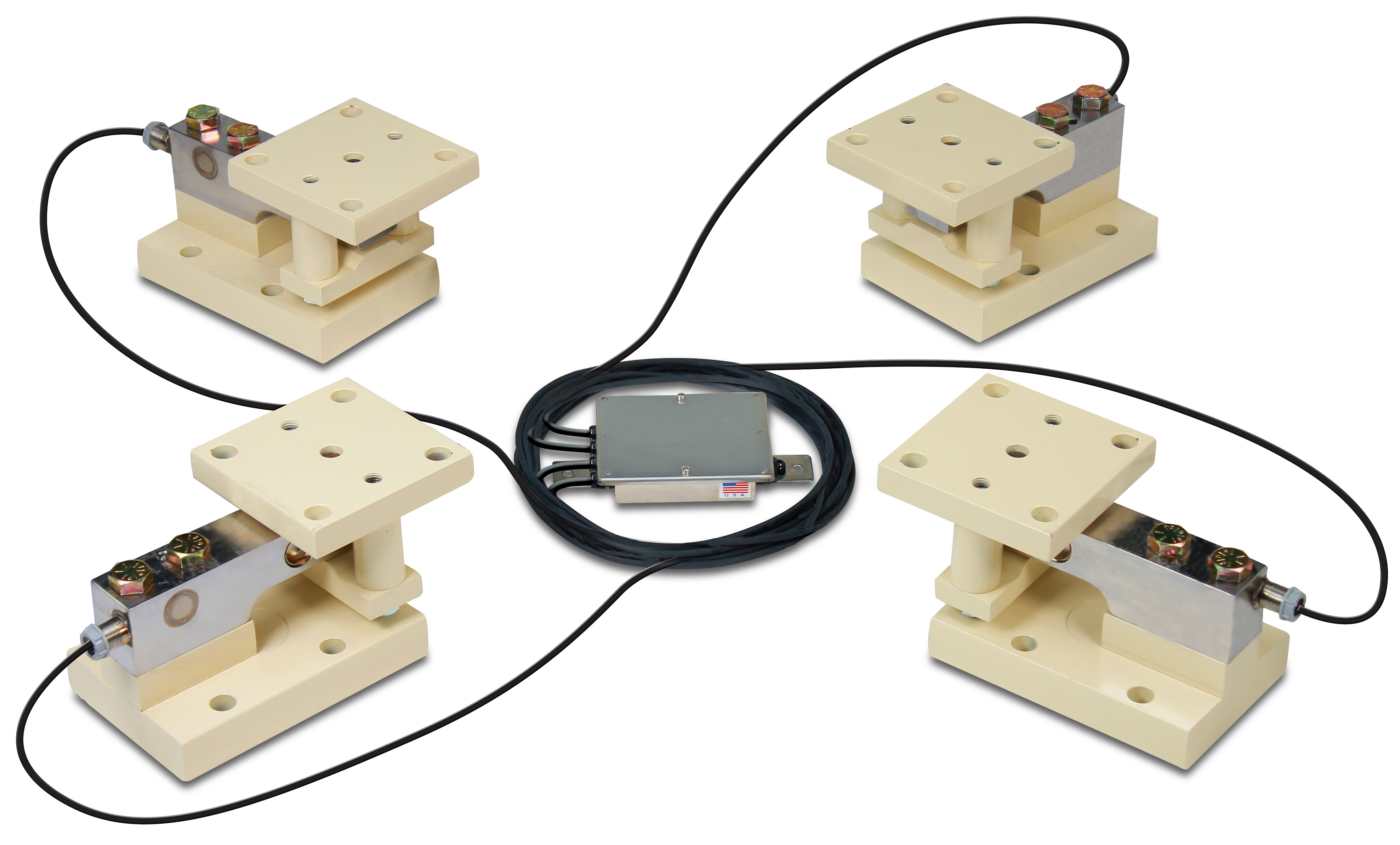

Proper mounting of a load cell is critical for accurate measurements. An improperly mounted load cell can lead to erroneous readings and affect the overall performance of the system. The mounting process should be approached with care to ensure that the load cell is positioned correctly and securely.
1. Prepare the Mounting Surface: Ensure the surface is clean and free from debris. Any dirt or contaminants can affect the load cell's performance.
2. Position the Load Cell: Determine the optimal position for the load cell to ensure accurate load measurement. The load cell should be aligned with the direction of the load to minimize errors.
3. Secure the Load Cell: Use screws or bolts to fasten the load cell to the mounting surface or bracket. Ensure that it is tightly fastened to prevent any movement during operation.
4. Connect the Wiring: Follow the wiring diagram provided with the load cell to ensure correct connections. Proper wiring is essential for the load cell to function correctly.
5. Calibrate the Load Cell: Apply known weights and adjust the output signal accordingly. Calibration is crucial for ensuring that the load cell provides accurate measurements.
The HX711 is a popular 24-bit analog-to-digital converter (ADC) designed specifically for weighing scales and industrial control applications. It is commonly used with load cells to amplify the small signals produced by the strain gauges.
- High Precision: Offers 24-bit resolution for accurate measurements.
- Low Noise: Designed to minimize noise in the signal, which is crucial for precise weight measurements.
- Easy to Use: Simple interface for connecting to microcontrollers like Arduino, making it accessible for hobbyists and professionals alike.
1. Connect the Load Cell: Connect the load cell wires to the HX711 according to the wiring diagram. Ensure that the connections are secure to prevent signal loss.
2. Power the HX711: Provide power to the HX711 from a suitable power source. The HX711 typically operates at 2.7V to 5.5V.
3. Connect to Microcontroller: Use digital pins on the microcontroller to read the output from the HX711. This connection allows the microcontroller to process the weight data.
Understanding the wiring diagram is crucial for proper installation. A typical wiring diagram for a half bridge load cell includes connections for the strain gauges and the power supply.
- Red: Excitation (+)
- Black: Excitation (-)
- Green: Signal (+)
- White: Signal (-)
Strain gauge load cells are widely used in various applications due to their accuracy and reliability. They work by measuring the deformation of a material when a load is applied.
When a load is applied to the load cell, the strain gauges deform, causing a change in their electrical resistance. This change is measured and converted into a weight reading. The sensitivity of strain gauges allows for the detection of very small changes in load, making them ideal for precision applications.
- Industrial Weighing: Used in scales for weighing products in manufacturing and shipping.
- Load Monitoring: Employed in structural health monitoring to measure loads on bridges and buildings.
- Automotive Testing: Used in crash testing and load testing of vehicle components to ensure safety and performance.
Calibration is essential to ensure that the load cell provides accurate measurements. This process involves applying known weights and adjusting the output signal accordingly.
1. Zero the Load Cell: Ensure that the load cell reads zero with no load applied. This step is crucial for accurate measurements.
2. Apply Known Weights: Gradually apply known weights and record the output. This data will be used to create a calibration curve.
3. Adjust the Output: Use the recorded data to adjust the output signal for accuracy. Calibration can be done using software or manually adjusting the circuit.
Integrating a load cell with an Arduino is a popular project for hobbyists and engineers. This setup allows for real-time weight measurement and data logging.
- Arduino Board: Any compatible Arduino board, such as the Arduino Uno or Nano.
- HX711 Module: For amplifying the load cell signal and converting it to a digital format.
- Load Cell: A half bridge load cell for weight measurement.
- Breadboard and Jumper Wires: For making connections and prototyping.
1. Avoid Overloading: Ensure that the load cell is not subjected to loads beyond its rated capacity. Overloading can damage the load cell and lead to inaccurate readings.
2. Temperature Considerations: Be aware of the operating temperature range of the load cell, as extreme temperatures can affect performance. Some load cells are designed for specific temperature ranges, so choose accordingly.
3. Vibration Isolation: If the load cell is used in a vibrating environment, consider using vibration isolation mounts to improve accuracy. This can help prevent false readings caused by external vibrations.
4. Regular Maintenance: Periodically check the load cell and its connections for wear and tear, and recalibrate as necessary. Regular maintenance ensures long-term reliability and accuracy.
Digital scales often use load cells to provide accurate weight measurements. These scales can display weight readings on a digital screen, making them user-friendly and efficient.
- High Accuracy: Provides precise weight measurements, essential for applications requiring exact measurements.
- User-Friendly Interface: Easy to read and operate, often featuring LCD displays for clear visibility.
- Compact Design: Suitable for various applications, including kitchen scales, industrial scales, and laboratory balances.
Understanding the schematic of a load cell can help in troubleshooting and designing custom applications. A typical load cell schematic includes the strain gauges, power supply connections, and output signals.
Half bridge load cells are versatile and essential components in many applications. By understanding their operation, proper mounting techniques, wiring, and calibration, you can ensure accurate and reliable measurements. Whether you are working on an industrial project or a DIY Arduino project, mastering the use of load cells will enhance your capabilities in measurement and control systems.
A half bridge load cell uses two strain gauges, while a full bridge load cell uses four. The full bridge configuration provides greater sensitivity and accuracy, making it suitable for more demanding applications.
You can test the load cell by applying known weights and checking the output. If the readings are consistent and match the applied weights, the load cell is functioning correctly.
Yes, a half bridge load cell can be used with an Arduino by connecting it to an HX711 amplifier. This setup allows for easy reading and processing of weight data.
Factors such as temperature, humidity, mechanical stress, and improper mounting can affect the accuracy of a load cell. Regular calibration and maintenance can help mitigate these issues.
Calibration frequency depends on the application and usage conditions. For critical applications, it is recommended to calibrate the load cell at least once a month or after significant changes in the environment or load conditions.
