Before diving into the mounting process, it's essential to understand what a shear beam load cell is and how it works. A shear beam load cell is a type of transducer that converts a force or weight into an electrical signal. It operates on the principle of shear strain, which occurs when a load is applied to the beam, causing it to deform. This deformation is measured and converted into an electrical signal, which can then be interpreted by a display or control system.
A typical shear beam load cell consists of several key components:
- Beam: The main structure that bears the load.
- Strain Gauges: Sensors attached to the beam that measure the deformation.
- Housing: Protects the internal components from environmental factors.
- Wiring: Connects the load cell to the measurement system.
To mount a shear beam load cell, you will need the following tools:
- Wrenches: For tightening bolts and nuts.
- Drill: To create holes for mounting.
- Level: To ensure the load cell is installed correctly.
- Torque Wrench: To apply the correct amount of torque to the bolts.
- Measuring Tape: For accurate measurements during installation.
Before mounting the load cell, ensure that the installation site is clean and free of debris. The surface should be level and capable of supporting the load cell and the maximum load it will measure.
Using a measuring tape, determine the exact location where the load cell will be mounted. Mark the positions for the mounting holes on the surface. It's crucial to ensure that the load cell is aligned correctly to avoid measurement errors.
Using a drill, create holes at the marked positions. The size of the holes should match the specifications provided by the load cell manufacturer.

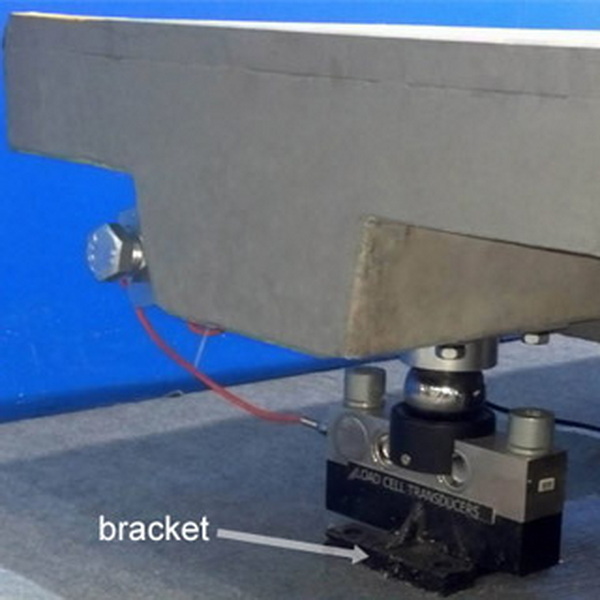

Position the shear beam load cell over the drilled holes. Align the mounting holes of the load cell with the holes in the surface. Insert bolts through the load cell's mounting holes and into the drilled holes.
Using a wrench, tighten the bolts securely. It's important to apply even pressure to avoid misalignment. A torque wrench should be used to ensure that the bolts are tightened to the manufacturer's specifications.
Once the load cell is securely mounted, connect the wiring. Follow the wiring diagram provided by the manufacturer to ensure correct connections. This step is crucial for accurate signal transmission.
After installation, the load cell must be calibrated to ensure accurate measurements. This process involves applying known weights to the load cell and adjusting the output signal accordingly. Calibration should be performed according to the manufacturer's guidelines.
Once calibrated, conduct a test to verify that the load cell is functioning correctly. Apply various weights and check the output signal against the expected values. This step is essential to confirm that the installation was successful.
1. Follow Manufacturer Guidelines: Always refer to the manufacturer's instructions for specific mounting and wiring requirements.
2. Use Proper Tools: Ensure that you have the right tools for the job to avoid damaging the load cell or the mounting surface.
3. Check Alignment: Proper alignment is crucial for accurate measurements. Use a level to ensure the load cell is installed correctly.
4. Regular Maintenance: Periodically check the load cell for signs of wear or damage, and recalibrate as necessary.
Shear beam load cells are widely used in various applications, including:
- Weighing Scales: Used in industrial and commercial weighing systems.
- Force Measurement: Employed in testing machines to measure force.
- Load Monitoring: Used in structures to monitor load conditions.
Even with proper installation, issues can arise with shear beam load cells. Here are some common problems and their solutions:
If the load cell is providing inaccurate readings, check the following:
- Ensure that the load cell is properly calibrated.
- Verify that the load is evenly distributed across the beam.
- Check for any mechanical obstructions that may affect the load cell's performance.
If there are electrical problems, such as erratic readings or no signal:
- Inspect the wiring for any damage or loose connections.
- Ensure that the load cell is connected to a compatible measurement system.
- Check for any interference from nearby electrical equipment.
Physical damage to the load cell can occur due to excessive loads or environmental factors. Regularly inspect the load cell for:
- Cracks or deformation in the beam.
- Corrosion or rust on the housing.
- Loose mounting bolts that may lead to misalignment.
Mounting a shear beam load cell is a straightforward process that requires careful attention to detail. By following the steps outlined in this article and adhering to best practices, you can ensure accurate measurements and reliable performance. Remember to regularly maintain and calibrate your load cell for optimal results.
A shear beam load cell is a type of transducer that measures force or weight by converting the mechanical strain caused by a load into an electrical signal.
You can verify calibration by applying known weights to the load cell and checking if the output signal matches the expected values. If there is a discrepancy, recalibration is necessary.
Shear beam load cells are commonly used in weighing scales, force measurement applications, and load monitoring in various industrial settings.
Calibration frequency depends on the application and usage conditions. It is generally recommended to calibrate load cells at least once a year or whenever there are significant changes in the environment or load conditions.
Yes, with the right tools and following the manufacturer's guidelines, you can install a shear beam load cell yourself. However, if you are unsure, it is advisable to seek professional assistance.
