Before diving into the mounting process, it's essential to understand what a single point load cell is. A single point load cell is a type of load cell that is designed to measure weight or force applied at a single point. It is commonly used in applications where the load is applied vertically, such as in platform scales and bench scales.
A typical single point load cell consists of the following components:
- Sensing Element: This is the part of the load cell that deforms under load, generating a measurable electrical signal.
- Wiring: Load cells have wires that connect to a signal conditioner or a display unit.
- Mounting Bracket: This is used to secure the load cell in place.
- Calibration Weights: These are used to calibrate the load cell after installation.
To mount a single point load cell, you will need the following tools:
- Wrench: For tightening bolts and securing the load cell.
- Screwdriver: For connecting wires and securing the load cell to the mounting bracket.
- Drill: If you need to create holes for mounting.
- Level: To ensure the load cell is mounted correctly.
- Calibrated Weights: For calibration after installation.
Before you begin, ensure that the surface where the load cell will be mounted is clean, flat, and free of debris. This will help in achieving accurate measurements. A well-prepared surface minimizes the risk of misalignment and ensures that the load cell functions correctly.
Place the load cell in the desired location. Ensure that it is aligned with the load application point. The load cell should be positioned so that the load is applied vertically. This alignment is crucial for accurate readings, as any misalignment can lead to erroneous measurements.
Using the mounting bracket, secure the load cell to the surface. Use a wrench to tighten the bolts, ensuring that the load cell is firmly in place. It is crucial to avoid over-tightening, as this can damage the load cell. A secure installation prevents movement during operation, which can affect measurement accuracy.

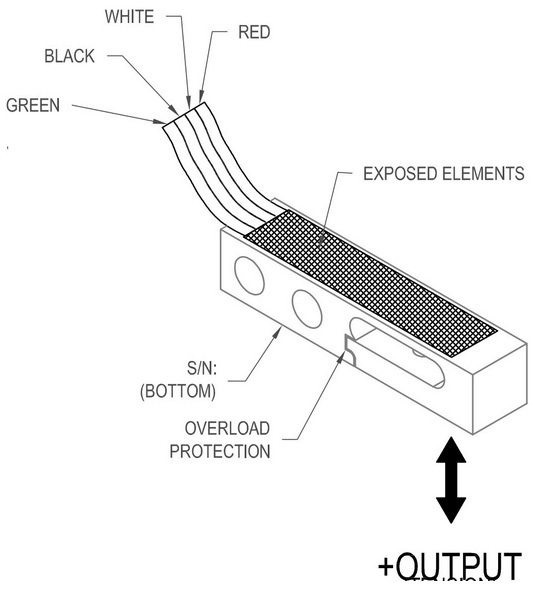

Once the load cell is secured, connect the wiring to the load cell. Follow the manufacturer's wiring diagram to ensure correct connections. Typically, load cells have four wires: two for the excitation voltage and two for the output signal. Proper wiring is essential for the load cell to function correctly and provide accurate readings.
Use a level to check that the load cell is perfectly horizontal. This step is vital for ensuring accurate measurements. Adjust the mounting as necessary to achieve a level position. An unlevel load cell can lead to incorrect readings, so this step should not be overlooked.
After mounting, it is essential to calibrate the load cell. Place calibrated weights on the load cell and record the output. Adjust the calibration settings on your display unit or signal conditioner until the readings match the known weights. Calibration ensures that the load cell provides accurate measurements across its range.
Once calibrated, perform a test by applying different weights to the load cell. Check the readings on the display unit to ensure they are accurate. If discrepancies are found, recheck the wiring and calibration. Testing the load cell under various conditions helps verify its performance and reliability.
1. Follow Manufacturer Instructions: Always refer to the manufacturer's guidelines for specific mounting instructions and wiring diagrams. Each load cell may have unique requirements that should be adhered to for optimal performance.
2. Avoid Side Loads: Ensure that the load is applied vertically to prevent side loads, which can affect accuracy. Side loads can cause the load cell to read incorrectly, leading to potential errors in weight measurement.
3. Use Proper Tools: Using the right tools will help in achieving a secure and accurate installation. Proper tools not only make the job easier but also reduce the risk of damaging the load cell during installation.
4. Regular Maintenance: Periodically check the load cell for any signs of wear or damage and recalibrate as necessary. Regular maintenance helps ensure long-term accuracy and reliability of the load cell.
5. Environmental Considerations: Consider the environment where the load cell will be used. Factors such as temperature, humidity, and exposure to chemicals can affect the performance of the load cell. Ensure that the load cell is suitable for the intended environment.
Single point load cells are widely used in various applications, including:
- Weighing Scales: Used in retail and industrial scales for accurate weight measurement. They are commonly found in grocery stores, warehouses, and shipping facilities.
- Batching Systems: In food and chemical industries for precise ingredient measurement. Batching systems rely on accurate weight measurements to ensure product consistency.
- Material Testing: For testing the strength and durability of materials. Load cells are used in laboratories to measure the force required to break or deform materials.
- Automated Systems: In robotics and automation for load monitoring. Load cells can provide feedback to control systems, ensuring that processes operate within specified limits.
- Medical Equipment: Used in hospital beds and medical scales for patient weight measurement. Accurate weight measurement is critical in medical settings for dosage calculations and health assessments.
Even with proper installation, issues can arise with load cells. Here are some common problems and their solutions:
Problem: The load cell provides varying readings for the same weight.
Solution: Check for loose connections in the wiring and ensure that the load cell is level. Recalibrate the load cell if necessary.
Problem: The load cell is overloaded, leading to damage.
Solution: Ensure that the load applied does not exceed the load cell's rated capacity. Use a load cell with a higher capacity if necessary.
Problem: The readings gradually change over time without any change in load.
Solution: This may indicate a need for recalibration. Check for environmental factors that may affect the load cell, such as temperature changes.
Problem: Physical damage to the load cell.
Solution: Inspect the load cell for any signs of damage. If damaged, replace the load cell to ensure accurate measurements.
Problem: Fluctuating readings due to electrical interference.
Solution: Ensure that the wiring is properly shielded and away from sources of electrical noise. Use twisted pair wiring for signal connections to minimize interference.
Mounting a single point load cell is a straightforward process that requires careful attention to detail. By following the steps outlined in this article and adhering to best practices, you can ensure accurate and reliable measurements. Remember to regularly maintain and calibrate your load cell for optimal performance.
A single point load cell is a type of load cell designed to measure weight or force applied at a single point, commonly used in applications like platform scales.
To calibrate a load cell, place known weights on it and adjust the output readings on your display unit until they match the known weights.
Load cells are commonly used in weighing scales, batching systems, material testing, automated systems, and medical equipment.
Check for loose wiring connections, ensure the load cell is level, and recalibrate if necessary.
Regularly inspect the load cell for wear, recalibrate as needed, and ensure it is used within its rated capacity to maintain accuracy and reliability.
