Load cells are essential components in various industries, providing accurate measurements of weight and force. They are widely used in applications ranging from industrial scales to medical devices. However, over time, these devices may require rebalancing to maintain their accuracy and reliability. This article will guide you through the process of rebalancing a load cell, discussing the necessary tools, steps, and best practices to ensure optimal performance.

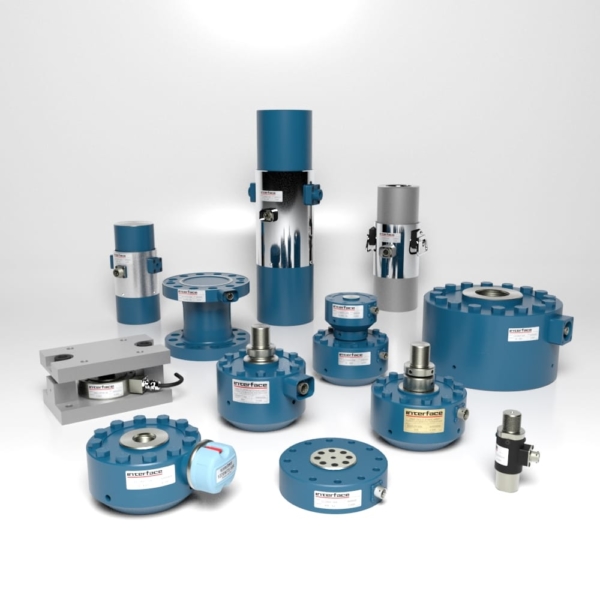

1. Compression Load Cells: These load cells measure the force applied to them in a compressive manner. They are commonly used in applications like weighing scales and industrial machinery.
2. Tension Load Cells: These are designed to measure tensile forces. They are often used in applications such as hanging scales and material testing.
3. Shear Beam Load Cells: These load cells are used in applications where the load is applied at an angle. They are commonly found in platform scales.
4. Bending Beam Load Cells: These load cells measure the bending of a beam under load. They are often used in low-capacity applications.
Rebalancing a load cell is necessary for several reasons:
- Wear and Tear: Over time, load cells can experience wear and tear, leading to inaccuracies in measurements. Regular use can cause mechanical components to loosen or degrade, affecting performance.
- Environmental Factors: Changes in temperature, humidity, and other environmental factors can affect the performance of load cells. For instance, extreme temperatures can cause materials to expand or contract, leading to measurement errors.
- Mechanical Stress: Excessive loads or improper installation can cause mechanical stress, resulting in the need for rebalancing. If a load cell is subjected to loads beyond its rated capacity, it may become permanently deformed.
Before starting the rebalancing process, gather the following tools:
- Digital Multimeter: To measure the output voltage of the load cell. This tool is essential for ensuring that the load cell is functioning correctly.
- Calibration Weights: Known weights to test the accuracy of the load cell. These weights should be certified to ensure their accuracy.
- Screwdriver Set: For adjusting the load cell settings. Different types of screws may require specific screwdriver heads.
- Wrench Set: To secure any loose connections. Properly tightened connections are crucial for accurate measurements.
- Leveling Tool: To ensure the load cell is properly aligned. An unlevel load cell can lead to inaccurate measurements.
Before beginning any work on the load cell, ensure that all safety protocols are followed. Disconnect power to the load cell and ensure that the area is clear of any hazards. Wearing safety goggles and gloves is advisable to protect against any accidental injuries.
Begin by visually inspecting the load cell for any signs of damage or wear. Look for cracks, corrosion, or loose connections. If any issues are found, address them before proceeding. A thorough inspection can prevent further complications during the rebalancing process.
Using a digital multimeter, check the wiring connections of the load cell. Ensure that all connections are secure and that there are no frayed wires. If any issues are found, repair or replace the wiring as necessary. Proper wiring is crucial for accurate signal transmission.
Using a leveling tool, ensure that the load cell is properly aligned. An unlevel load cell can lead to inaccurate measurements. Adjust the load cell's position as needed to achieve a level orientation. This step is vital, especially in applications where precision is critical.
Once the load cell is level, it's time to apply calibration weights. Start with a known weight that is within the load cell's capacity. Gradually increase the weight, taking care to note the output voltage readings on the multimeter.
As you apply each weight, record the output voltage readings. This data will help you determine if the load cell is functioning correctly. Ideally, the output should correspond to the known weight applied. Keeping detailed records will assist in identifying any discrepancies.
If the output readings do not match the expected values, adjustments will need to be made. Use the screwdriver set to access the load cell's adjustment screws. Make small adjustments and re-test with the calibration weights. It's important to make incremental changes to avoid overshooting the desired output.
Continue applying calibration weights and adjusting the load cell until the output readings are accurate. This process may take some time, so patience is key. Consistent testing will help ensure that the load cell is properly calibrated.

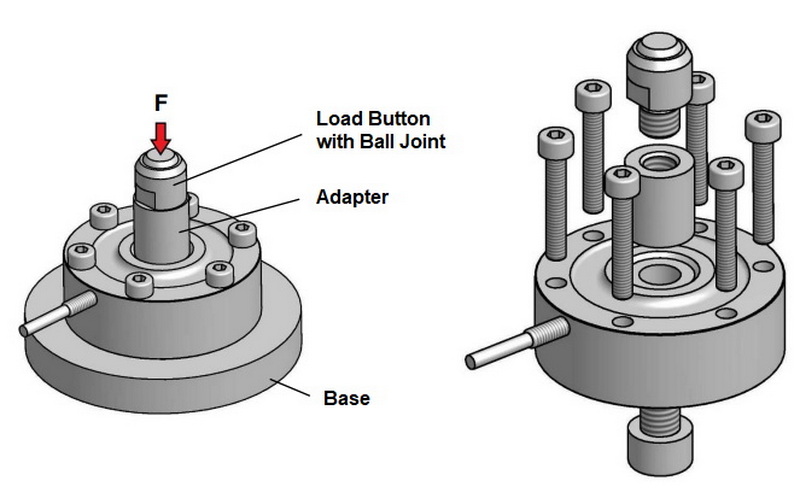

Once the load cell is accurately measuring the weights, finalize any adjustments and secure all connections. Ensure that the load cell is properly mounted and that there are no loose parts. A secure installation is essential for maintaining accuracy over time.
After rebalancing the load cell, document the process. Record the adjustments made, the weights used, and the final output readings. This documentation will be useful for future reference and maintenance. Keeping a log of calibration activities can help track performance over time.
To ensure the longevity and accuracy of your load cell, follow these best practices:
- Regular Calibration: Schedule regular calibration checks to maintain accuracy. Depending on usage, this could be monthly, quarterly, or annually.
- Environmental Control: Keep the load cell in a controlled environment to minimize the effects of temperature and humidity. Avoid placing load cells in areas with extreme conditions.
- Proper Installation: Ensure that the load cell is installed correctly to prevent mechanical stress. Follow manufacturer guidelines for installation to avoid common pitfalls.
- Routine Inspections: Conduct routine inspections to catch any potential issues early. Regular checks can help identify wear and tear before they lead to significant problems.
- Training and Awareness: Ensure that personnel handling load cells are trained in proper usage and maintenance. Awareness of best practices can significantly reduce the risk of errors.
Rebalancing a load cell is a crucial process that ensures accurate measurements and reliable performance. By following the steps outlined in this article, you can effectively rebalance your load cell and maintain its functionality. Regular maintenance and calibration will help extend the life of your load cell and ensure that it continues to provide accurate readings for years to come.
Common signs include inconsistent readings, drift in measurements, and physical damage to the load cell. If you notice any of these issues, it's time to consider rebalancing.
The frequency of calibration depends on the application and usage. For critical applications, monthly or quarterly calibrations may be necessary, while less critical applications may require annual checks.
Yes, environmental factors such as temperature, humidity, and vibration can significantly impact load cell performance. It's essential to keep load cells in controlled environments to minimize these effects.
If a load cell is damaged, it's best to consult the manufacturer or a qualified technician for repair or replacement. Attempting to fix it without proper knowledge can lead to further issues.
Yes, documenting the calibration process is essential for tracking performance over time and ensuring compliance with industry standards. It also helps identify trends and potential issues early on.
