Understanding how to read a load cell data sheet is essential for engineers, technicians, and anyone involved in the design and implementation of weighing systems. Load cells are critical components in various applications, from industrial scales to medical devices. This article will guide you through the key elements of a load cell data sheet, helping you make informed decisions when selecting and using load cells.
A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure the deformation of a material under load. Load cells are used in various applications, including weighing scales, force measurement, and industrial automation.
When you look at a load cell data sheet, you will encounter several important specifications and parameters. Understanding these components is crucial for selecting the right load cell for your application.
The capacity of a load cell refers to the maximum load it can measure. This is typically expressed in units such as pounds (lbs) or kilograms (kg). It is essential to choose a load cell with a capacity that exceeds the maximum expected load to ensure accurate measurements and prevent damage. For example, if you expect to measure loads up to 500 kg, selecting a load cell with a capacity of at least 600 kg is advisable to provide a safety margin.
Accuracy indicates how close the measured value is to the actual value. Load cell accuracy is often expressed as a percentage of the full-scale output. For example, a load cell with an accuracy of ±0.1% means that the measurement can vary by 0.1% from the actual load. High accuracy is particularly important in applications where precise measurements are critical, such as in laboratory settings or high-precision manufacturing processes.
Sensitivity is the ratio of the change in output signal to the change in load. It is usually expressed in millivolts per volt (mV/V). A higher sensitivity means that the load cell can detect smaller changes in load, which is crucial for applications requiring precise measurements. For instance, in a laboratory environment where minute weight changes are significant, a load cell with high sensitivity is necessary.

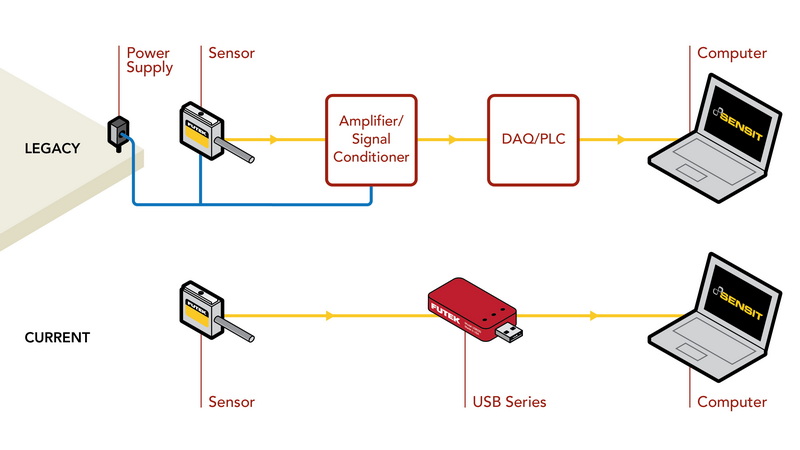

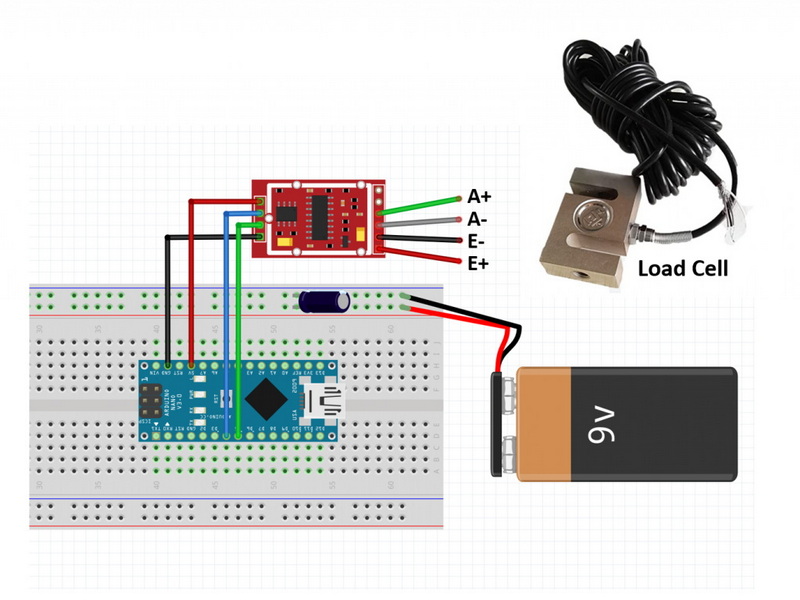

The output signal of a load cell can be analog or digital. Analog load cells typically produce a voltage signal proportional to the load, while digital load cells provide a digital output that can be easily interfaced with microcontrollers and other digital systems. Understanding the type of output signal is essential for ensuring compatibility with your data acquisition system.
Load cells are affected by temperature changes, which can impact their accuracy and performance. The temperature range specified in the data sheet indicates the operating conditions under which the load cell can function correctly. It is essential to consider the environmental conditions of your application when selecting a load cell. For example, if the load cell will be used in a cold storage facility, ensure that it can operate effectively at low temperatures.
The material and construction of a load cell affect its durability and suitability for specific applications. Common materials include aluminum and stainless steel. Aluminum load cells are lightweight and cost-effective, while stainless steel load cells offer higher durability and resistance to corrosion. In harsh environments, such as those involving chemicals or moisture, stainless steel load cells are often preferred due to their robustness.
The data sheet will provide information on how to mount the load cell properly. This includes details on the recommended mounting hardware, alignment, and any specific installation instructions. Proper installation is crucial for accurate measurements and the longevity of the load cell. Misalignment during installation can lead to measurement errors, so following the manufacturer's guidelines is essential.
Calibration is the process of adjusting the load cell output to ensure accurate measurements. The data sheet may provide information on how to calibrate the load cell, including the recommended weights and procedures. Regular calibration is essential for maintaining measurement accuracy over time. It is advisable to establish a calibration schedule based on the frequency of use and the critical nature of the measurements.
Many load cells are designed to operate in harsh environments. The data sheet may specify the level of environmental protection, such as IP ratings, which indicate the load cell's resistance to dust and water. Choosing a load cell with appropriate environmental protection is vital for applications exposed to moisture, dust, or extreme temperatures. For example, an IP67 rating indicates that the load cell is dust-tight and can withstand immersion in water up to a certain depth.
The electrical specifications of a load cell include details about the excitation voltage, input impedance, and output impedance. These parameters are essential for ensuring compatibility with your measurement system. Understanding these specifications will help you select the right power supply and signal conditioning equipment. For instance, if the load cell requires a specific excitation voltage, ensure that your power supply can provide that voltage without fluctuations.
Now that you are familiar with the key components of a load cell data sheet, let's discuss how to interpret this information effectively.
Before diving into the data sheet, clearly define your application requirements. Consider factors such as the maximum load, required accuracy, environmental conditions, and installation constraints. This will help you narrow down your options and focus on the most relevant specifications.
Start by checking the load cell's capacity and accuracy. Ensure that the capacity exceeds your maximum expected load and that the accuracy meets your application's requirements. If you need high precision, look for load cells with lower accuracy percentages. For example, in a laboratory setting, a load cell with an accuracy of ±0.01% may be necessary.
Next, review the sensitivity and output signal specifications. If your application requires detecting small changes in load, choose a load cell with high sensitivity. Additionally, consider whether you need an analog or digital output based on your measurement system. Digital outputs are often easier to integrate with modern data acquisition systems.
Check the temperature range and environmental protection ratings. Ensure that the load cell can operate effectively in your application's conditions. If your application involves exposure to moisture or dust, select a load cell with appropriate IP ratings. For example, an IP65 rating indicates that the load cell is protected against dust and low-pressure water jets.
Finally, read the installation and calibration instructions carefully. Proper installation is crucial for accurate measurements, and following the manufacturer's calibration procedures will help maintain measurement accuracy over time. It is also beneficial to document the calibration process for future reference.
Load cells are used in various applications across different industries. Here are some common uses:
Load cells are the primary components in electronic weighing scales, providing accurate weight measurements for retail, industrial, and medical applications. They are used in everything from grocery store scales to large industrial platforms.
In research and development, load cells are used to measure forces in various experiments, such as tensile testing and material strength analysis. This is crucial in fields like materials science and engineering.
Load cells play a crucial role in industrial automation systems, providing feedback for processes such as filling, packaging, and material handling. They help ensure that products are filled to the correct weight, improving quality control.
In the medical field, load cells are used in devices such as patient scales and force measurement systems for rehabilitation. Accurate weight measurement is vital for patient care and monitoring.
Load cells are employed in aerospace and automotive testing to measure forces and loads during crash tests, structural testing, and performance evaluations. This data is essential for ensuring safety and compliance with regulations.
Reading a load cell data sheet is a vital skill for anyone involved in the design and implementation of weighing systems. By understanding the key specifications and how to interpret them, you can select the right load cell for your application, ensuring accurate and reliable measurements. Remember to consider your application requirements, review the capacity and accuracy, and follow proper installation and calibration procedures.
With this knowledge, you are now equipped to navigate load cell data sheets confidently and make informed decisions in your projects.
Analog load cells produce a continuous voltage signal proportional to the load, while digital load cells provide a discrete digital output. Digital load cells are often easier to integrate with modern data acquisition systems and can offer additional features such as built-in calibration.
The frequency of calibration depends on the application and the critical nature of the measurements. For high-precision applications, it is advisable to calibrate load cells at least once a year or more frequently if they are used in harsh environments.
Yes, load cells can be used in outdoor applications, but it is essential to select a load cell with appropriate environmental protection ratings, such as IP65 or higher, to ensure resistance to moisture and dust.
Several factors can affect the accuracy of a load cell, including temperature variations, mechanical misalignment, improper installation, and electrical noise. Regular calibration and proper installation can help mitigate these issues.
To choose the right load cell, consider factors such as the maximum load, required accuracy, environmental conditions, and installation constraints. Reviewing the specifications in the load cell data sheet will help you make an informed decision.
