Understanding how to read a load cell manufacturer data sheet is crucial for engineers, technicians, and anyone involved in the design and implementation of weighing systems. Load cells are essential components in various applications, from industrial scales to medical devices. This article will guide you through the key elements of a load cell data sheet, helping you make informed decisions when selecting and using load cells.

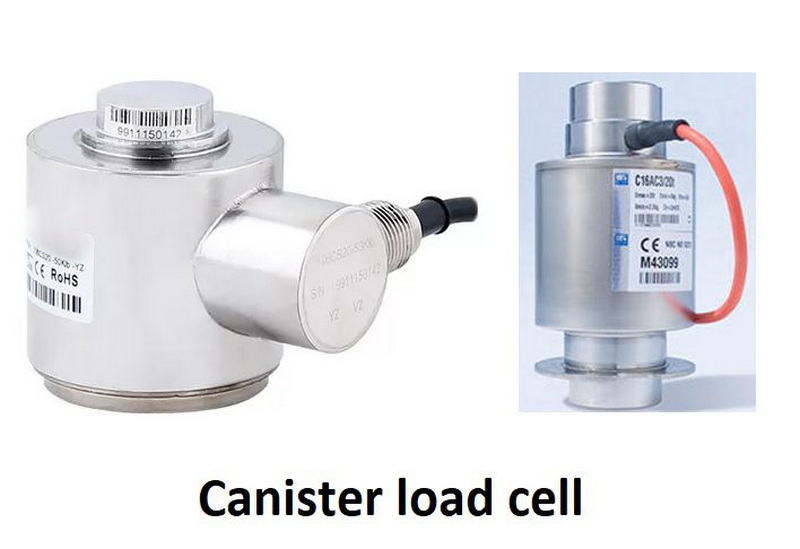

A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and recorded, allowing for precise weight measurements. Load cells come in various types, including strain gauge, hydraulic, and pneumatic, each with its unique characteristics and applications.

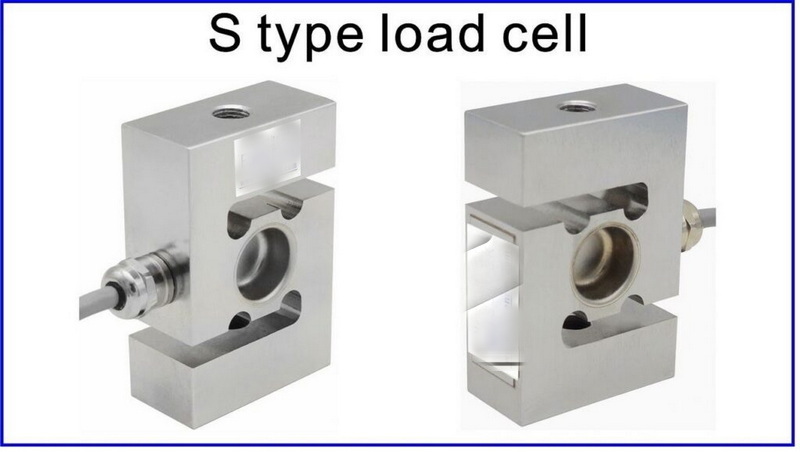

1. Strain Gauge Load Cells: These are the most common type, utilizing strain gauges to measure deformation under load. They are known for their accuracy and reliability, making them suitable for a wide range of applications.

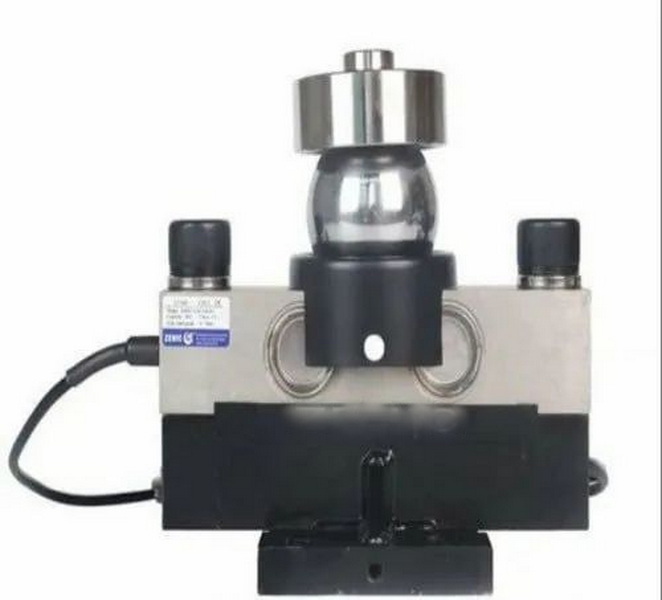

2. Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications, such as truck scales and industrial weighing systems. They can handle large loads and are less affected by temperature changes.
3. Pneumatic Load Cells: These operate using air pressure and are suitable for specific applications where electrical signals may not be ideal, such as in explosive environments. They provide a high degree of accuracy and are often used in laboratory settings.
When you receive a load cell data sheet, it typically contains several critical sections. Understanding these sections will help you interpret the specifications and select the right load cell for your application.
The specifications section provides detailed information about the load cell's performance characteristics. Key specifications include:
- Capacity: The maximum load the load cell can measure, usually expressed in pounds or kilograms. It is essential to choose a load cell with a capacity that exceeds the maximum expected load to ensure safety and accuracy.
- Accuracy: The degree to which the load cell's output corresponds to the actual load. This is often expressed as a percentage of the full scale. Higher accuracy is crucial in applications where precise measurements are required.
- Sensitivity: The output signal per unit of load, typically measured in mV/V (millivolts per volt). This indicates how much the output signal changes with a change in load.
- Non-linearity: The deviation of the load cell's output from a straight line, usually expressed as a percentage of the full scale. This is important for understanding how the load cell performs across its entire range.
This section outlines the physical attributes of the load cell, including:

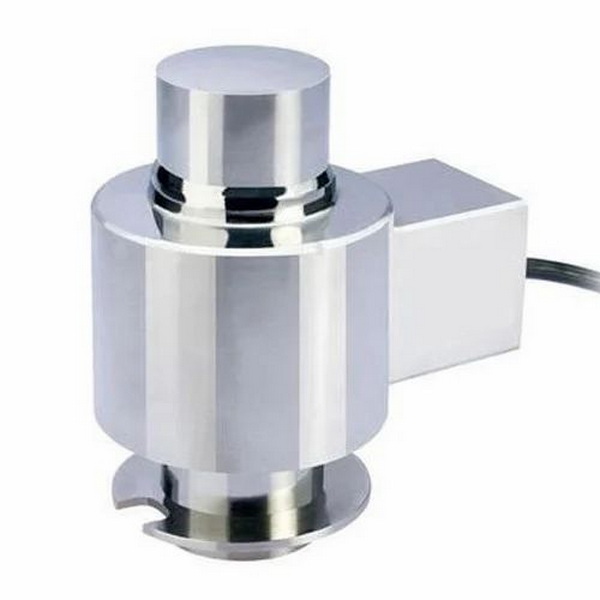

- Dimensions: The size and shape of the load cell, which is crucial for installation. Ensure that the load cell fits within the designated space in your application.
- Material: The construction material, such as aluminum or stainless steel, which affects durability and environmental resistance. Stainless steel is often preferred for its corrosion resistance in harsh environments.
- Mounting Options: Information on how the load cell can be installed, including any required accessories. Proper mounting is essential for accurate measurements and to prevent mechanical stress on the load cell.
Understanding the electrical characteristics is vital for integrating the load cell into your system. This section typically includes:
- Excitation Voltage: The voltage required to power the load cell, usually between 5V and 15V. Ensure that your power supply matches the load cell's requirements.
- Output Signal: The type of signal produced by the load cell, such as analog or digital. Analog signals are common, but digital outputs can provide more precise data and easier integration with modern systems.
- Input Impedance: The resistance the load cell presents to the excitation voltage. This affects how the load cell interacts with the measuring device.
Load cells are often used in various environments, so this section details the conditions under which the load cell can operate effectively. Key factors include:
- Temperature Range: The operating temperature limits, which can affect performance. Ensure that the load cell can operate within the temperature range of your application.
- Ingress Protection (IP) Rating: Indicates the load cell's resistance to dust and moisture, essential for outdoor or industrial applications. A higher IP rating means better protection against environmental factors.
Calibration is crucial for ensuring accurate measurements. This section may provide information on:
- Calibration Procedures: Guidelines on how to calibrate the load cell for accurate readings. Regular calibration is necessary to maintain accuracy over time.
- Testing Standards: Any industry standards the load cell complies with, such as ISO or ASTM. Compliance with these standards ensures that the load cell meets specific performance criteria.
Now that you understand the key components of a load cell data sheet, let's discuss how to interpret the information effectively.
Before diving into the data sheet, clarify your application requirements. Consider factors such as:
- The maximum load you need to measure.
- The required accuracy and sensitivity.
- Environmental conditions, including temperature and exposure to moisture.
Start by reviewing the specifications section. Ensure that the load cell's capacity meets your application's needs. Check the accuracy and sensitivity to confirm that the load cell will provide the precision required for your measurements.
Next, look at the mechanical characteristics to ensure the load cell will fit in your intended installation space. Verify the electrical characteristics to ensure compatibility with your existing systems.
If your application involves harsh conditions, pay close attention to the environmental conditions section. Ensure the load cell can withstand the temperature range and has an appropriate IP rating for dust and moisture resistance.
Finally, check the calibration and testing information. Understanding how to calibrate the load cell and any standards it meets will help ensure accurate and reliable measurements.
When reading a load cell data sheet, avoid these common mistakes:
- Ignoring Capacity: Always ensure the load cell's capacity exceeds your maximum load requirement. Underestimating the load can lead to equipment failure and inaccurate measurements.
- Overlooking Environmental Ratings: Failing to consider environmental conditions can lead to premature failure of the load cell. Ensure that the load cell is suitable for the specific conditions it will face.
- Neglecting Calibration Procedures: Proper calibration is essential for accurate measurements; don't skip this step. Regular checks and recalibrations are necessary to maintain performance.
Load cells are used in a wide range of applications across various industries. Here are some common uses:
- Industrial Weighing: Load cells are integral to industrial scales used in manufacturing and logistics. They provide accurate weight measurements for inventory management and shipping.
- Medical Devices: In healthcare, load cells are used in devices such as patient scales and infusion pumps, ensuring precise measurements for patient care.
- Automotive Testing: Load cells are employed in crash testing and vehicle weight measurement, helping manufacturers ensure safety and compliance with regulations.
- Aerospace: In the aerospace industry, load cells are used for testing components and systems, ensuring they can withstand the forces experienced during flight.
Reading a load cell manufacturer data sheet is a critical skill for anyone involved in weighing systems. By understanding the key components and how to interpret the information, you can select the right load cell for your application, ensuring accurate and reliable measurements.
Strain gauge load cells measure deformation using electrical resistance changes, making them suitable for a wide range of applications. Hydraulic load cells use fluid pressure to measure weight and are often used in heavy-duty applications due to their ability to handle large loads.
Load cells should be calibrated regularly, typically every six months to a year, depending on the application and usage. Frequent calibration is essential in high-precision environments to maintain accuracy.
Yes, load cells can be used outdoors, but it is essential to select models with appropriate ingress protection (IP) ratings to ensure they can withstand exposure to moisture and dust.
Several factors can affect the accuracy of a load cell, including temperature variations, mechanical stress, and improper installation. Regular calibration and proper installation can help mitigate these issues.
To choose the right load cell, consider the maximum load capacity, required accuracy, environmental conditions, and installation space. Reviewing the manufacturer's data sheet will provide essential specifications to guide your decision.
