A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure the deformation of a material under load. When a load is applied, the strain gauge deforms, causing a change in its electrical resistance. This change is then converted into a measurable electrical signal.
Load cells are widely used in various applications, including weighing systems, industrial automation, and force measurement. Their ability to provide accurate and reliable measurements makes them essential in many fields, from manufacturing to research and development.
1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, with strain gauges attached to measure the deformation. Strain gauge load cells are known for their accuracy and reliability, making them suitable for a wide range of applications.
2. Hydraulic Load Cells: These load cells use hydraulic fluid to measure force. When a load is applied, the fluid pressure changes, which can be measured. Hydraulic load cells are often used in heavy-duty applications, such as weighing large containers or vehicles.
3. Pneumatic Load Cells: Similar to hydraulic load cells, these use air pressure to measure force. They are often used in applications where high accuracy is required, such as in laboratory settings.
4. Capacitive Load Cells: These load cells measure changes in capacitance caused by the deformation of a dielectric material under load. Capacitive load cells are less common but can be useful in specific applications where other types may not be suitable.

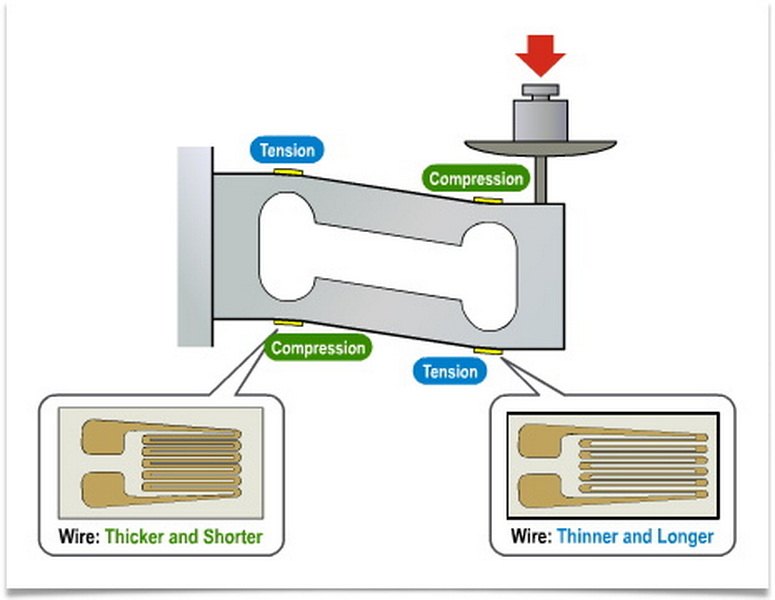

Load cells operate on the principle of converting mechanical force into an electrical signal. When a load is applied to the load cell, it causes a deformation in the sensing element. This deformation changes the resistance of the strain gauges attached to the element. The change in resistance is proportional to the applied load.

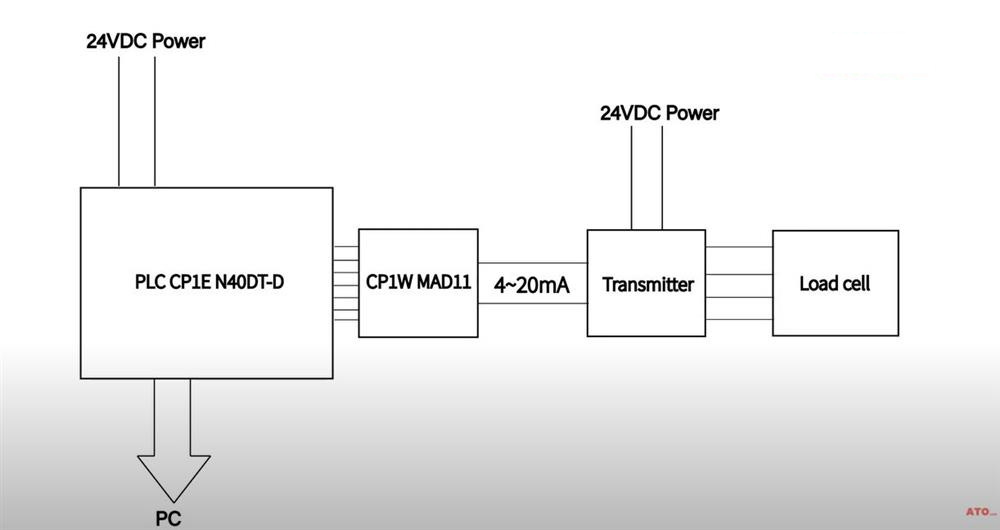

The electrical signal generated by the load cell is typically very small, so it is often amplified using an instrumentation amplifier. The amplified signal can then be processed by a microcontroller or a digital display to provide a readable output.
Understanding the components of a load cell can help you better grasp how they function. A typical load cell consists of:
- Sensing Element: This is the part of the load cell that deforms under load. It is usually made of a metal alloy that provides the necessary strength and durability.
- Strain Gauges: These are bonded to the sensing element and measure the deformation. They are typically made of a thin wire or foil arranged in a grid pattern.
- Wheatstone Bridge Circuit: This circuit configuration is used to convert the resistance change from the strain gauges into a voltage signal. It is essential for accurate measurements.
- Housing: The load cell is encased in a protective housing to shield it from environmental factors and mechanical damage.
To read a load cell, you need to follow these steps:

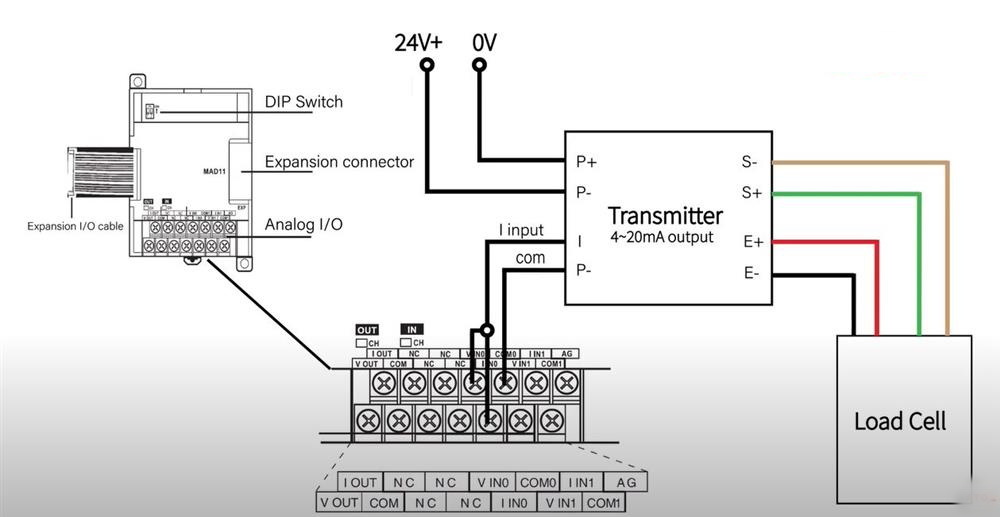

1. Connect the Load Cell: Ensure that the load cell is properly connected to a power supply and a signal conditioning circuit. The load cell typically has four wires: two for excitation voltage and two for the output signal.
2. Calibrate the Load Cell: Calibration is essential to ensure accurate readings. Place known weights on the load cell and record the output signal. Use this data to create a calibration curve or to adjust the output signal to match the known weights.
3. Measure the Output Signal: Once calibrated, you can measure the output signal from the load cell. This signal is usually in millivolts and needs to be amplified for better readability.
4. Convert the Signal: Use a microcontroller or a digital display to convert the output signal into a readable format, such as weight in kilograms or pounds.
5. Display the Reading: Finally, display the reading on a digital screen or log it for further analysis.
To illustrate the process of reading a load cell, consider a simple weighing scale application.
1. Setup: Connect a strain gauge load cell to an HX711 amplifier module, which is designed for weighing scales. The load cell will have four wires: red (excitation+), black (excitation-), white (signal+), and green (signal-).
2. Calibration: Place a known weight, such as a 5 kg weight, on the scale. Record the output from the HX711. Repeat this process with different weights (e.g., 10 kg, 15 kg) to create a calibration curve.
3. Signal Measurement: After calibration, when a user places an object on the scale, the load cell will generate a corresponding output signal. The HX711 will amplify this signal and convert it into a digital format.
4. Display: The microcontroller will process the signal and display the weight on an LCD screen, providing the user with an accurate reading.
Load cells are used in various applications, including:
- Weighing Scales: Load cells are the primary components in electronic weighing scales, providing accurate weight measurements. They are used in retail, laboratories, and industrial settings.
- Industrial Automation: Load cells are used in automated systems to monitor and control processes, such as filling containers with precise amounts of material. This ensures consistency and quality in production.
- Force Measurement: In research and development, load cells are used to measure forces in experiments, such as tensile testing of materials. This data is crucial for material science and engineering applications.
- Load Monitoring: Load cells are used in cranes and hoists to monitor the load being lifted, ensuring safety and preventing overload. This is vital in construction and heavy lifting operations.
- Medical Applications: Load cells are used in medical devices, such as patient scales and force measurement devices in rehabilitation equipment. Accurate measurements are essential for patient care and treatment.
When working with load cells, you may encounter some common issues:
- Drift: Over time, the output signal may drift, leading to inaccurate readings. Regular calibration can help mitigate this issue. It is advisable to calibrate the load cell periodically, especially if it is used in a dynamic environment.
- Noise: Electrical noise can interfere with the signal from the load cell. Using shielded cables and proper grounding can help reduce noise. Additionally, implementing filtering techniques in the signal processing stage can enhance measurement accuracy.
- Overloading: Applying a load beyond the rated capacity of the load cell can cause permanent damage. Always ensure that the load cell is rated for the expected loads. It is also beneficial to use load cells with a higher capacity than the maximum expected load to provide a safety margin.
- Temperature Effects: Load cells can be sensitive to temperature changes, which may affect their accuracy. Using temperature compensation techniques can help maintain accuracy across varying temperatures.
Reading a load cell involves understanding its operation, proper connection, calibration, and signal processing. With the right knowledge and tools, you can effectively use load cells in various applications, from weighing scales to industrial automation.
By following the steps outlined in this article, you can ensure accurate and reliable measurements with load cells. Whether you are a professional engineer or a hobbyist, mastering the use of load cells will enhance your ability to measure force and weight accurately.
A load cell is a complete device that converts force into an electrical signal, while a strain gauge is a component used within a load cell to measure deformation. Load cells typically contain one or more strain gauges as part of their sensing mechanism.
When selecting a load cell, consider factors such as the maximum load capacity, accuracy, environmental conditions (e.g., temperature, humidity), and the type of measurement required (static or dynamic). Additionally, ensure that the load cell is compatible with your signal conditioning equipment.
Yes, load cells can be used in outdoor applications, but it is essential to choose a load cell with appropriate environmental protection, such as an IP rating. Weatherproof or waterproof load cells are designed to withstand harsh conditions.
Calibration frequency depends on the application and usage conditions. For critical applications, it is advisable to calibrate the load cell at least once a year or whenever significant changes occur, such as after moving the load cell or after a heavy overload.
If you experience inconsistent readings, check for potential issues such as electrical noise, improper connections, or mechanical interference. Ensure that the load cell is properly calibrated and that the environment is stable. If problems persist, consider consulting the manufacturer for further troubleshooting assistance.
