Load cells are essential components in various applications, including weighing scales, industrial automation, and force measurement systems. A four pin load cell is a type of load cell that uses four wires to measure the force applied to it. Understanding how to read and interpret the signals from a four pin load cell is crucial for accurate measurements. In this article, we will explore the principles behind load cells, how to connect and read a four pin load cell, and practical applications.
A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied to the load cell, it deforms slightly, causing a change in resistance in the strain gauges. This change in resistance is then converted into an electrical signal that can be measured and interpreted.
There are several types of load cells, including:
1. Compression Load Cells: These load cells measure the force applied in a compressive manner.
2. Tension Load Cells: These load cells measure the force applied in a tensile manner.
3. Shear Beam Load Cells: These load cells measure the force applied in shear.
4. Bending Beam Load Cells: These load cells measure the bending force.
For this article, we will focus on the four pin load cell, which is commonly used in various applications due to its simplicity and effectiveness.
A four pin load cell typically has four wires: two for the excitation voltage and two for the output signal. The wires are usually color-coded as follows:
- Red: Excitation + (V+)
- Black: Excitation - (V-)
- Green: Signal + (S+)
- White: Signal - (S-)
When a load is applied to the load cell, the strain gauges inside the cell deform, causing a change in resistance. This change in resistance alters the voltage output, which can be measured using a microcontroller or an analog-to-digital converter (ADC). The output signal is proportional to the load applied, allowing for accurate weight measurements.
To read a four pin load cell, you need to connect it to a suitable microcontroller or signal conditioning circuit. Here's a step-by-step guide on how to do this:
- Four pin load cell
- HX711 load cell amplifier
- Arduino or any microcontroller
- Jumper wires
- Breadboard (optional)

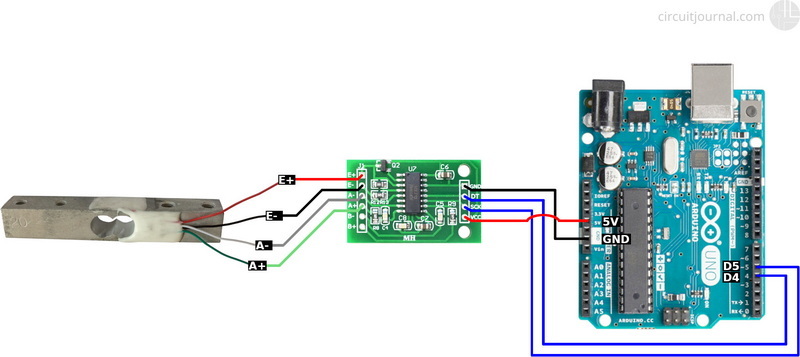

1. Connect the Load Cell to the HX711:
- Connect the red wire (V+) of the load cell to the E+ terminal of the HX711.
- Connect the black wire (V-) of the load cell to the E- terminal of the HX711.
- Connect the green wire (S+) of the load cell to the A+ terminal of the HX711.
- Connect the white wire (S-) of the load cell to the A- terminal of the HX711.
1. Connect the HX711 to the Arduino:
- Connect the VCC pin of the HX711 to the 5V pin on the Arduino.
- Connect the GND pin of the HX711 to the GND pin on the Arduino.
- Connect the DT pin of the HX711 to a digital pin on the Arduino (e.g., pin 2).
- Connect the SCK pin of the HX711 to another digital pin on the Arduino (e.g., pin 3).
Before using the load cell for accurate measurements, it is essential to calibrate it. To do this, you will need a known weight. Follow these steps:
1. Place a known weight on the load cell.
2. Note the reading displayed on the serial monitor.
3. Adjust the calibration factor in your code until the reading matches the known weight.
Four pin load cells are widely used in various applications, including:
1. Weighing Scales: Load cells are the primary components in electronic weighing scales, providing accurate weight measurements.
2. Industrial Automation: Load cells are used in automated systems to monitor and control the weight of materials during production.
3. Force Measurement: Load cells are used in testing machines to measure the force applied to materials.
4. Load Monitoring: Load cells are used in cranes and hoists to monitor the load being lifted, ensuring safety and compliance.
5. Medical Equipment: Load cells are utilized in medical devices for precise weight measurements, such as in patient scales and infusion pumps.
Using a four pin load cell offers several advantages:
- Higher Accuracy: The four wire configuration minimizes the effects of lead resistance, resulting in more accurate measurements.
- Temperature Compensation: Four pin load cells can provide better temperature compensation, ensuring consistent performance across varying conditions.
- Ease of Integration: They are easy to integrate with microcontrollers and signal conditioning circuits, making them suitable for various applications.
When working with load cells, you may encounter some common issues. Here are a few troubleshooting tips:
1. Inconsistent Readings: Ensure that the load cell is properly calibrated and that there are no mechanical issues causing instability. Check for any loose connections or damaged wires.
2. No Output Signal: Check the wiring connections to ensure that all wires are securely connected. Verify that the HX711 is powered correctly and that the Arduino is functioning.
3. Drifting Readings: This can occur due to temperature changes or electrical noise. Consider using shielding or filtering techniques to minimize interference. Additionally, ensure that the load cell is mounted securely and not subject to vibrations.
4. Overloading: Ensure that the load applied does not exceed the load cell's rated capacity. Overloading can damage the load cell and lead to inaccurate readings.
5. Calibration Issues: If the readings are consistently off, double-check the calibration process. Make sure to use a known weight that is within the load cell's capacity for accurate calibration.
Reading a four pin load cell is a straightforward process that involves understanding the wiring, connecting it to a microcontroller, and calibrating it for accurate measurements. With the right setup, you can utilize load cells in various applications, from weighing scales to industrial automation systems. By following the steps outlined in this article, you can successfully read and interpret the signals from a four pin load cell.
A four pin load cell typically has two wires for excitation and two for the output signal, while a six pin load cell includes additional wires for temperature compensation and improved accuracy. The six pin configuration can provide better performance in varying environmental conditions.
To check if your load cell is functioning properly, you can perform a simple test by applying a known weight and observing the output signal. If the readings are consistent and match the known weight, the load cell is likely functioning correctly. Additionally, check for any physical damage or loose connections.
Yes, a four pin load cell can be used with most microcontrollers, provided you have the appropriate signal conditioning circuit, such as the HX711 amplifier. Ensure that the microcontroller can handle the voltage and current requirements of the load cell.
If your load cell readings are unstable, check for mechanical stability, ensure that the load cell is properly calibrated, and verify that there are no electrical interferences. Additionally, consider implementing averaging techniques in your code to smooth out the readings.
To improve the accuracy of your load cell measurements, ensure proper calibration, minimize electrical noise, and use high-quality components. Additionally, consider using a load cell with a higher rated capacity and implementing temperature compensation techniques.
