In the world of electronics and IoT (Internet of Things), load cells play a crucial role in measuring weight and force. They are widely used in various applications, from industrial scales to smart home devices. The ESP8266, a low-cost Wi-Fi microchip with full TCP/IP stack and microcontroller capability, is an excellent choice for reading load cell data and transmitting it wirelessly. This article will guide you through the process of reading load cell data using the ESP8266, including the necessary components, wiring, coding, calibration, and practical applications.
A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change can be measured and converted into a weight reading.
1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are often used in scales and weighing systems.
2. Tension Load Cells: These measure the force applied in a tensile manner. They are commonly used in applications like hanging scales.
3. Bending Beam Load Cells: These are used in applications where the load is applied to a beam, causing it to bend.
4. S-Type Load Cells: These load cells are shaped like an "S" and can measure both tension and compression. They are versatile and often used in industrial applications.
5. Shear Beam Load Cells: These are designed to measure loads in a shear direction and are commonly used in platform scales.
To read load cell data using the ESP8266, you will need the following components:
1. ESP8266 Module: This microcontroller will read the data from the load cell and transmit it over Wi-Fi.
2. Load Cell: A strain gauge load cell suitable for your application.
3. HX711 Amplifier: This is a precision 24-bit analog-to-digital converter (ADC) designed for weigh scales and industrial control applications.
4. Breadboard and Jumper Wires: For prototyping and connecting the components.
5. Power Supply: A suitable power source for the ESP8266 and HX711.
6. Optional: An LCD display or OLED display to show the weight readings locally.

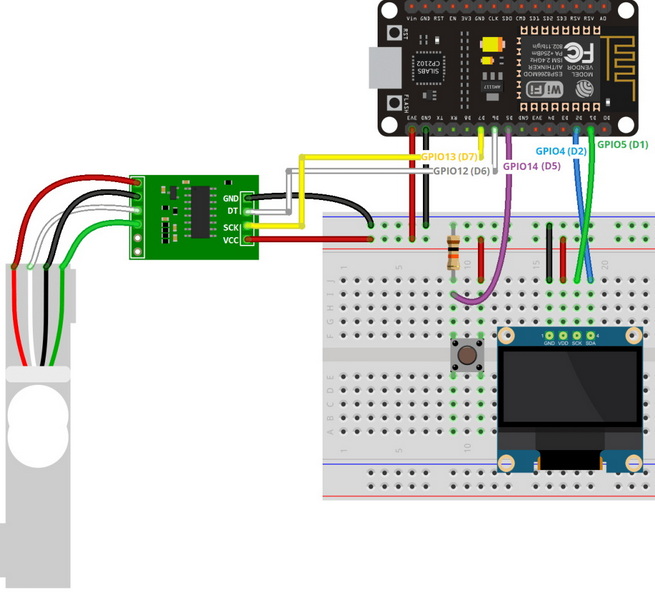

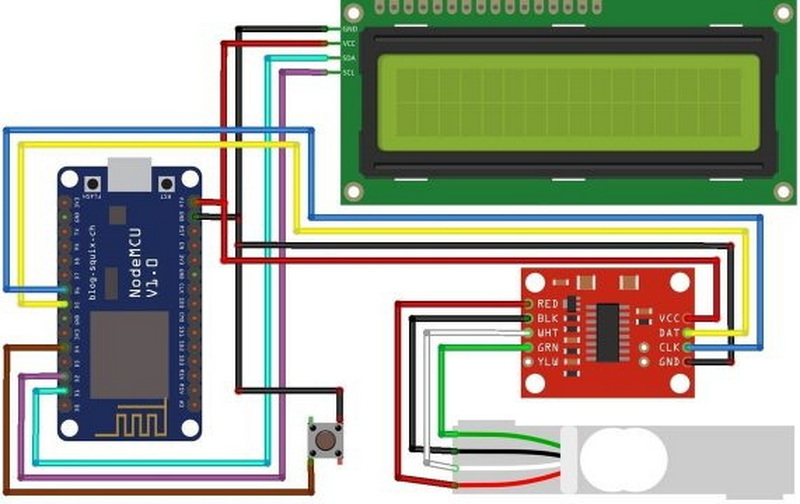

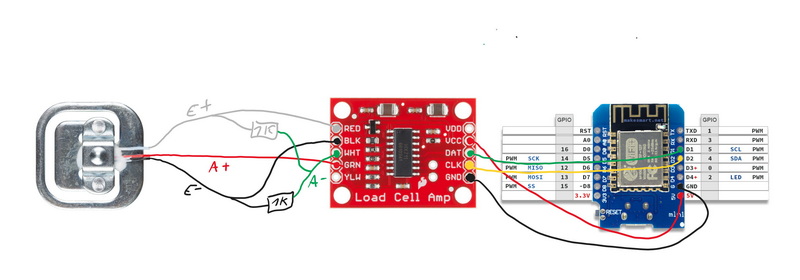

The wiring of the components is crucial for the proper functioning of the load cell and ESP8266. Below is a simple wiring diagram to connect the load cell, HX711, and ESP8266.
1. Load Cell to HX711:
◆ Connect the red wire of the load cell to E+ on the HX711.
◆ Connect the black wire to E-.
◆ Connect the white wire to A-.
◆ Connect the green wire to A+.
2. HX711 to ESP8266:
◆ Connect the VCC pin of the HX711 to the 3.3V pin of the ESP8266.
◆ Connect the GND pin of the HX711 to the GND pin of the ESP8266.
◆ Connect the DT (Data) pin of the HX711 to a digital pin on the ESP8266 (e.g., D2).
◆ Connect the SCK (Clock) pin of the HX711 to another digital pin on the ESP8266 (e.g., D1).
Once the wiring is complete, the next step is to write the code to read the load cell data. We will use the Arduino IDE to program the ESP8266. Make sure you have the necessary libraries installed, such as the HX711 library.
◆ Libraries: The HX711 library is included to facilitate communication with the HX711 module.
◆ Pin Definitions: The data and clock pins are defined for the HX711.
◆ Setup Function: Initializes the serial communication and the scale. The scale factor is set based on calibration.
◆ Loop Function: Continuously reads the weight from the load cell and prints it to the serial monitor.
Calibration is essential to ensure accurate weight readings. To calibrate the load cell, follow these steps:
1. Tare the Scale: Place no weight on the load cell and call the tare() function to reset the scale to zero.
2. Add a Known Weight: Place a known weight on the load cell and note the reading from the serial monitor.
3. Calculate the Scale Factor: Use the formula:
Update the scale factor in the code accordingly.Sending Data Over Wi-Fi
One of the advantages of using the ESP8266 is its ability to send data over Wi-Fi. You can send the weight readings to a web server or an IoT platform like Blynk or ThingSpeak.
◆ Wi-Fi Connection: The ESP8266 connects to the specified Wi-Fi network.
◆ HTTP Request: The weight data is sent to the server using an HTTP GET request.
Reading load cell data with the ESP8266 opens up numerous practical applications:
1. Smart Weighing Scales: Create a digital weighing scale that can send weight data to your smartphone or cloud service.
2. Inventory Management: Use load cells to monitor stock levels in warehouses and send alerts when items need to be restocked.
3. Agricultural Applications: Monitor the weight of feed or produce in real-time, helping farmers manage their resources more efficiently.
4. Fitness Equipment: Integrate load cells into gym equipment to track user performance and provide feedback.
5. Automated Packaging Systems: Use load cells to ensure that products are packaged with the correct weight, reducing waste and improving efficiency.
When working with load cells and the ESP8266, you may encounter some common issues. Here are a few troubleshooting tips:
1. Inaccurate Readings: If the readings are inconsistent or inaccurate, ensure that the load cell is properly calibrated. Check the wiring connections to ensure they are secure.
2. Wi-Fi Connection Problems: If the ESP8266 fails to connect to Wi-Fi, verify that the SSID and password are correct. Ensure that the Wi-Fi network is functioning properly.
3. Power Supply Issues: Ensure that the ESP8266 and HX711 are receiving adequate power. Insufficient power can lead to erratic behavior.
4. Noise in Readings: If you notice fluctuations in the readings, consider adding a capacitor across the power supply pins of the HX711 to filter out noise.
5. Software Errors: If you encounter compilation errors, ensure that you have installed the necessary libraries and that your code is free of syntax errors.
In this article, we explored how to read load cell data using the ESP8266. We covered the necessary components, wiring, coding, calibration, and practical applications. The combination of load cells and the ESP8266 allows for the creation of innovative IoT solutions that can enhance various industries. With the ability to send data wirelessly, you can monitor weight measurements in real-time, making it a valuable tool for both personal and professional use.
A load cell is a transducer that converts a force or weight into an electrical signal. It works by measuring the deformation of a strain gauge when a load is applied.
To calibrate a load cell, tare it to zero, apply a known weight, and calculate the scale factor using the formula: Scale Factor = Known Weight / Reading from Load Cell.
Yes, you can use various types of load cells with the ESP8266, but ensure that the load cell's specifications match your application requirements.
The HX711 is a precision 24-bit analog-to-digital converter designed for weigh scales. It amplifies the small signals from load cells, making it easier to read accurate weight measurements.
You can visualize load cell data by sending it to a web server or using IoT platforms like Blynk or ThingSpeak, which provide dashboards for real-time monitoring.
