Load cells are essential components in various applications, from industrial scales to medical devices. They convert mechanical force into an electrical signal, allowing for precise measurements of weight or force. Understanding how to read load cell voltage is crucial for anyone working with these devices, whether in engineering, manufacturing, or research. This article will guide you through the process of reading load cell voltage, including setup, measurement techniques, and troubleshooting tips.
1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, causing a change in resistance in the attached strain gauges. Strain gauge load cells are known for their accuracy and reliability, making them suitable for a wide range of applications.
2. Hydraulic Load Cells: These use fluid pressure to measure force. They are often used in heavy-duty applications where high capacities are required. Hydraulic load cells can handle extreme loads and are commonly found in industrial settings, such as weighing large containers or vehicles.
3. Pneumatic Load Cells: Similar to hydraulic load cells, but they use air pressure. These are less common and typically used in specialized applications. Pneumatic load cells are often employed in environments where electrical equipment may pose a risk, such as in explosive atmospheres.
4. Capacitive Load Cells: These measure changes in capacitance caused by the deformation of a dielectric material under load. Capacitive load cells are less common but can be useful in specific applications where high sensitivity is required.

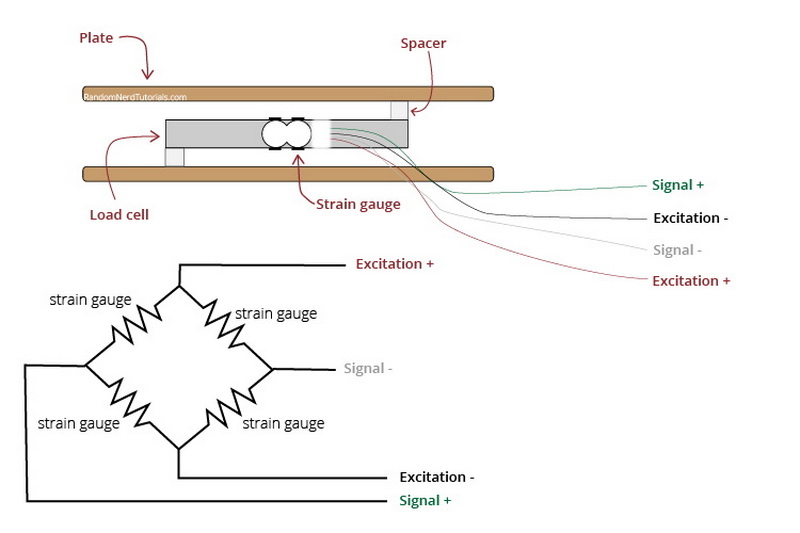

Load cells operate on the principle of converting mechanical force into an electrical signal. When a load is applied to the load cell, it deforms slightly. This deformation changes the electrical resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the load applied, allowing for accurate measurements.
To read the voltage from a load cell, you need to set it up correctly. Here’s a step-by-step guide:
You will need the following equipment:
◆ Load cell
◆ Power supply (excitation voltage)
◆ Multimeter or data acquisition system
◆ Connecting wires
◆ A stable platform for the load cell

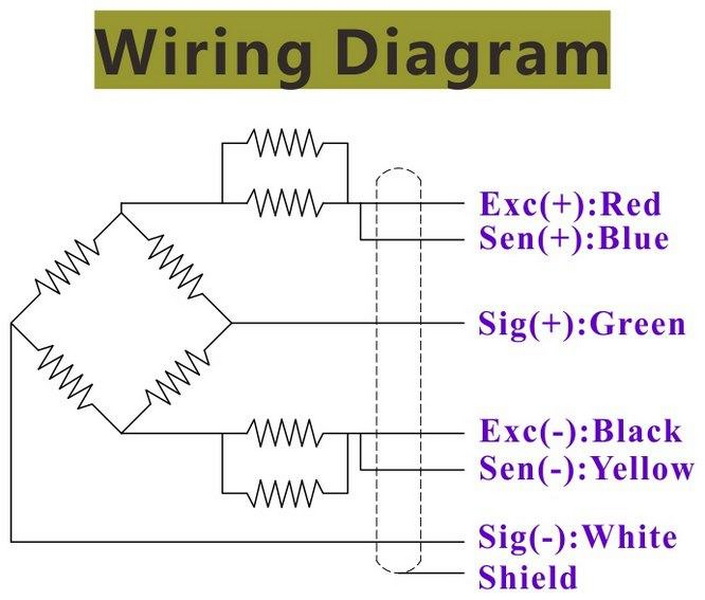

Load cells typically have four or six wires, depending on the configuration. The most common connections are:
◆ Excitation (+ and -): These wires provide power to the load cell.
◆ Signal (+ and -): These wires carry the output signal from the load cell.
Make sure to connect the wires according to the load cell’s datasheet. Incorrect connections can lead to inaccurate readings or damage to the load cell.
Load cells require an excitation voltage to operate. This voltage is usually between 5V and 15V, depending on the load cell specifications. Connect the excitation voltage to the appropriate terminals on the load cell.
Before taking measurements, it’s important to zero the load cell. This means ensuring that the output signal reads zero when no load is applied. You can do this by adjusting the zero balance on your measurement device or using software if you are using a data acquisition system.
Once the load cell is set up and zeroed, you can begin measuring the voltage output.

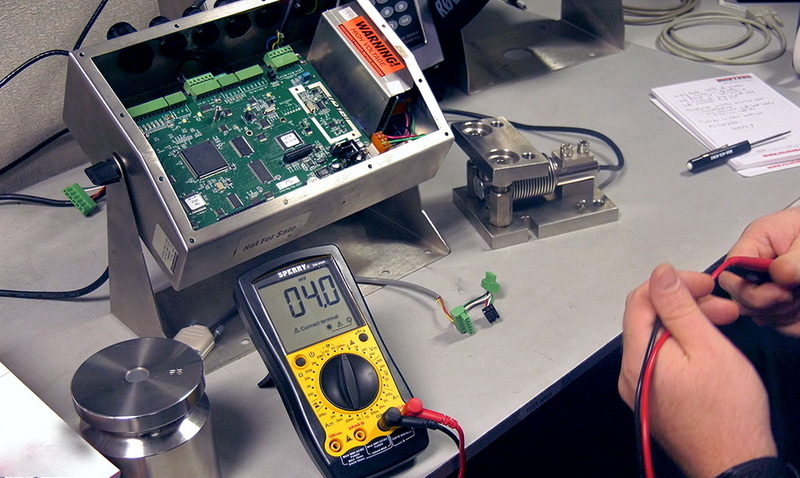

Set your multimeter to measure DC voltage. Connect the multimeter leads to the signal output terminals of the load cell. Ensure that the connections are secure to avoid any fluctuations in readings.
To test the load cell, apply a known weight to it. This could be a calibrated weight or any object with a known mass. The load should be applied gradually to avoid sudden shocks that could damage the load cell.
Observe the voltage reading on the multimeter. The output voltage will vary depending on the load applied. For example, if the load cell has a full-scale output of 2 mV/V and you are using a 10V excitation, the output at full load would be 20 mV.
To convert the voltage reading back to a load value, you can use the following formula:
This calculation allows you to determine the actual weight or force being measured by the load cell.
When working with load cells, you may encounter some common issues. Here are some troubleshooting tips:
If you notice that the readings fluctuate significantly, check the following:
◆ Ensure that the load cell is securely mounted and not subject to vibrations.
◆ Verify that all connections are tight and free from corrosion.
◆ Check the power supply to ensure it is stable and within the specified range.
If the load cell is not producing any output signal, consider these steps:
◆ Confirm that the excitation voltage is connected correctly.
◆ Inspect the load cell for any physical damage.
◆ Test the load cell with a different multimeter or data acquisition system to rule out equipment failure.
If the load cell readings do not match the expected values, it may need calibration. Calibration involves adjusting the output signal to match known weights. This process typically requires specialized equipment and should be performed according to the manufacturer’s guidelines.
For more complex applications, using a data acquisition system (DAQ) can enhance your ability to read load cell voltage. DAQ systems can provide real-time monitoring, data logging, and advanced analysis capabilities. They often come with software that allows for easy visualization of data, making it easier to interpret results.
Signal conditioning is an important step in ensuring accurate load cell measurements. Load cells produce very low voltage signals, which can be susceptible to noise and interference. Using an amplifier or signal conditioner can help boost the signal to a more manageable level, improving accuracy and reliability.
Temperature changes can affect the performance of load cells. Implementing temperature compensation techniques can help maintain accuracy across varying environmental conditions. This may involve using temperature sensors and adjusting the output based on temperature readings.
In applications where multiple load cells are used, such as in weighing scales or industrial applications, a multi-channel system can be beneficial. These systems allow for simultaneous monitoring of several load cells, providing a comprehensive view of the overall load being measured.
Load cells are used in a wide range of applications across various industries. Here are some common uses:
Load cells are widely used in industrial scales for weighing products, materials, and equipment. They provide accurate measurements essential for inventory management, shipping, and quality control.
In the medical field, load cells are used in devices such as patient scales and force measurement systems. Accurate weight measurements are crucial for patient care and monitoring.
Load cells are employed in automotive testing to measure forces during crash tests, component testing, and vehicle dynamics analysis. This data is vital for safety assessments and performance evaluations.
In research settings, load cells are used to measure forces in various experiments, from material testing to biomechanics. Their precision makes them invaluable tools for scientists and engineers.
Load cells are used in construction to monitor the weight of materials and equipment. They are also employed in structural health monitoring to assess the load-bearing capacity of buildings and bridges.
Reading load cell voltage is a fundamental skill for anyone working with these devices. By understanding the principles of operation, setting up the load cell correctly, and following the measurement process, you can obtain accurate readings for various applications. Troubleshooting common issues will also help ensure reliable performance.
With practice, you will become proficient in reading load cell voltage, allowing you to utilize these powerful tools effectively in your work. Whether you are in manufacturing, research, or any field that requires precise measurements, mastering load cell technology will enhance your capabilities and improve your results.
A load cell is a transducer that converts mechanical force into an electrical signal. It is commonly used in weighing applications to measure weight or force accurately.
To calibrate a load cell, you need to apply known weights and adjust the output signal to match these weights. This process may require specialized equipment and should follow the manufacturer's guidelines.
The output voltage of a load cell is typically measured in millivolts per volt (mV/V). For example, a load cell with a full-scale output of 2 mV/V and a 10V excitation would produce 20 mV at full load.
Yes, but you should ensure that the load cell is rated for outdoor use and is protected from environmental factors such as moisture, dust, and extreme temperatures.
If your load cell readings are inconsistent, check for secure mounting, verify connections, and ensure the power supply is stable. Additionally, consider environmental factors that may affect the readings.
