In the world of electronics and automation, load cells play a crucial role in measuring weight and force. Among the various types of load cells, the Phidgets button load cell stands out for its versatility and ease of use. This article will guide you through the process of reading data from a Phidgets button load cell, including setup, programming, and practical applications. We will also include images and videos to enhance your understanding of the topic.

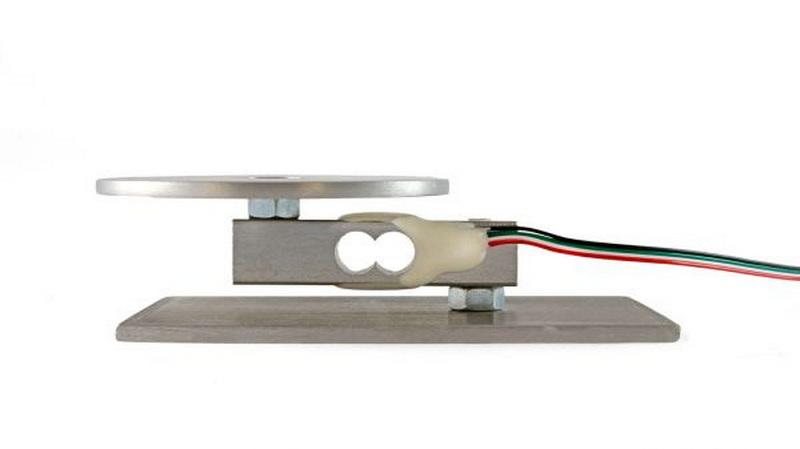

A load cell is a transducer that converts a force into an electrical signal. Load cells are widely used in various applications, including weighing scales, industrial automation, and robotics. The Phidgets button load cell is a specific type of load cell designed for applications where a button-like interface is required. It is compact, easy to integrate, and provides accurate measurements.
Load cells come in various types, including:
1. Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation.
2. Hydraulic Load Cells: These use fluid pressure to measure weight.
3. Pneumatic Load Cells: These use air pressure for measurement.
4. Button Load Cells: These are designed for applications where a small footprint is essential.
A Phidgets button load cell typically consists of the following components:

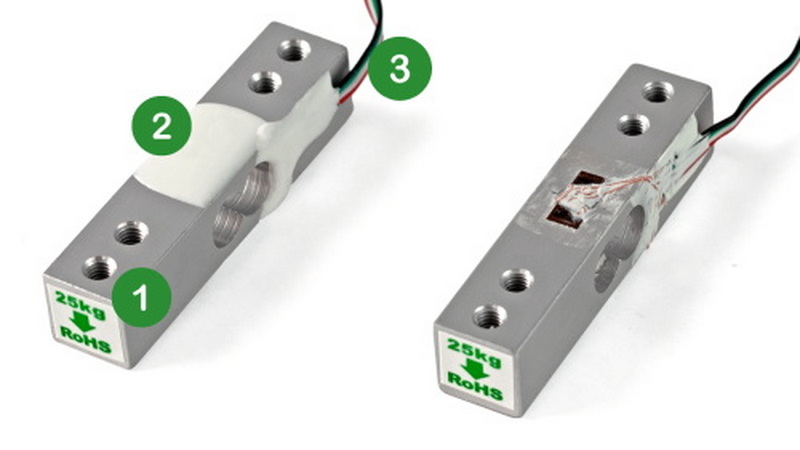

- Load Cell Element: The main component that measures force.
- Amplifier: Boosts the signal from the load cell for better accuracy.
- Interface Kit: Connects the load cell to a computer or microcontroller.
- Software: Used to read and interpret the data from the load cell.
To get started, you will need the following materials:
- Phidgets button load cell

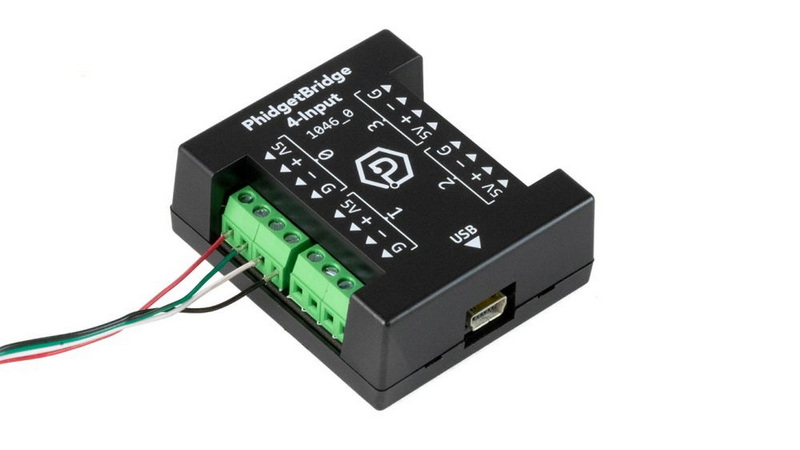

- Phidgets interface kit (e.g., PhidgetInterfaceKit 1046)
- USB cable
- Computer with Phidgets software installed
- Jumper wires (if necessary)
1. Connect the Load Cell:
- Connect the load cell to the interface kit using the provided terminals. Ensure that the connections are secure to avoid any signal loss.
2. Connect the Interface Kit to Your Computer:
- Use a USB cable to connect the Phidgets interface kit to your computer. The kit should be recognized automatically by the Phidgets software.
3. Install Phidgets Software:
- Download and install the Phidgets software from the official website. This software will allow you to configure and read data from the load cell.
4. Calibrate the Load Cell:
- Before using the load cell, it is essential to calibrate it. Place known weights on the load cell and record the readings. Adjust the calibration settings in the software until the readings match the known weights.
Once the load cell is set up, you can start programming it to read data. Phidgets provides libraries for various programming languages, including Python, Java, and C#.
- Import Libraries: The code begins by importing necessary libraries.
- Create Load Cell Object: A load cell object is created, and the device is opened for attachment.
- Set Gain: The gain is set to ensure accurate readings.
- Read Data: A loop continuously reads the weight from the load cell and prints it to the console.
Phidgets button load cells can be used in various applications, including:
1. Weighing Systems: Used in scales for accurate weight measurement.
2. Industrial Automation: Integrated into machines to monitor force and weight.
3. Robotics: Used in robotic arms to measure the weight of objects being lifted.
4. Research and Development: Employed in experiments requiring precise force measurements.
5. Medical Devices: Utilized in devices that require weight measurement for dosage or patient monitoring.
When working with Phidgets button load cells, you may encounter some common issues. Here are some troubleshooting tips:
1. Inaccurate Readings: Ensure that the load cell is calibrated correctly. Check the connections for any loose wires.
2. No Data Output: Verify that the interface kit is connected properly to the computer. Restart the Phidgets software if necessary.
3. Software Errors: Ensure that you are using the latest version of the Phidgets software. Check for any updates or patches.
4. Interference: If you experience erratic readings, check for electrical interference from nearby devices. Using shielded cables can help mitigate this issue.
Phidgets button load cells can be integrated with other sensors to create more complex systems. For example, combining a load cell with a temperature sensor can help monitor the weight of materials that change with temperature, such as liquids.
Load cells can also be used in control systems where feedback is necessary. For instance, in a robotic arm, the load cell can provide feedback on the weight of the object being lifted, allowing the system to adjust its grip accordingly.
Reading data from a Phidgets button load cell is a straightforward process that involves setting up the hardware, programming the device, and interpreting the data. With its compact design and ease of integration, the Phidgets button load cell is an excellent choice for various applications in electronics and automation. By following the steps outlined in this article, you can successfully implement a load cell in your projects and gain valuable insights from the data it provides.
