A load cell is a type of transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied to the load cell, it deforms slightly, and this deformation changes the resistance of the strain gauges, producing a measurable electrical signal.
1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are often used in scales and weighing systems.
2. Tension Load Cells: These measure the force applied in a tensile manner. They are commonly used in applications like hanging scales.
3. Bending Beam Load Cells: These are used in applications where the load is applied to a beam, causing it to bend. They are often used in industrial scales.
4. S-Type Load Cells: These can measure both tension and compression and are versatile for various applications.
To read load cell data using an Arduino, you will need the following components:
- Arduino Board: Any model will work, but the Arduino Uno is a popular choice.
- Load Cell: A 5kg or 10kg load cell is suitable for most projects.
- HX711 Amplifier Module: This module amplifies the small signal from the load cell and converts it to a digital signal that the Arduino can read.
- Breadboard and Jumper Wires: For making connections.
- Power Supply: Depending on your setup, you may need a power supply for the load cell.

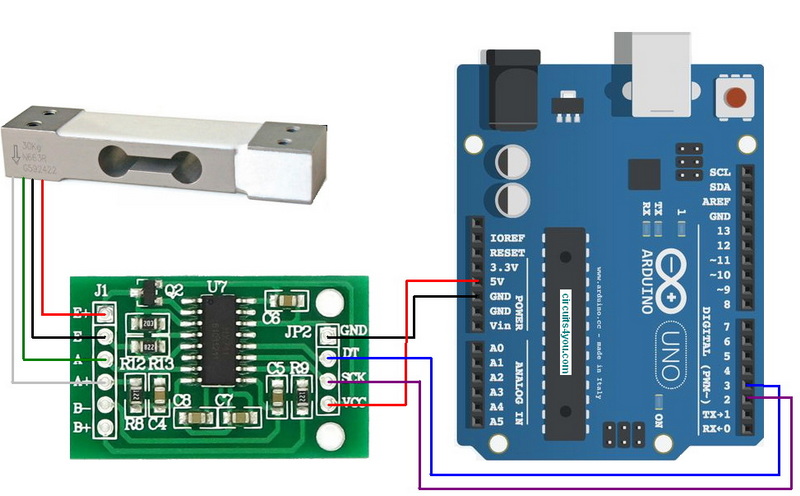

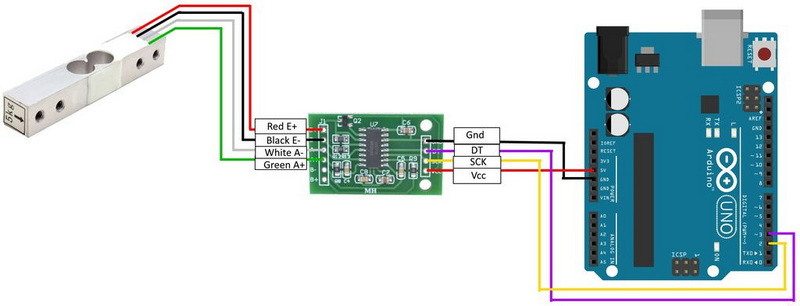

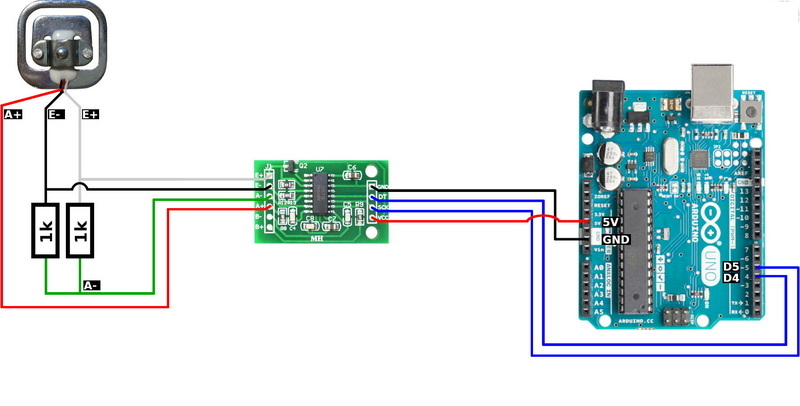

The first step is to connect the load cell to the HX711 module and then connect the HX711 to the Arduino. Here's a simple wiring diagram:
The load cell typically has four wires:
- Red: Excitation+ (E+)
- Black: Excitation- (E-)
- Green: Signal+ (S+)
- White: Signal- (S-)
Connect these wires to the HX711 module as follows:
- Red to E+
- Black to E-
- Green to S+
- White to S-
Next, connect the HX711 module to the Arduino:
- VCC to Arduino 5V
- GND to Arduino GND
- DT (Data) to Arduino digital pin 2
- SCK (Clock) to Arduino digital pin 3
Now that the hardware is set up, it's time to write the code to read the load cell data. You will need to install the HX711 library in your Arduino IDE. This library simplifies the process of reading data from the HX711 module.
1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. In the Library Manager, search for "HX711" and install the library by Bogdan Necula.
Before you can accurately measure weight, you need to calibrate the load cell. To do this, follow these steps:
1. Place a known weight on the load cell.
2. Modify the `scale.set_scale()` line in the code to match the known weight. For example, if you placed a 1 kg weight, you would set it as follows:
```cpp
scale.set_scale(2280.f); // Adjust this value based on your calibration
```
3. Upload the code to the Arduino and check the serial monitor to see if the readings match the known weight. Adjust the scale factor until the readings are accurate.

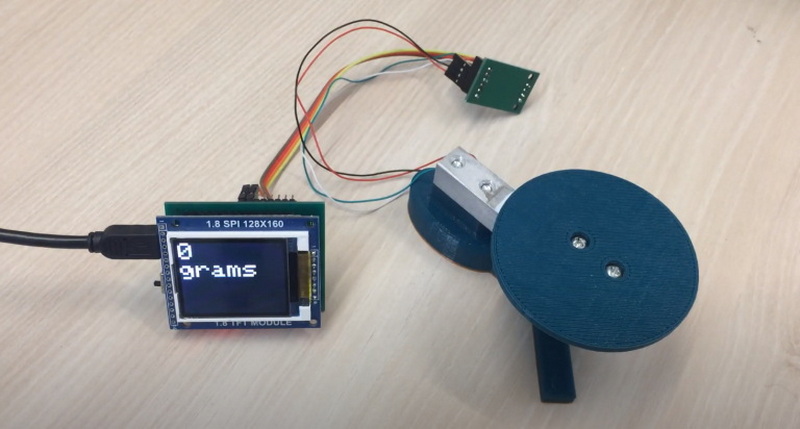

You can display the weight data on the Serial Monitor, as shown in the code above. However, if you want to display the data on an LCD or OLED screen, you can easily integrate those components into your project.
To use an LCD display, you will need an additional library. For a 16x2 LCD, you can use the LiquidCrystal library. Here's how to modify the code to display the weight on an LCD:
1. Connect the LCD to the Arduino.
2. Include the LiquidCrystal library in your code.
3. Modify the `setup()` and `loop()` functions to display the weight.
1. Inaccurate Readings: Ensure that the load cell is calibrated correctly. Check the connections and make sure the load cell is not damaged.
2. No Data on Serial Monitor: Verify that the correct pins are used in the code and that the Arduino is properly connected to your computer.
3. Fluctuating Readings: This can happen due to electrical noise. Make sure the connections are secure and consider adding capacitors to stabilize the readings.
4. Load Cell Not Responding: If the load cell does not respond, check the wiring and ensure that the HX711 module is powered correctly. Sometimes, a loose connection can cause the load cell to fail to read.
5. Weight Displayed is Negative: If you see negative values, it may indicate that the load cell is not tared correctly. Ensure that you call the `scale.tare()` function after setting up the load cell to reset the scale to zero.
Once you have mastered the basics of reading load cell data, you can explore more advanced applications. Here are a few ideas:
You can log the weight data to an SD card using an SD card module. This allows you to keep a record of weight measurements over time, which can be useful for monitoring changes in weight or for scientific experiments.
Using a wireless module like the ESP8266 or NRF24L01, you can send the weight data to a remote server or display it on a smartphone app. This can be particularly useful for applications where you need to monitor weight from a distance.
You can create an automated weighing system that triggers actions based on the weight measured. For example, you could control a motor to dispense a specific amount of material based on the weight detected.
Combine the load cell with other sensors, such as temperature or humidity sensors, to create a more comprehensive monitoring system. This can be useful in agricultural applications where you want to monitor the weight of produce along with environmental conditions.
You can build a smart scale that connects to the internet and provides real-time weight data to a web application. This can be useful for e-commerce applications where accurate weight measurements are crucial for shipping costs.
Reading load cell data using an Arduino is a straightforward process that can be applied to various projects, from simple weight scales to more complex systems. By following the steps outlined in this article, you can successfully set up a load cell with an Arduino, read the data, and display it. With some creativity, you can expand this project to include additional features, such as data logging or wireless transmission.
The maximum weight a load cell can measure depends on its specifications. Load cells come in various capacities, typically ranging from a few grams to several tons. Always check the manufacturer's specifications for the load cell you are using.
To check if your load cell is functioning correctly, you can perform a simple test by applying a known weight and observing the readings on the Arduino. If the readings are consistent and match the known weight, the load cell is likely working properly.
Yes, you can use multiple load cells with one Arduino, but you will need to use multiple HX711 modules, as each HX711 can only read one load cell at a time. You can then read the data from each HX711 in your code.
A load cell is a specific type of force sensor that converts force or weight into an electrical signal. While all load cells are force sensors, not all force sensors are load cells. Force sensors can include various types of sensors that measure force in different ways.
To improve the accuracy of load cell measurements, ensure proper calibration, minimize electrical noise, and use stable power supplies. Additionally, consider using a higher-quality load cell and HX711 module for better precision.
